IMA Motor Power Cable (Engine Compartment Branch)
>>
Connectors and Harnesses
Connectors and Harnesses

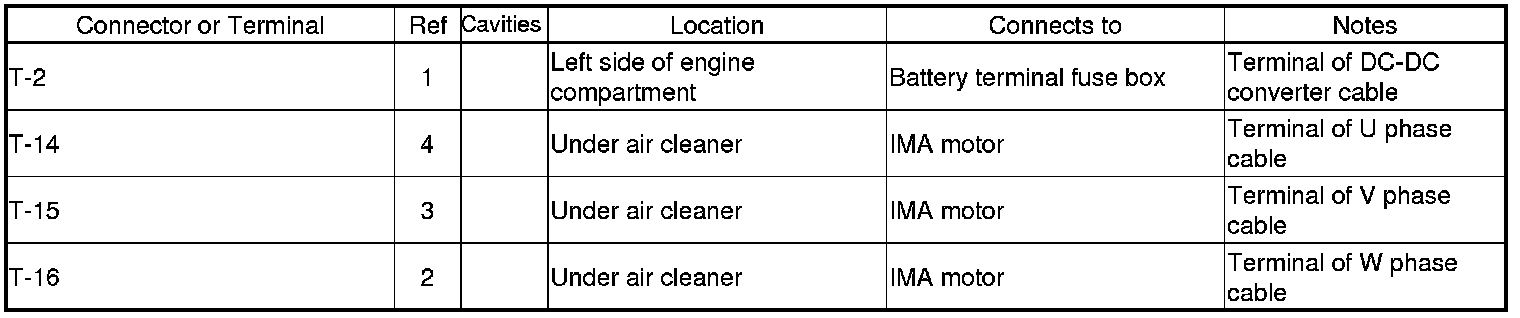

Connector and Harness Locations

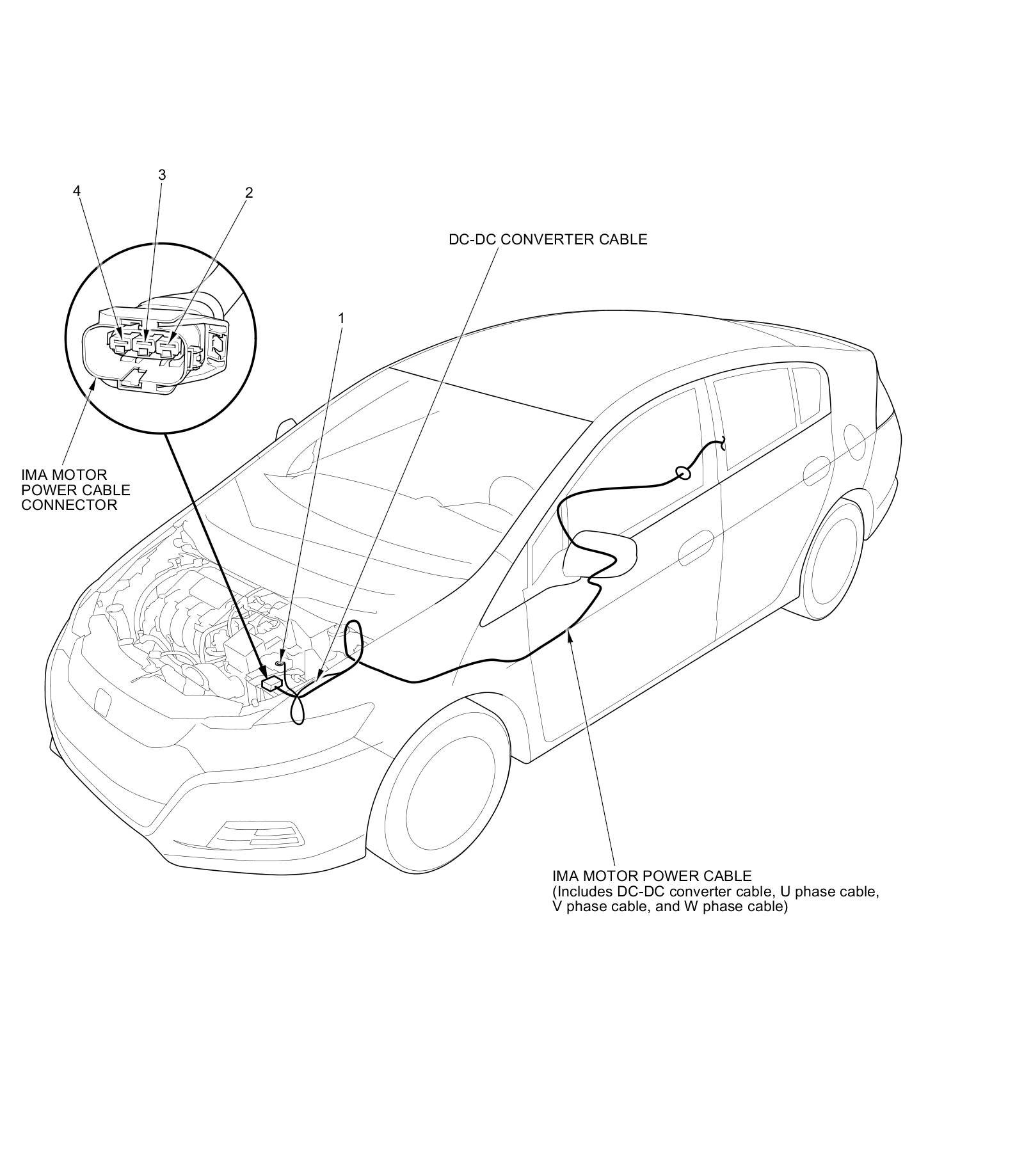

IMA Motor Power Cable (Engine compartment branch)
