Left Engine Compartment Wire Harness

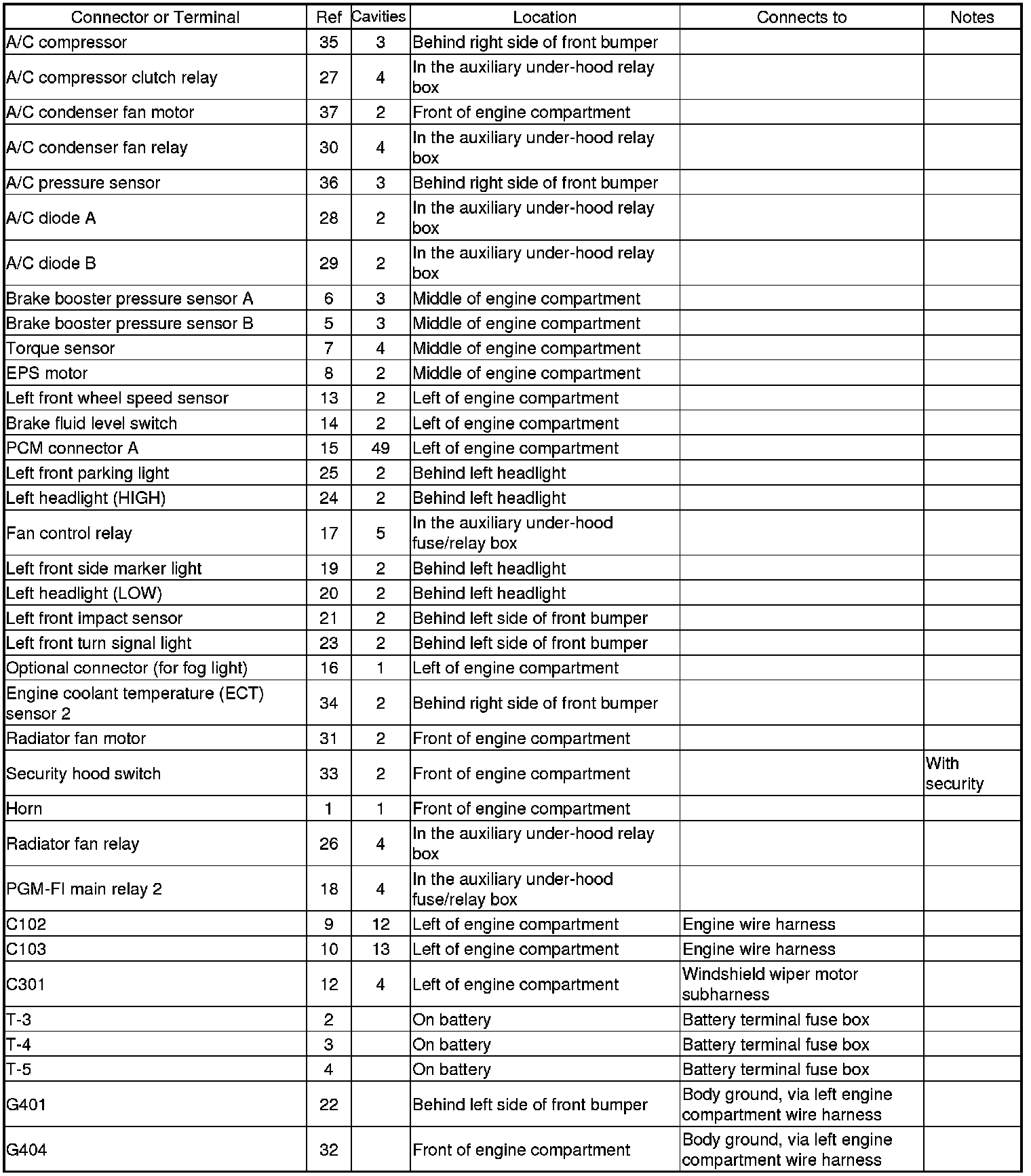

Connector and Harness Locations

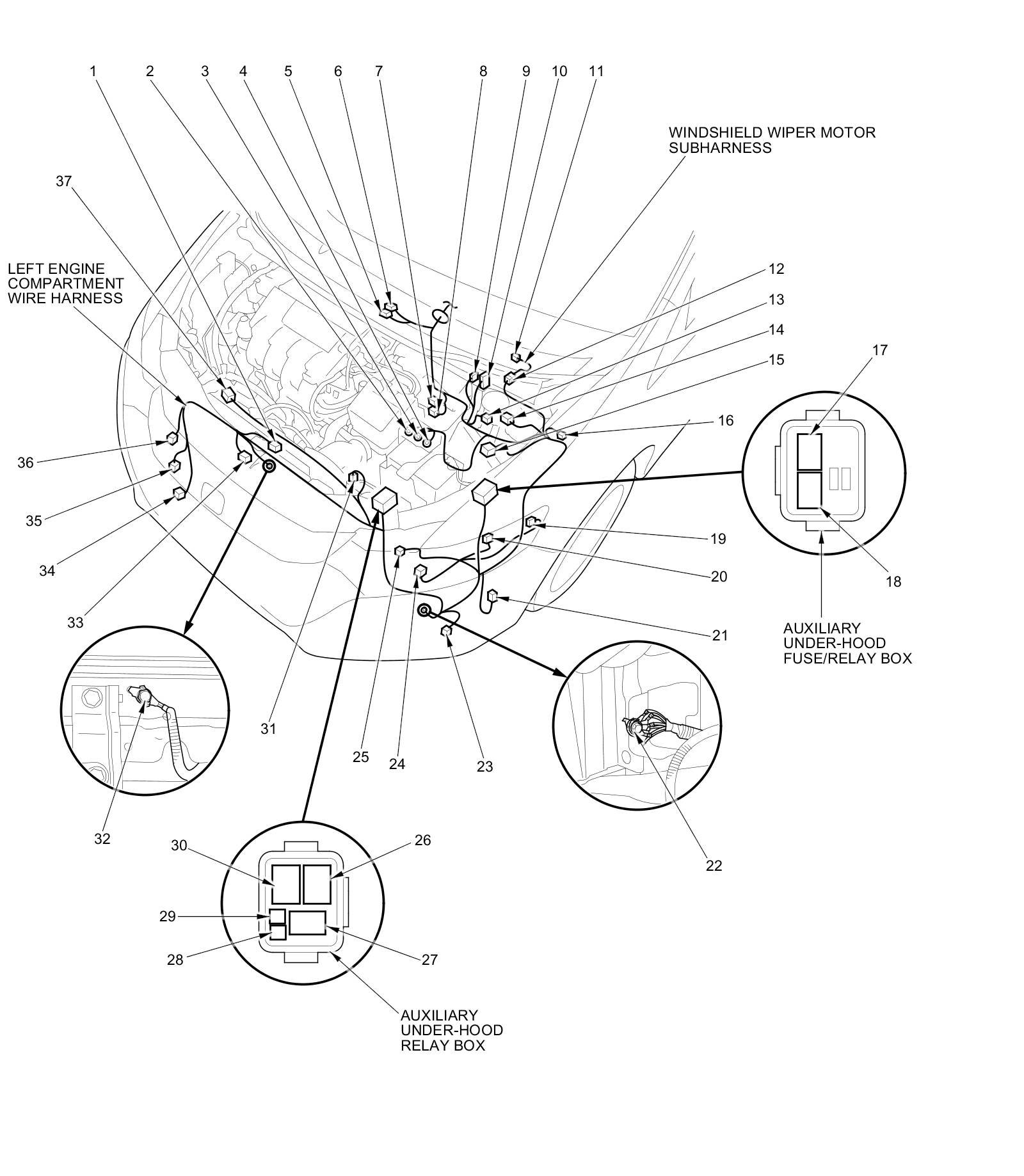

Left Engine Compartment Wire Harness (Engine compartment branch)

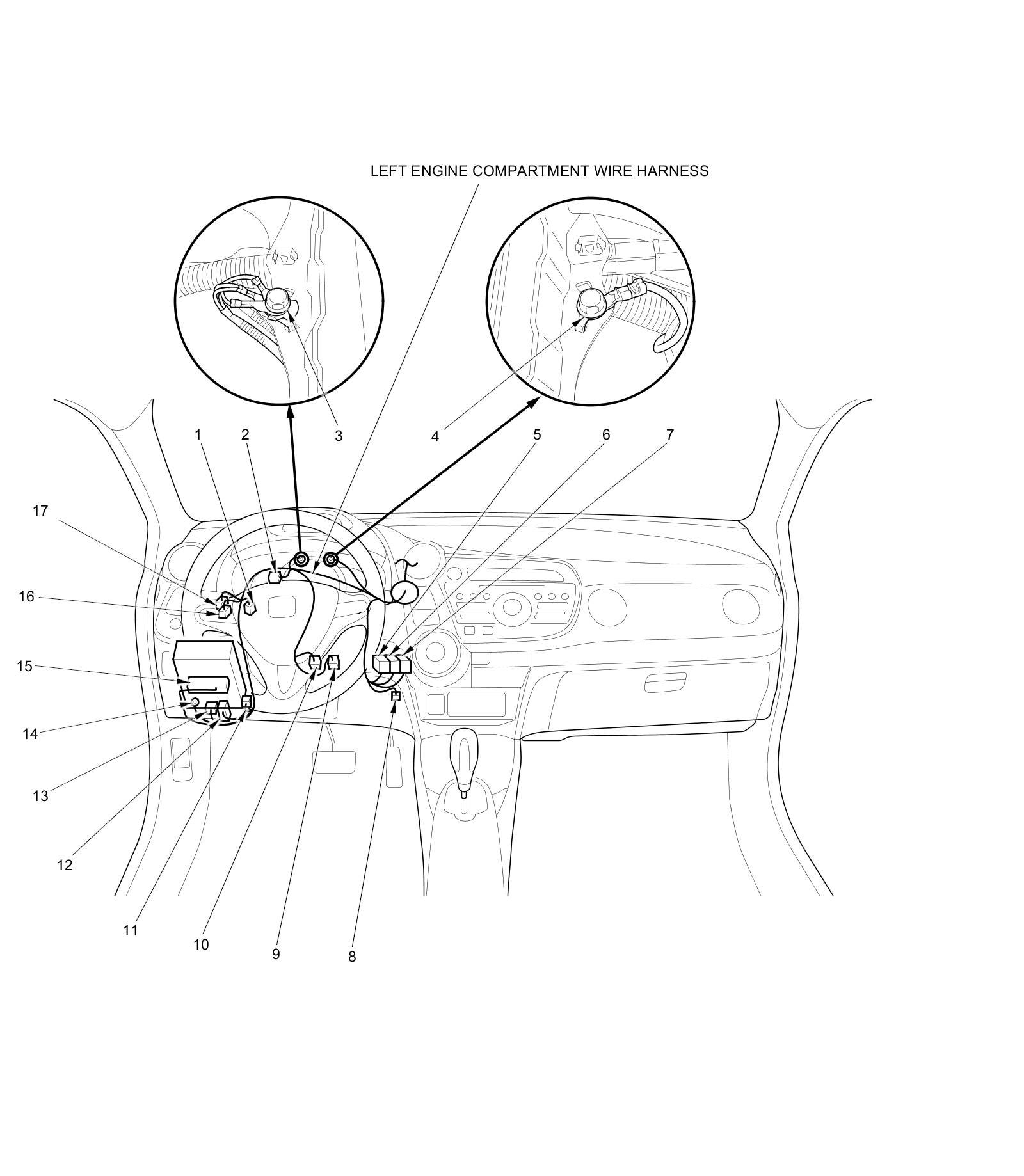

Left Engine Compartment Wire Harness (Dash branch)
