Home >> Honda >> 2012 >> Insight L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Harness >> Right Engine Compartment

Right Engine Compartment

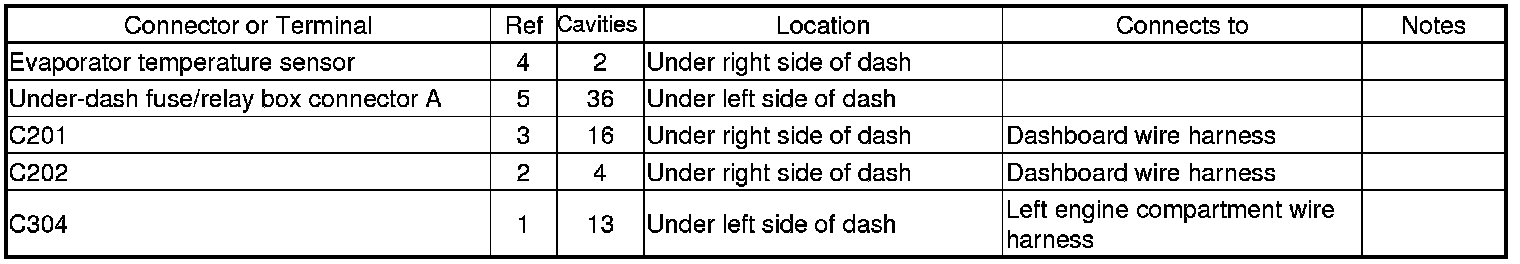

Connector and Harness Locations

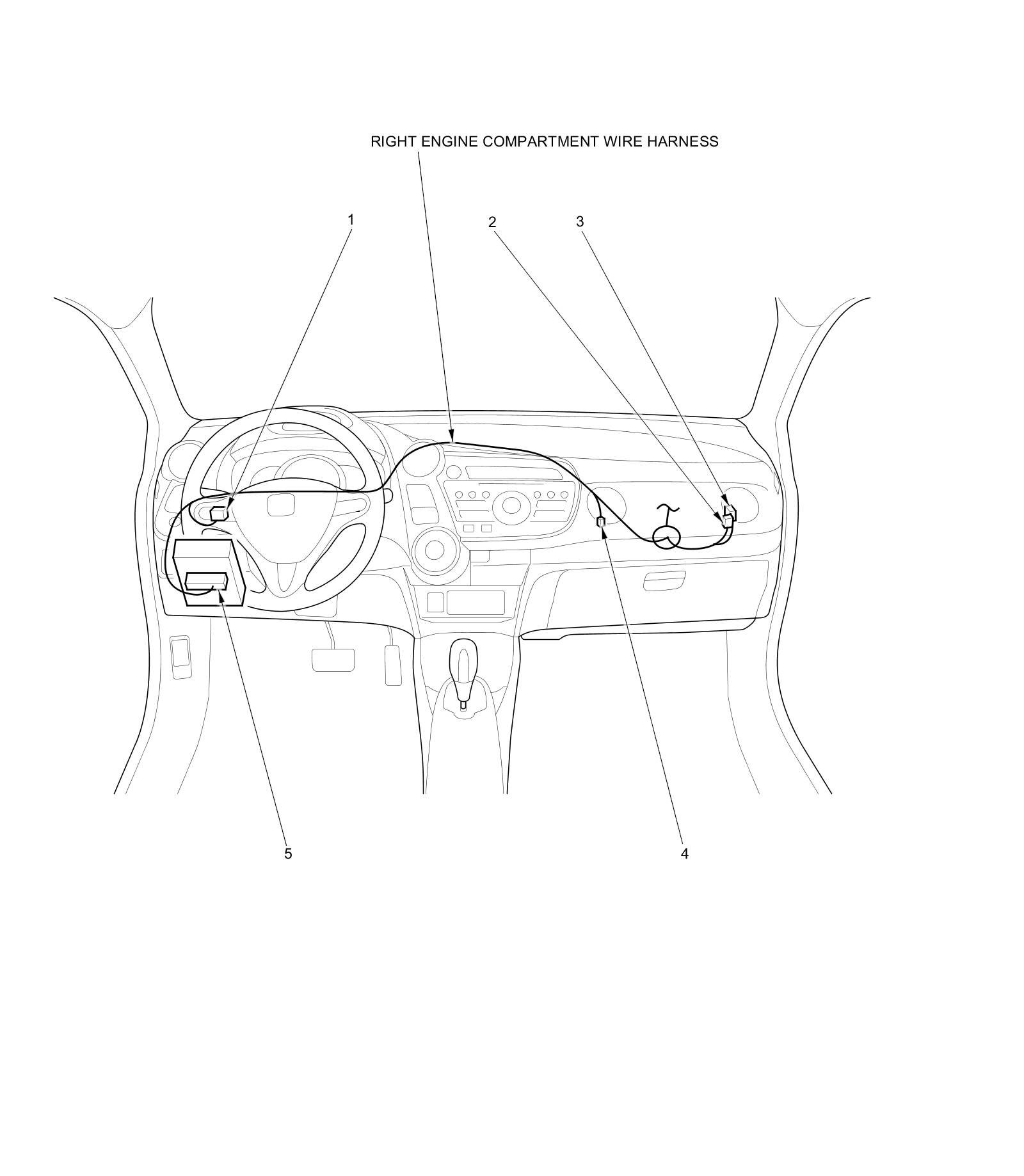

Right Engine Compartment Wire Harness (Engine compartment branch)










Right Engine Compartment Wire Harness (Dash branch)
