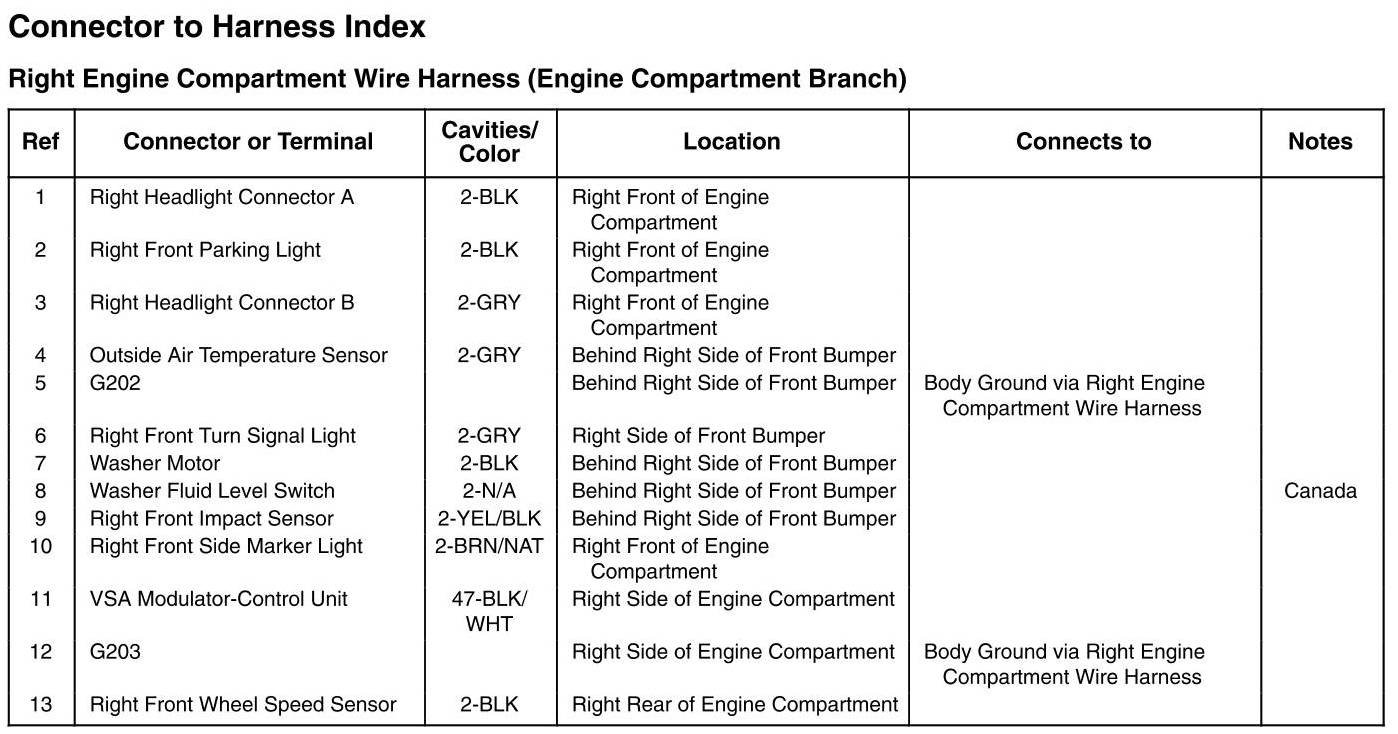

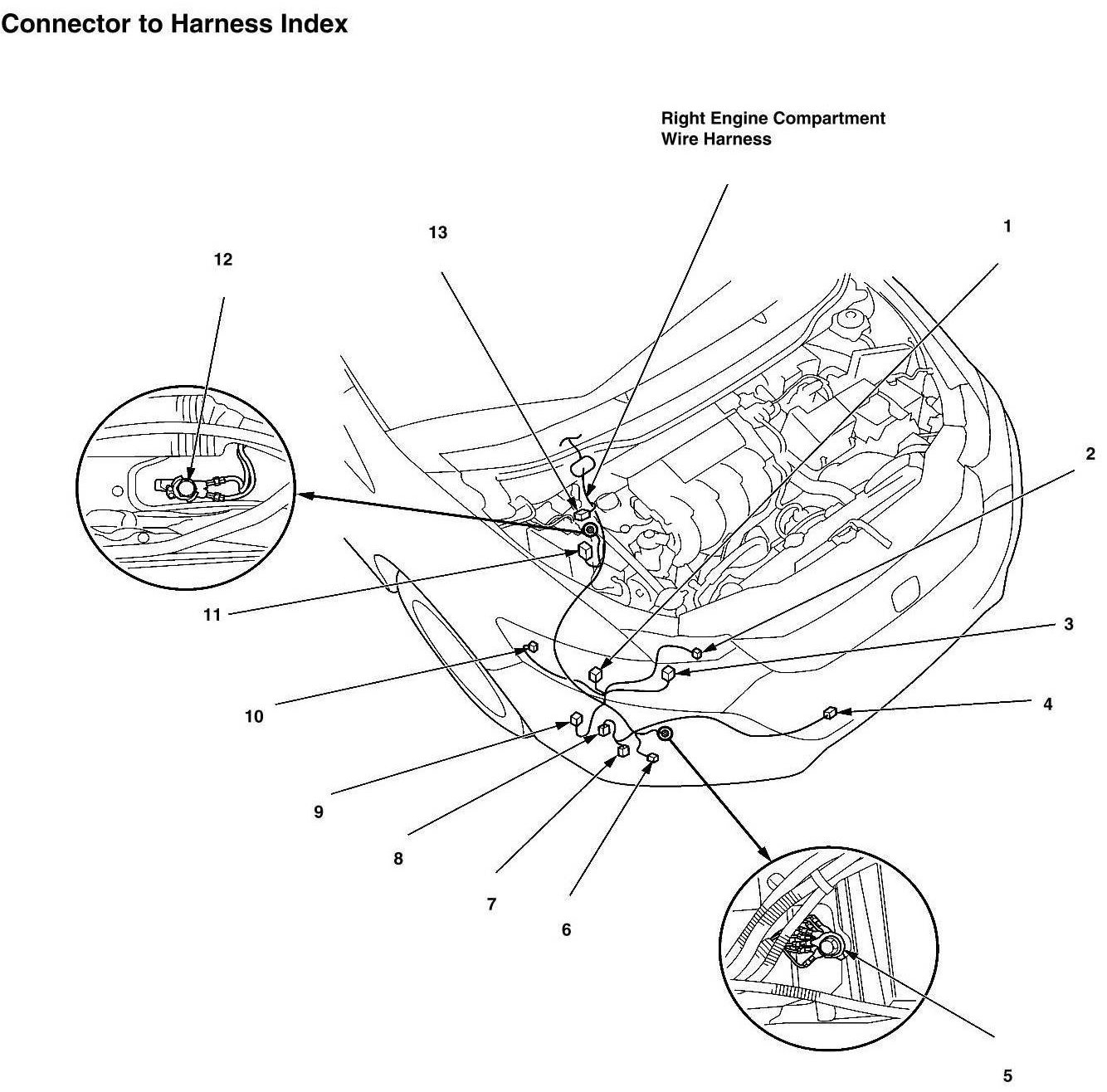

Right Engine Compartment Wire Harness (Engine Compartment Branch)
Right Engine Compartment Wire Harness (Engine Compartment Branch)
