Emergency Procedures
Based on discussions with rescue professionals, we recommend that emergency response personnel follow standard procedures developed by their own organization for assessing situations and dealing with potential hazards. Given our knowledge of Honda hybrids, we also recommend that you use the procedures outlined in this section.
VEHICLE FIRE

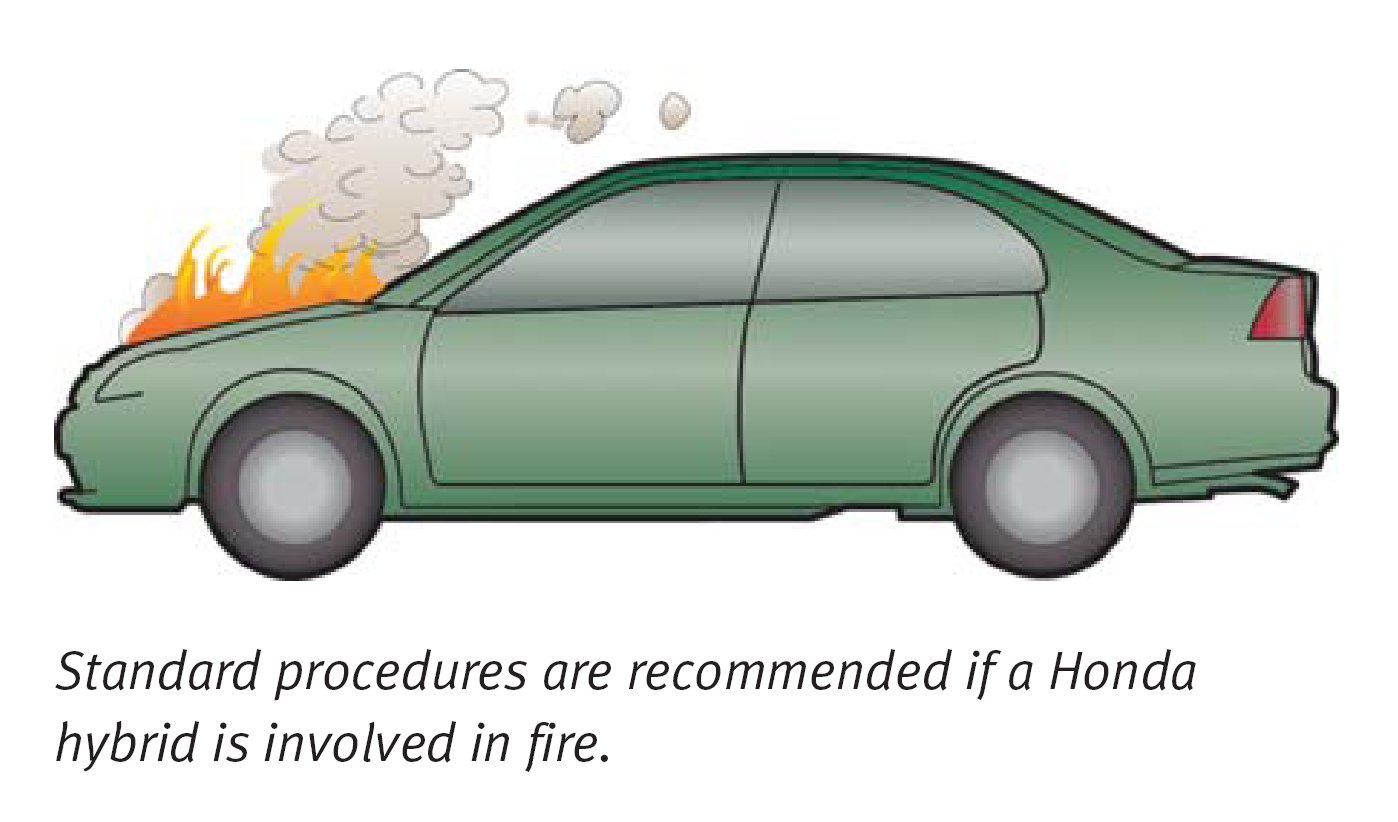

There are no unusual hazards if a Honda hybrid or the high-voltage battery box is involved in a fire. It should be noted, however, that extremely high temperatures (320-356°F; 160-180°C) can cause undeployed airbags to deploy.
If the 2012 Civic Hybrids Li-Ion battery box is engulfed in flames, or temperatures reach above 266�F (130�C), a pressure relief valve will open and release pressure, so the battery should not explode. However, the contents will burn, giving off gases that can cause irritation if inhaled. To extinguish a burning battery, the manufacturer recommends CO2 or an abundance of water.
SUBMERGED OR PARTIALLY SUBMERGED VEHICLE

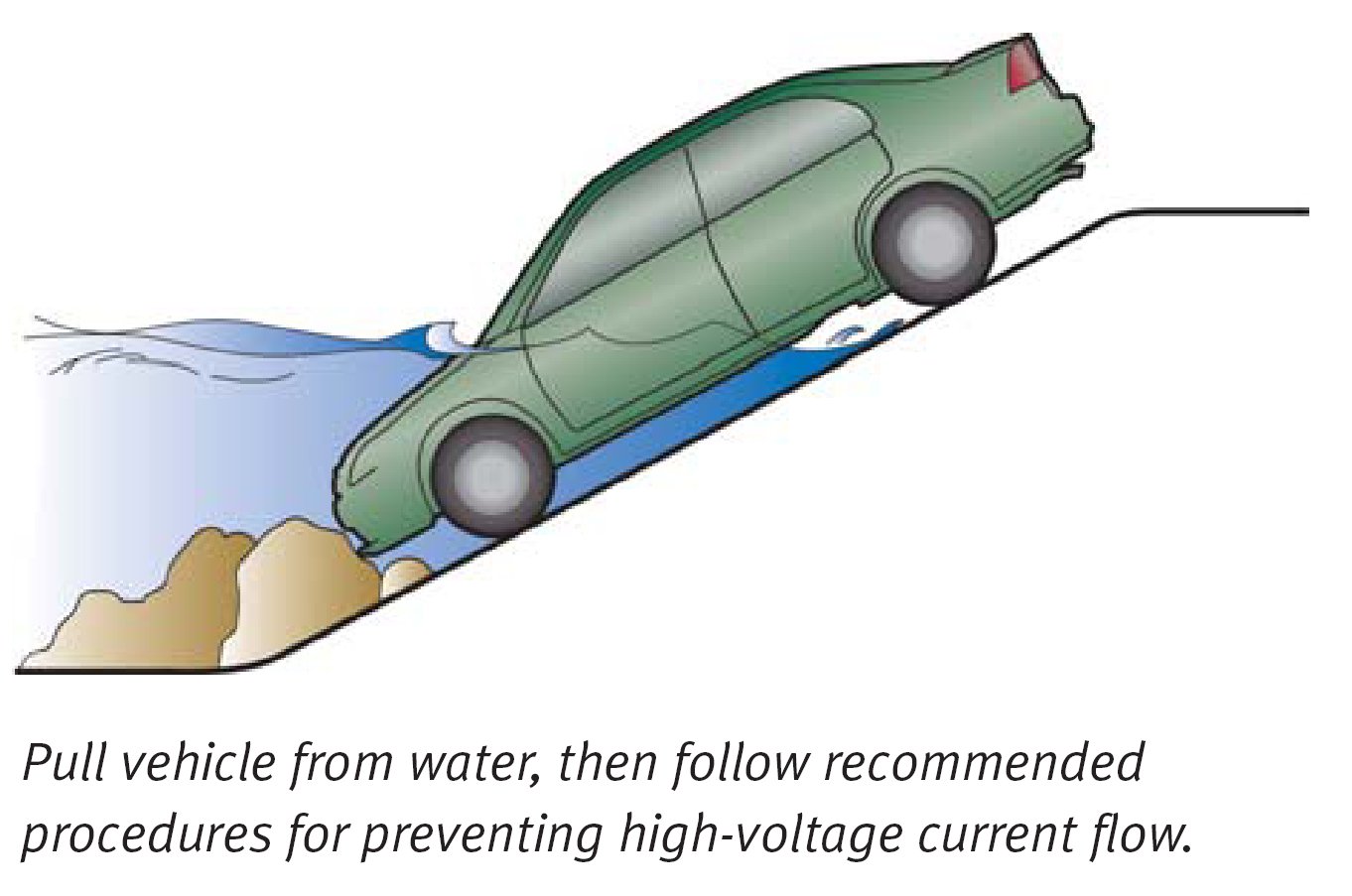

Pull the vehicle out of the water, then use one of the procedures described below for preventing electric current from flowing through the high-voltage cables. There is no risk of electric shock from touching the car's body or framework in or out of the water.
PREVENTING CURRENT FLOW THROUGH HIGH-VOLTAGE CABLES
Before attempting to rescue occupants or move a damaged Honda hybrid, you should reduce the potential for current to flow from the electric motor or the battery module through the high-voltage cables.
There are two recommended methods for preventing current flow. They are discussed below.
BEST METHOD FOR PREVENTING HIGH-VOLTAGE CURRENT FLOW (ALL MODELS)

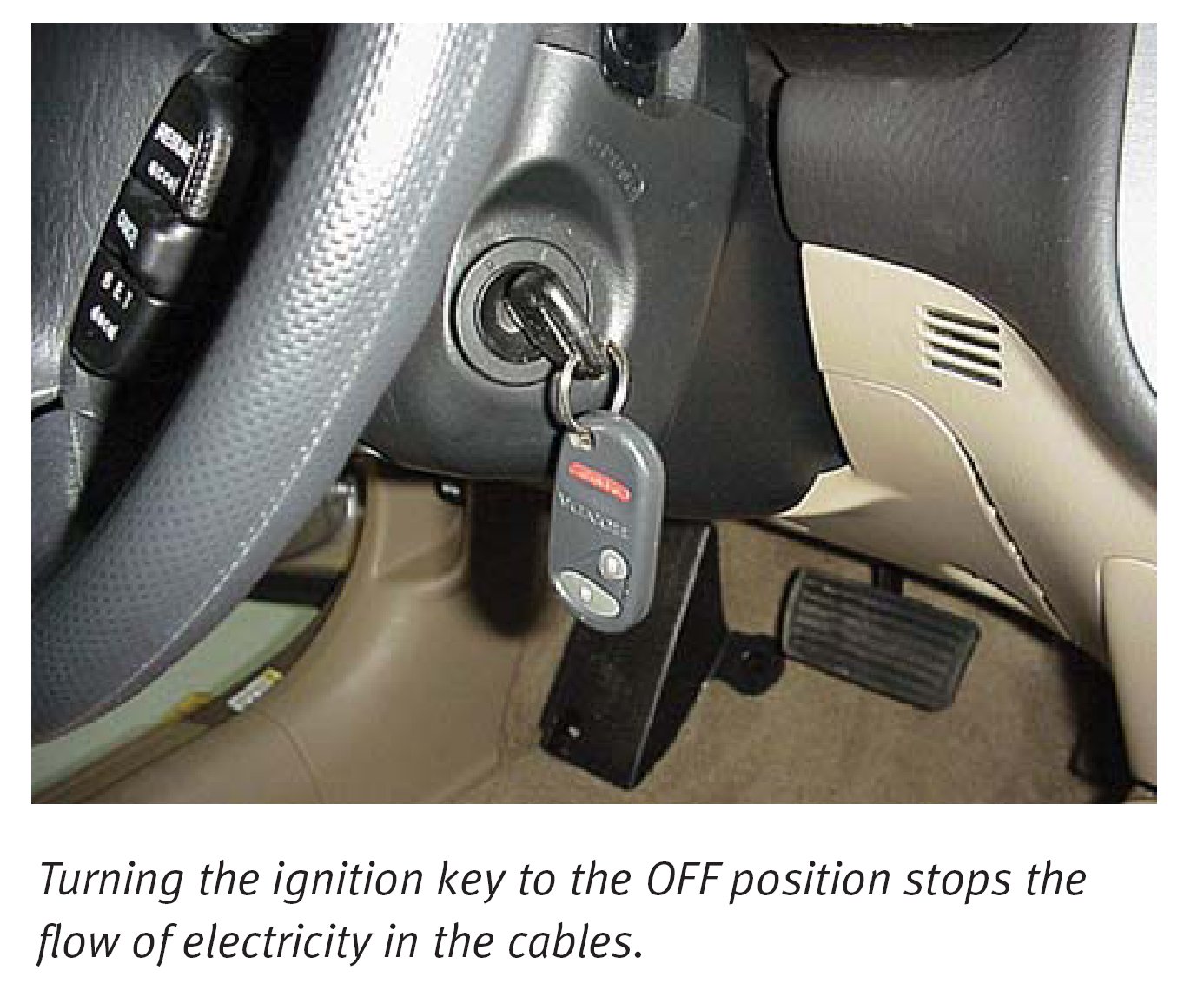

Turn the ignition switch off.
This simple action turns off the engine and the electric motor, preventing current flow into the cables. It also turns off power to the airbags and the seat belt tensioners.
After you turn the ignition switch off, remove the key so the car cannot be accidentally restarted.
SECOND-BEST METHOD FOR PREVENTING HIGH-VOLTAGE CURRENT FLOW (ALL MODELS EXCEPT 2010-2012 INSIGHTS AND CR-Zs)
Remove the main fuse, and cut both negative 12-volt battery cables. Removing the main fuse turns off the engine and the electric motor, preventing current flow from the motor into the cables. It also cuts power to the airbags and the seat belt tensioners.
Cutting the negative cables on the 12-volt battery cuts power to the high-voltage battery controllers, preventing current from flowing into the cables from the high-voltage battery.
1. Locate the 12-volt battery and cut the negative cables with diagonal cutters.
2. Locate the underhood fuse box, and remove the cover (see model-specific for fuse box locations).

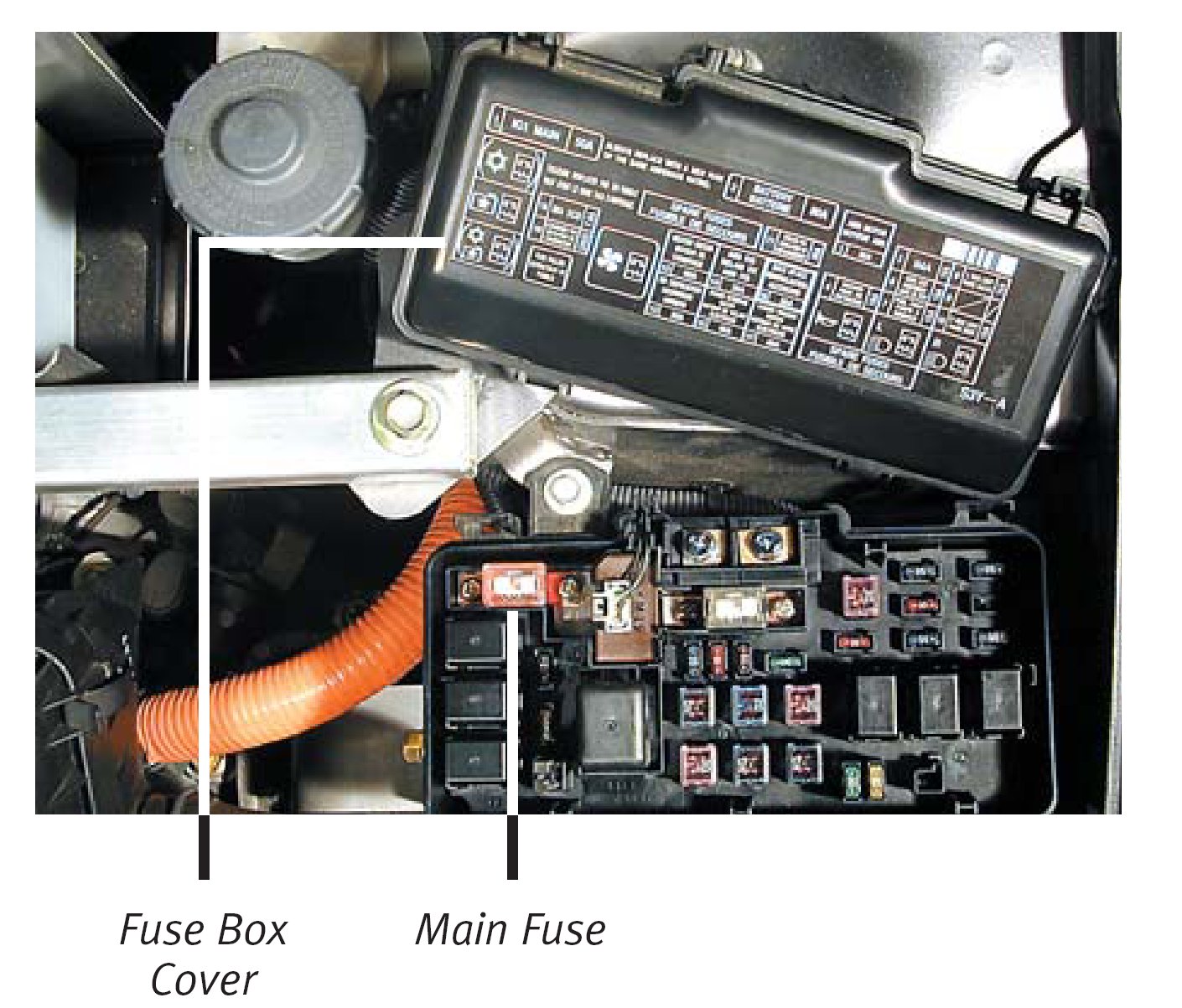

3. Locate the main fuse by referring to the diagram on top of, or inside, the fuse box cover. (The Insight fuse box is shown here only as an example. See the model-specific for photos of the Civic and Accord Hybrid fuse boxes.)

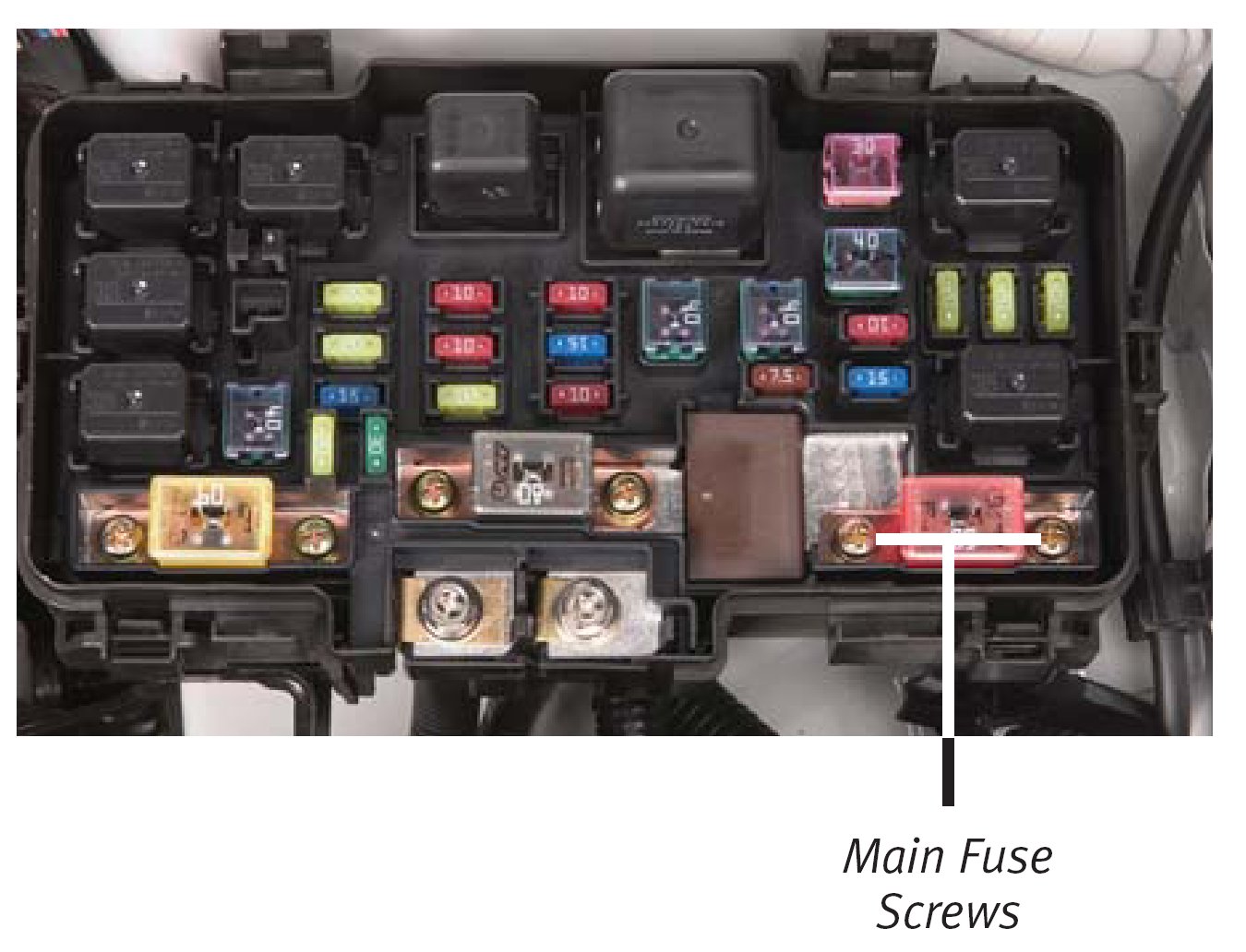

4. Using a Phillips screwdriver, unscrew the main fuse assembly and remove it from the box. (The Civic Hybrid main fuse screws are shown here as an example. See model-specific pages for location of the main fuse screws in the Insight and Accord Hybrid.)
NOTE: If you cannot perform either method to stop the engine and prevent current flow into the high-voltage cables, use extreme care, do not cut into the cables, and do not touch damaged cables as they may be hot.
SECOND BEST METHOD FOR PREVENTING HIGH VOLTAGE CURRENT FLOW (2010-2012 INSIGHT AND CR-Z)
Cut the negative 12 volt battery cable, then cut or disconnect the DC to DC converter cable at the positive battery terminal.
Together, cutting the 12-volt negative cable and cutting or disconnecting the DC to DC converter cable turns off the engine and the electric motor and cuts power to the high-voltage system controllers. This stops the flow of current into the high-voltage cables and cuts power to the airbags and the seat belt tensioners.

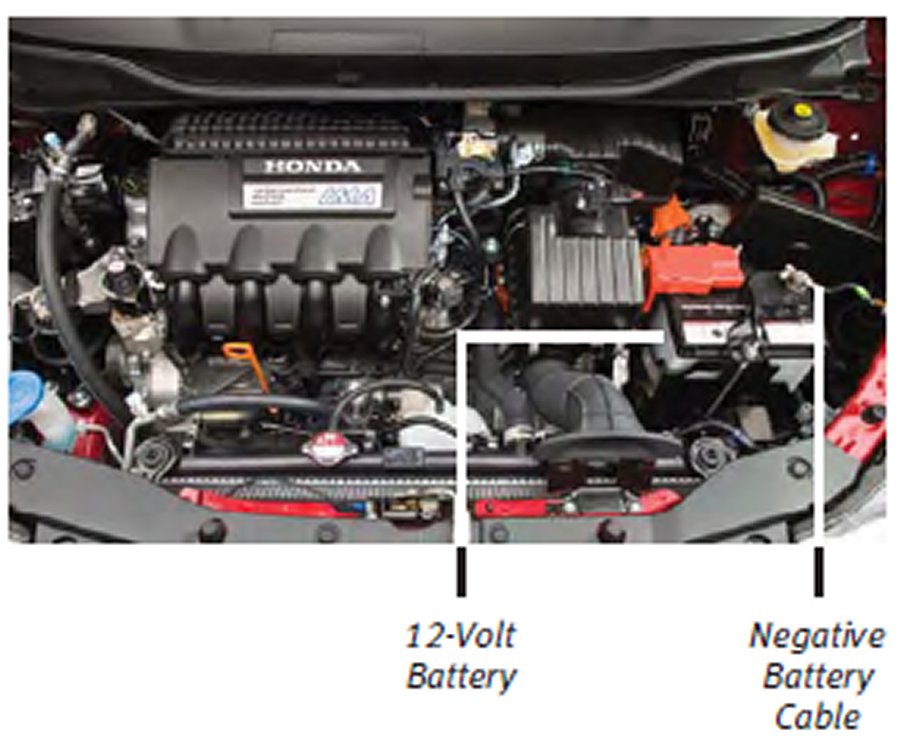

1. Locate the 12 volt battery and cut the negative battery cable.

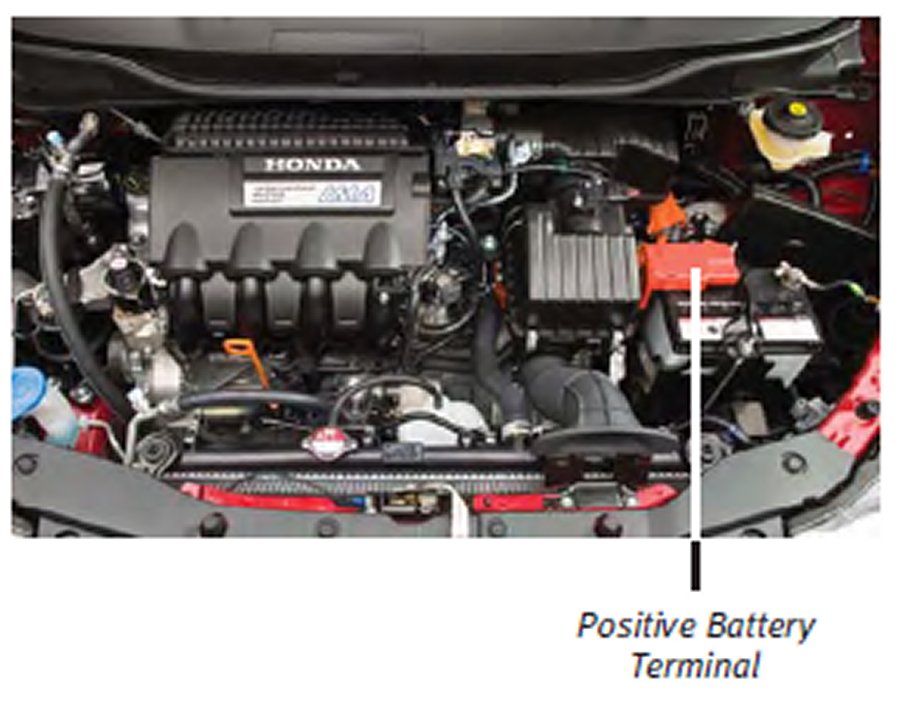

2. Locate the positive battery terminal and remove the cover.

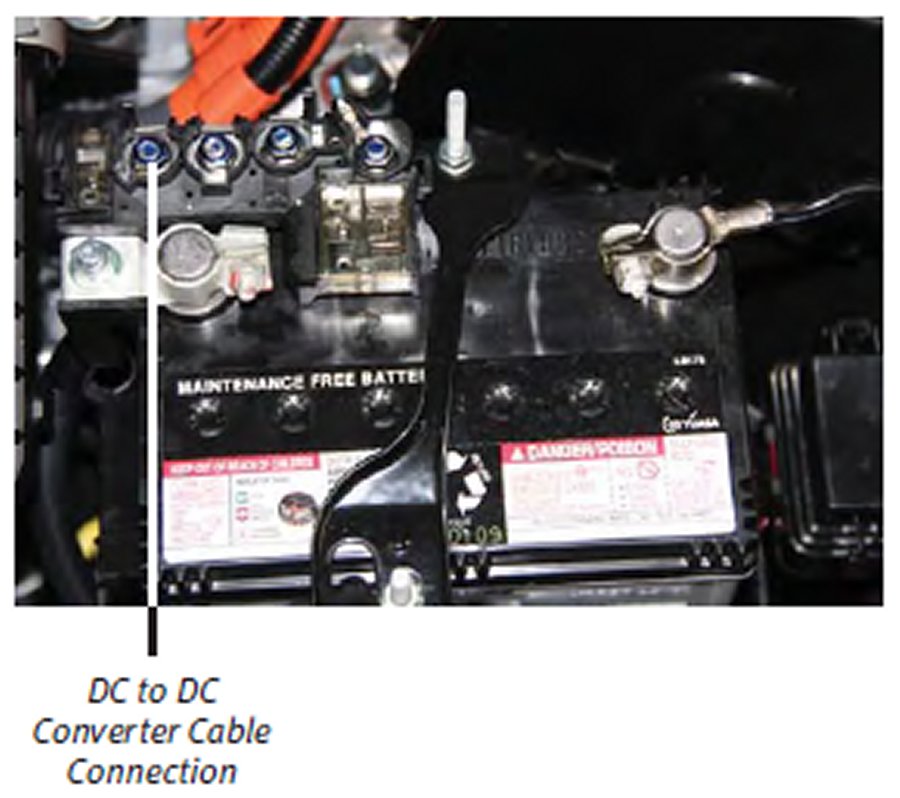

3. Cut or disconnect the DC to DC converter cable.
EXTRICATING OCCUPANTS
If cutters or spreaders are needed to allow occupants to be rescued, make sure to stay within the cut zones recommended. Extricating Occupants
MOVING AND TOWING A HONDA HYBRID
If a disabled vehicle needs to be moved a short distance (to the side of the road, for example), and the car can still roll on the ground, the easiest way is to shift the transmission into neutral and manually push the vehicle.
To transport a vehicle away from an emergency location, a flatbed truck should be used if the vehicle might be repaired. If a flatbed is not available, the vehicle should be towed by wheel-lift equipment with the front wheels off the ground. Do not use sling-type towing equipment unless the car has been damaged beyond repair.
