IPU Module Air Duct Removal/Installation

IPU Module Air Duct Removal/Installation

1. Remove the cargo floor lid, the IPU duct cover, and the cargo area side trim panel.

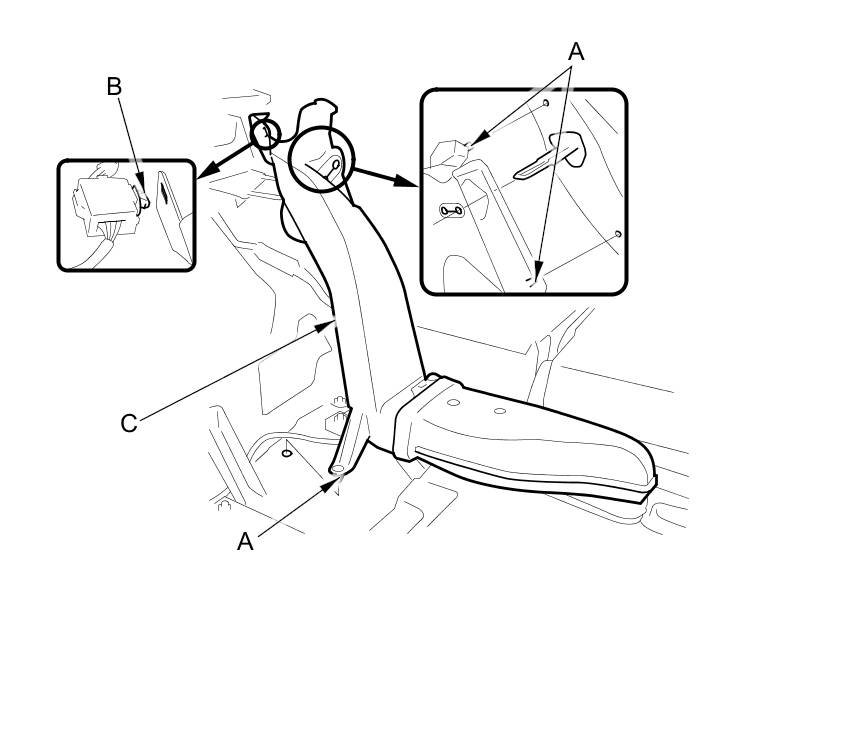

2. Remove the clips (A, B) and the IPU module air duct (C).









3. Install the parts in the reverse order of removal.
