Turn Signal/Hazard Warning Lights (MICU) Input Test

Turn Signal/Hazard Warning Lights (MICU) Input Test

NOTE: Before testing, check the No. 1 (15 A), No. 22 (7.5 A), No. 23 (10 A), and No. 60 (IGN) (50 A) fuses in the under-dash fuse/relay box.

1. Turn the ignition switch to LOCK (0).

2. Remove the fuse access panel Fuse Access Panel Removal / Installation, and remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal / Installation.

3. Disconnect the under-dash fuse/relay box connectors A, B, C, E, K, M, N, Q, and W.

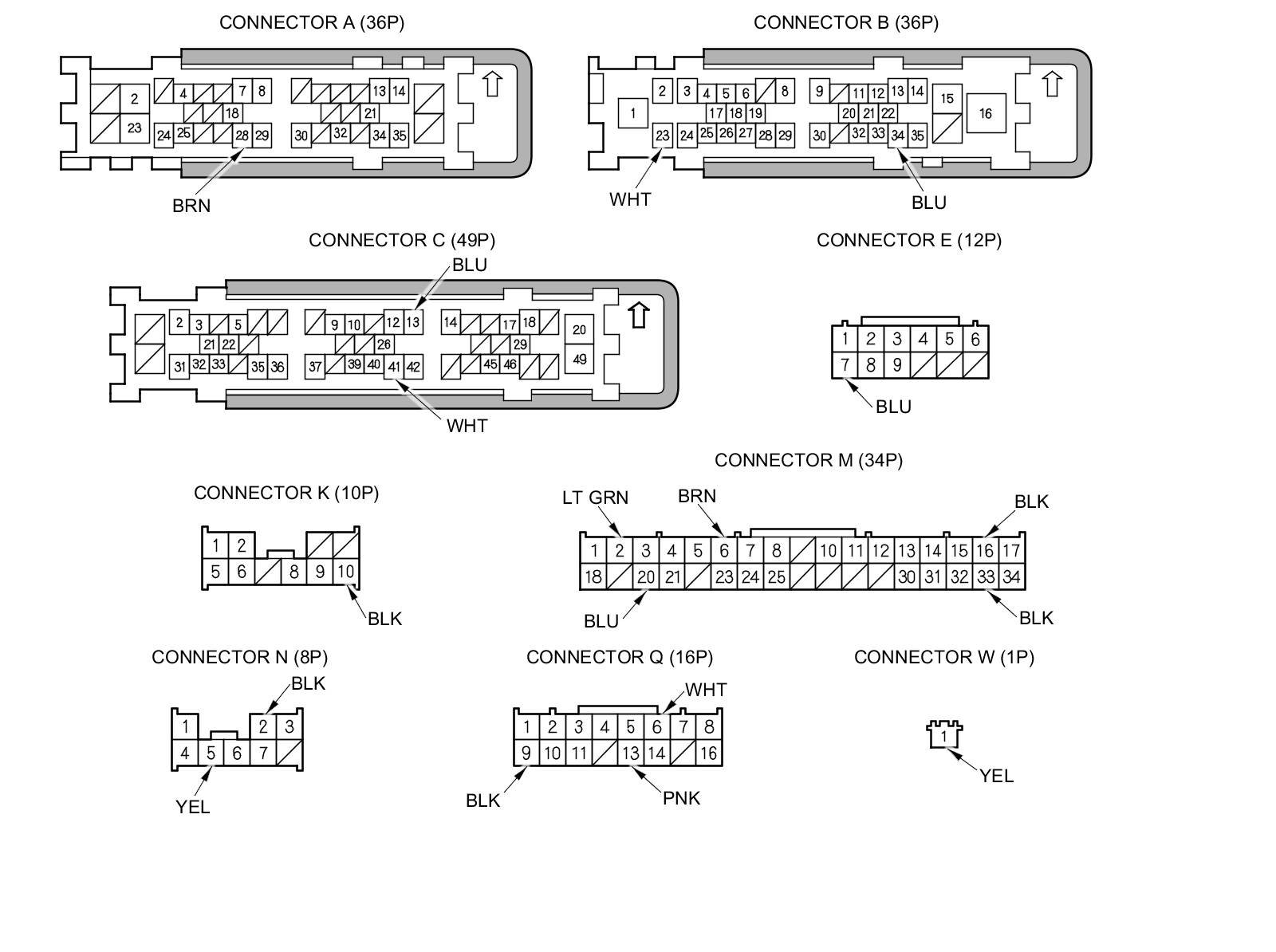

NOTE: All connector views are shown from wire side of female terminals.

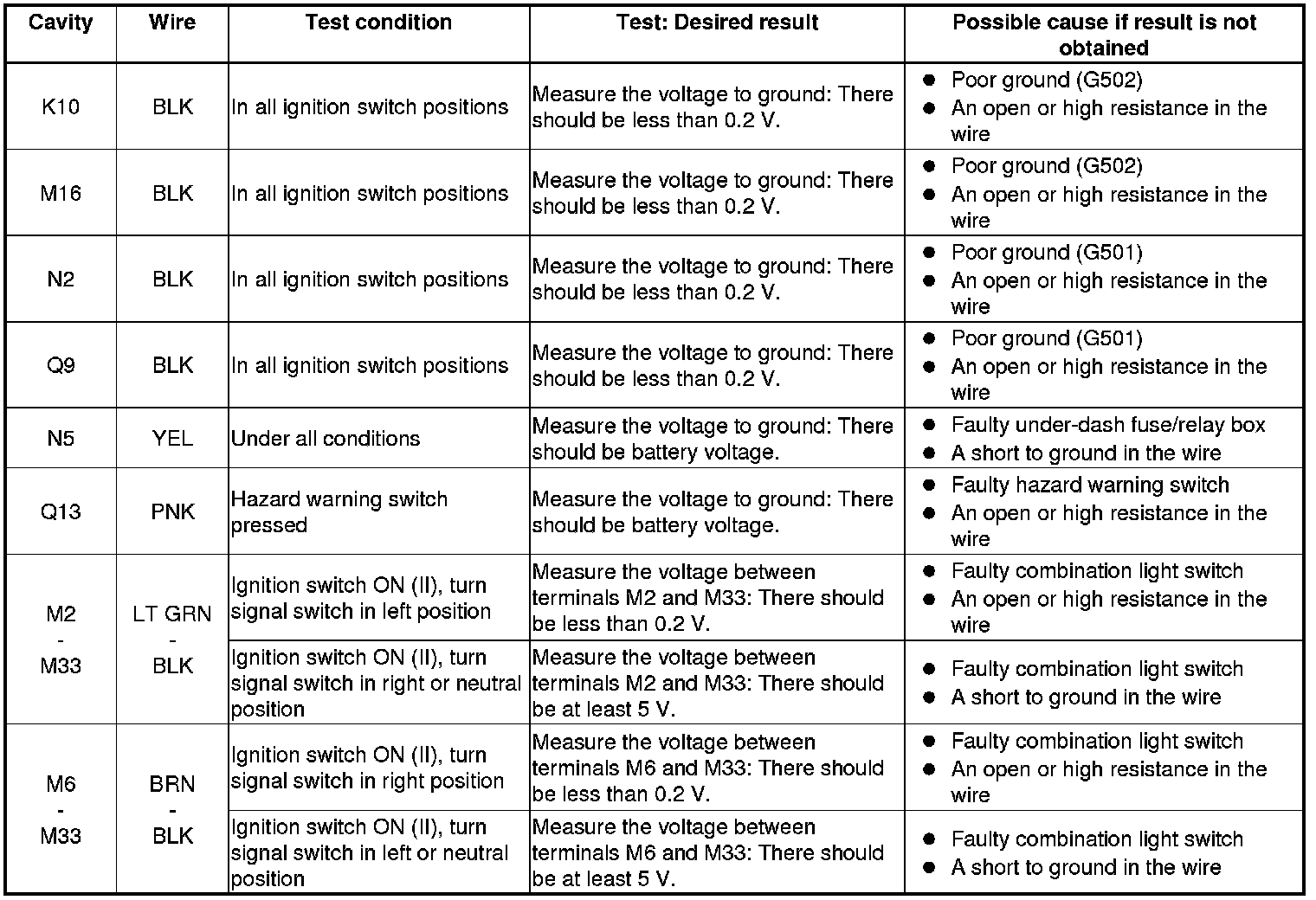

4. With the connectors still disconnected, do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.










5. Reconnect the connectors to the under-dash fuse/relay box, and do the following input tests:

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the MICU must be faulty; replace the under-dash fuse/relay box:
- USA model Under-Dash Fuse/Relay Box Removal and Installation (USA Models)
- Canada model Under-Dash Fuse/Relay Box Removal and Installation (Canada Models)
