Solar Sensor: Testing and Inspection

Sunlight Sensor Test

NOTE: Before testing the sensor, check for climate control DTCs.

1. Remove the sunlight sensor Service and Repair.

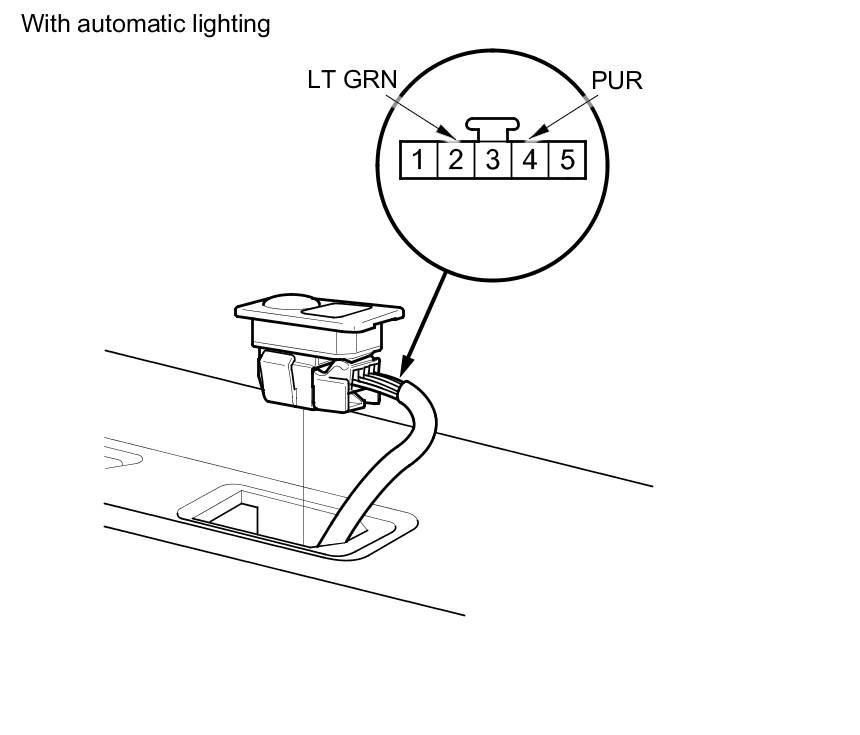

2. Turn the ignition switch to ON (II). Measure the voltage between the terminals with the (+) probe on terminal No. 4 (with automatic lighting) or No.1 (without automatic lighting) and the (-) probe on terminal No. 2 with the connector connected.

NOTE: The voltage readings will not change under the light of a flashlight or a fluorescent lamp.

Voltage should be:

- 3.56 V with no sunlight or sensor covered up.
- Less than 3.56 V with sunlight on sensor (depending on sunlight intensity).

3. If the voltage is not as specified, replace the sunlight sensor Service and Repair.
