Hazard Warning Switch: Service and Repair

Hazard Warning Switch Test/Replacement

1. Remove the center panel.

- With audio-navigation unit Audio-Navigation Unit Removal/Installation
- With audio unit Audio Unit Removal / Installation

2. Remove the two screws and the hazard warning switch (A).

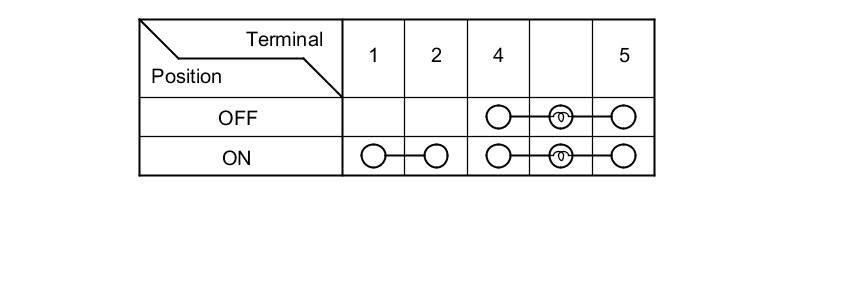

3. Check for continuity between the terminals in each switch position according to the table.






4. If the continuity is not as specified for terminals No. 1 and No. 2, replace the switch (A). If the continuity is not as specified for terminals No. 4 and No. 5, replace the bulb (B).





5. Install the hazard warning switch in the reverse order of removal.
