Seat Position Sensor: Service and Repair

Driver's Seat Position Sensor Replacement

Removal

NOTE: Do not turn the ignition switch to ON (II), and do not connect the battery cable while removing the driver's seat position sensor.

1. Do the 12 volt battery terminal disconnection procedure, then wait at least 3 minutes before starting work.

2. Raise the driver's seat all the way up.

3. Remove the outer recline cover.

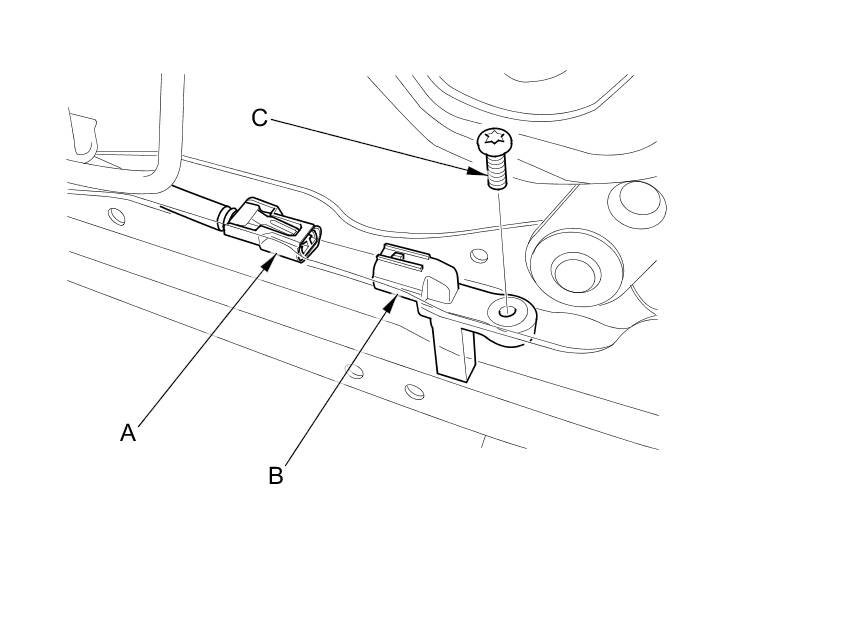

4. Disconnect the driver's seat position sensor subharness 2P connector (A) from the driver's seat position sensor (B).





5. Remove the TORX bolt (C) using a TORX T30 bit, then remove the driver's seat position sensor.

Installation

NOTE:

- Be sure to install the harness so it does not pinched or interfere with other parts.
- Do not turn the ignition switch to ON (II), and do not connect the battery cable while installing the driver's seat position sensor.

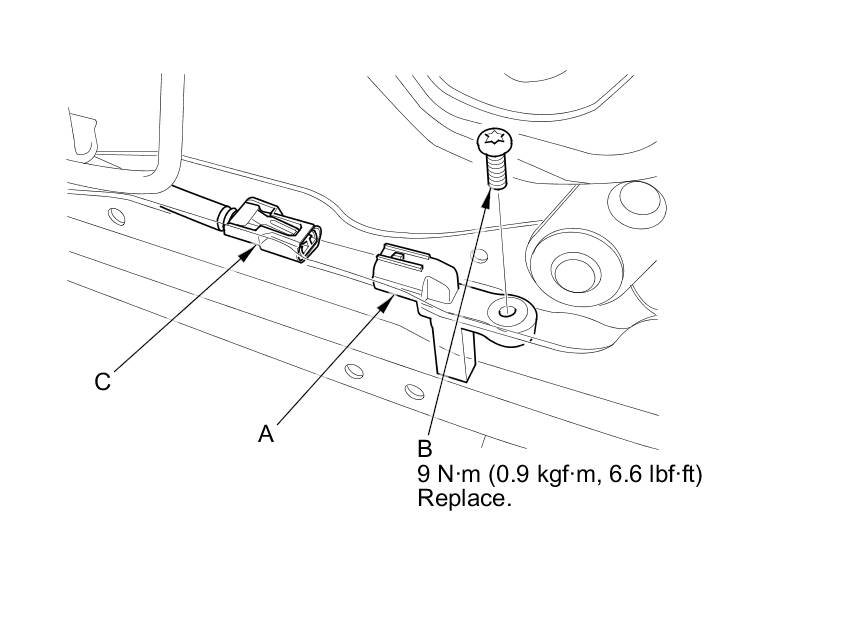

1. Install the driver's seat position sensor (A) with a new TORX bolt (B), using a TORX T30 bit.





2. Connect the driver's seat position sensor subharness 2P connector (C) to the driver's seat position sensor.

3. Install the outer recline cover.

4. Do the 12 volt battery terminal reconnection procedure.

5. Clear any DTCs with the HDS.

6. Check the operation of the driver's seat position sensor with the HDS Testing and Inspection.

7. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
