Insight L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Continuously Variable Transmission/Transaxle, CVT
>>

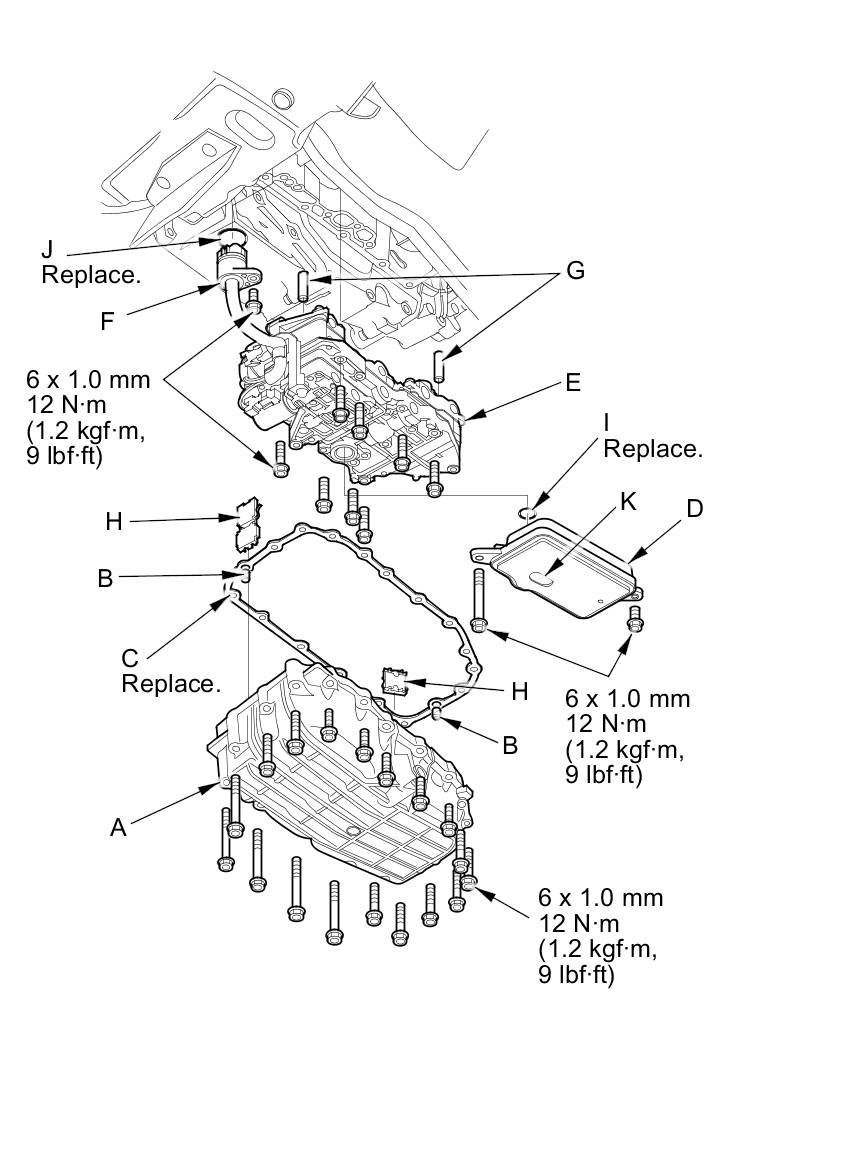

Fluid Pan, CVT
Fluid Pan, CVT
Tighten them to the specified torque in a crisscross pattern in at least two or three steps.
