CVT Housing Driven Pulley Shaft Bearing Removal/Installation

CVT Housing Driven Pulley Shaft Bearing Removal/Installation

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Oil Seal Driver Attachment, 64 x 72 mm 07JAD-PN00100
- Snap Ring Pliers 07LGC-0010100

1. Expand the snap ring using snap ring pliers, then push the driven pulley shaft bearing (A) out using the 15 x 135L driver handle and the 67 x 72 mm oil seal driver attachment. Do not remove the snap ring unless it is necessary to clean the groove in the transmission housing.





2. Check the driven pulley shaft bearing for wear or damage, and replace it if necessary.

3. Expand the snap ring using snap ring pliers, and install the driven pulley shaft bearing part-way into the transmission housing.

4. Release the pliers, then push the driven pulley shaft bearing down into the transmission housing until the snap ring snaps in place around it.

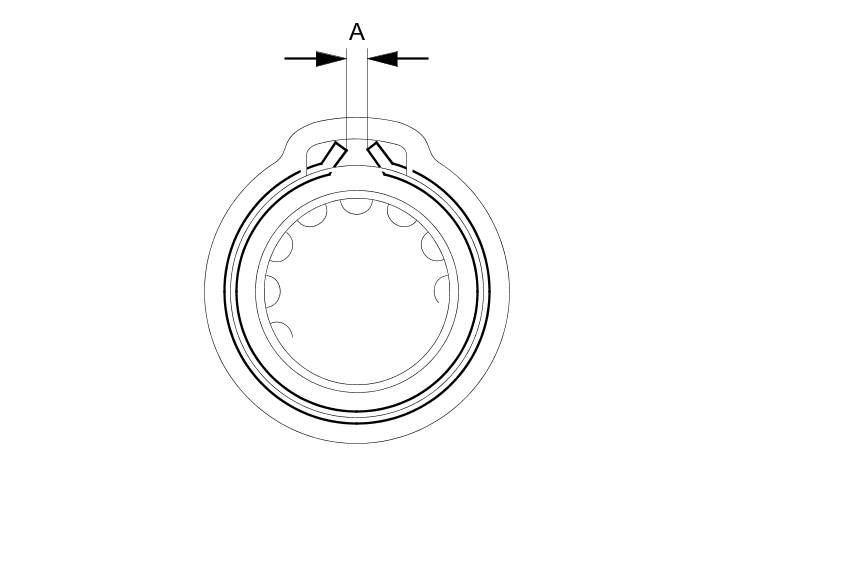

5. After installing the driven pulley shaft bearing, check that the snap ring is seated in the driven pulley shaft bearing and the housing groove, and that the ring end gap (A) is 9.0 mm (0.35 in) or less.
