Windshield Washer Hose: Service and Repair
Washer Tube Replacement
1.
Remove the right inner fender
Front Inner Fender Replacement
.
2.

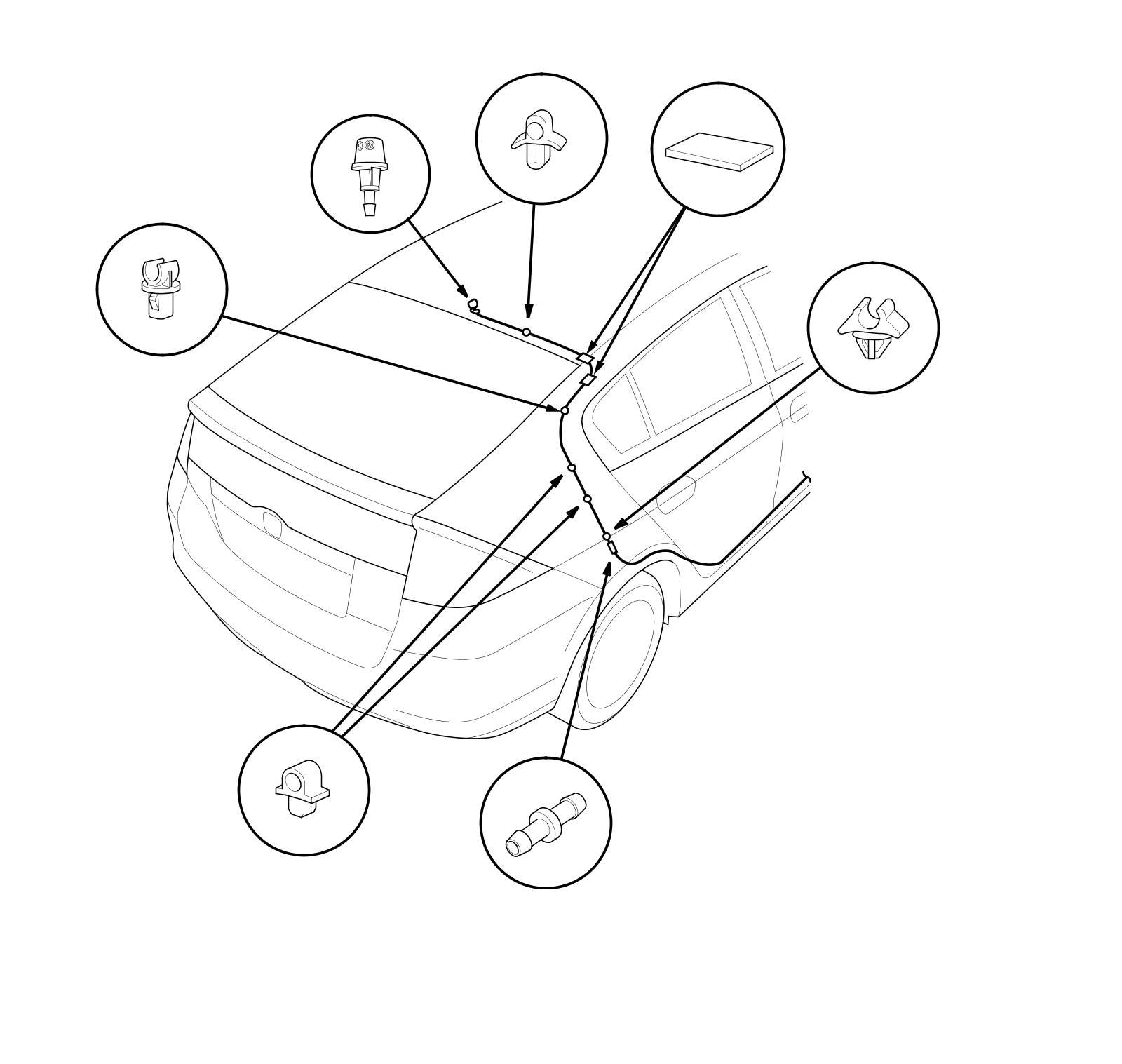

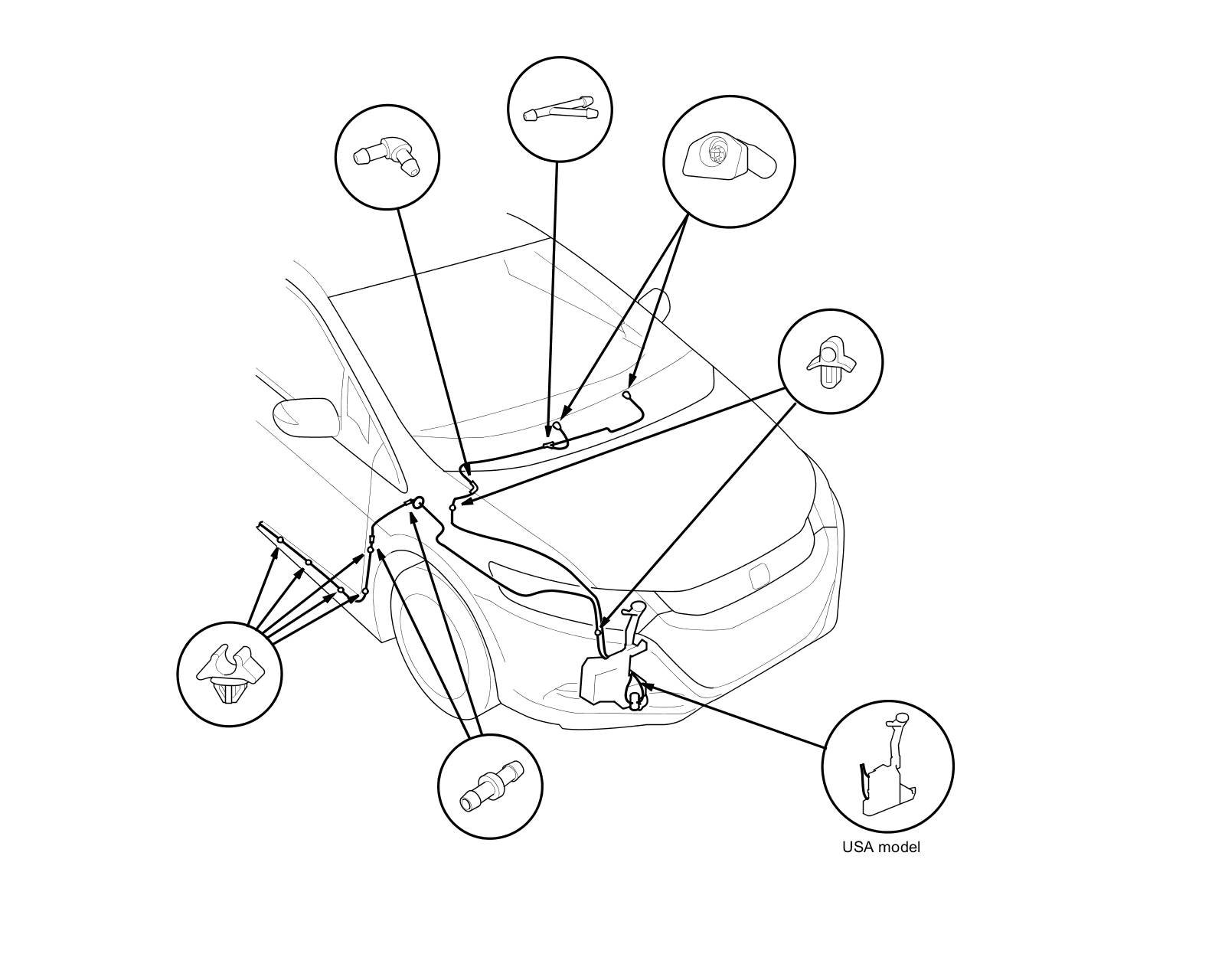

Remove the washer nozzles and the clips, then remove the tubes.
