Wiper Blade: Service and Repair

Wiper Blade Replacement

Windshield

NOTE: Always pull up the driver's side wiper blade first.

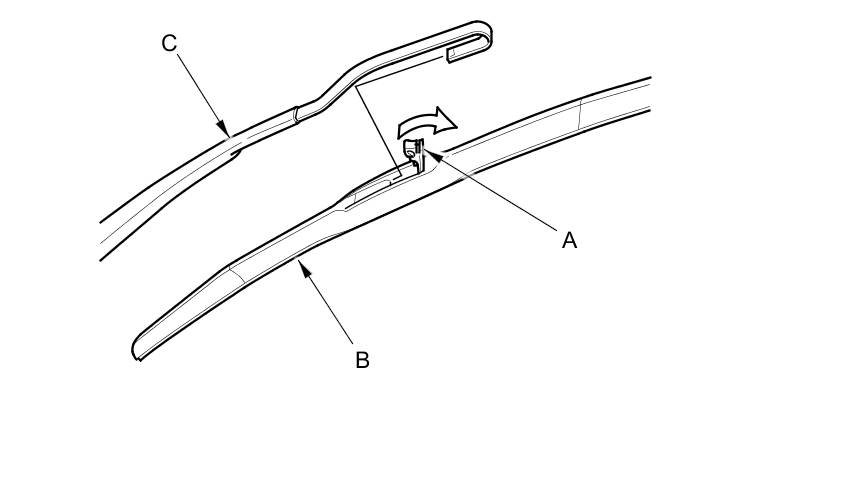

1. Gently pry up the lock (A) of the wiper blade assembly (B), and remove the wiper blade assembly from the wiper arm (C).

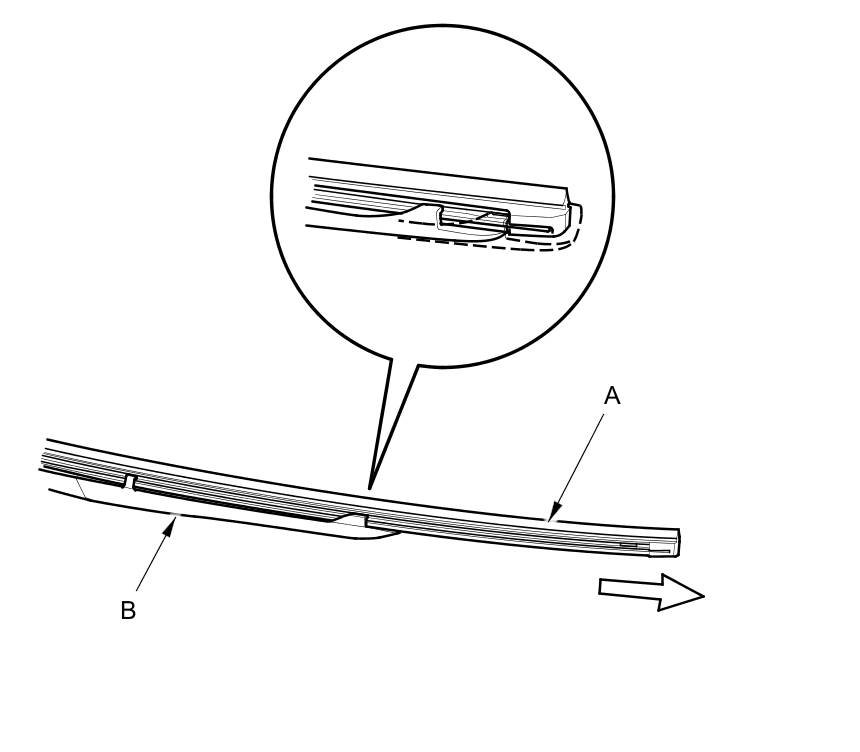

2. Slide the wiper blade (A) out from the wiper blade holder (B).

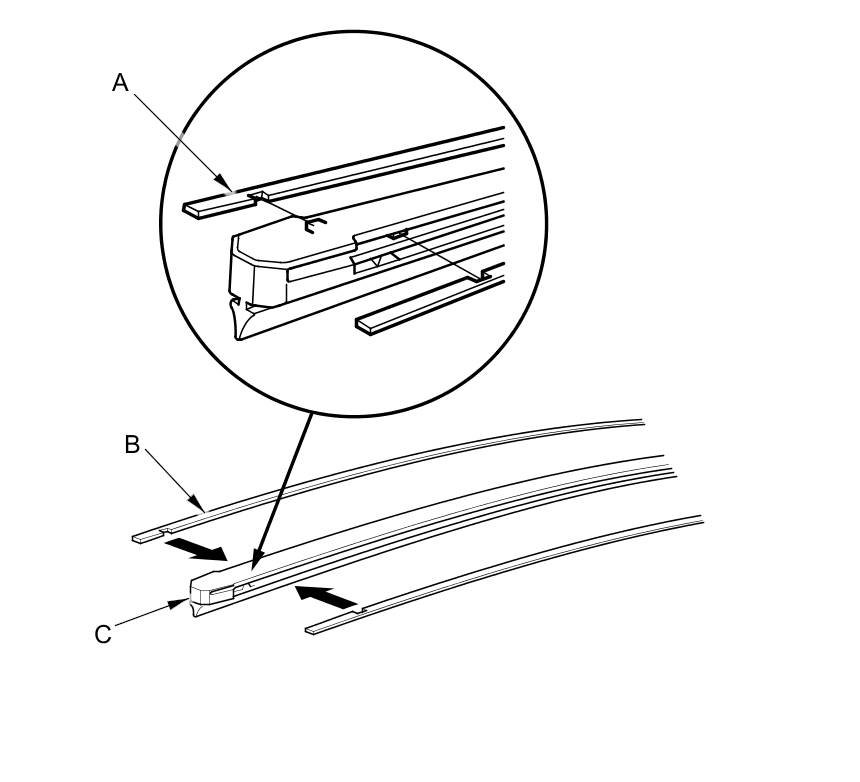

3. Align the groove (A) of each rail (B) with the tabs in a new wiper blade (C), then install the wiper blade and the rails into the blade holder in the reverse order of removal.





4. Install the wiper blade assemblies onto the wiper arms in the reverse order of removal.

5. Test the wiper operation. If the blades slip, turn the wiper switch OFF, and reinstall the blades securely.

Rear Window

1. Push the lock (A) of the wiper blade (B), and remove the wiper blade from the wiper arm (C).

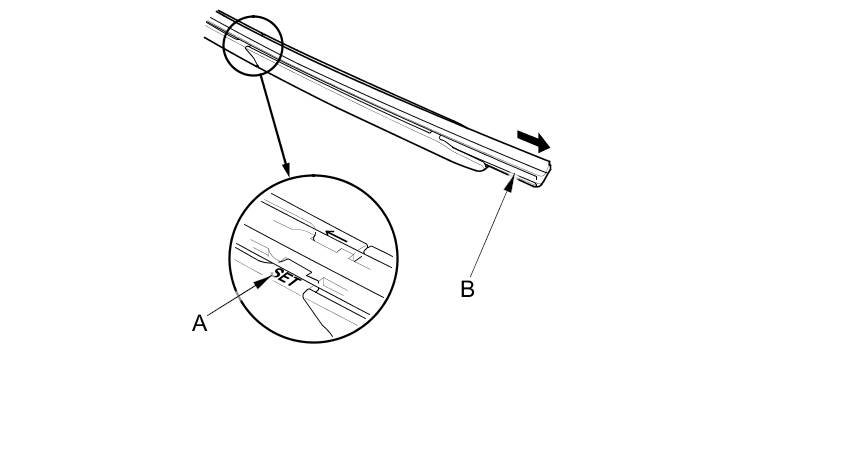

2. Check the SET word (A), then pull and remove the old wiper blade(B) from the wiper arm.





3. Install a new wiper blade in the reverse order of removal.

4. Install the wiper blade onto the wiper arm in the reverse order of removal.

5. Test the wiper operation. If the blade slips, turn the wiper switch OFF, and reinstall the blade securely.
