Sound Proofing / Insulation: Service and Repair

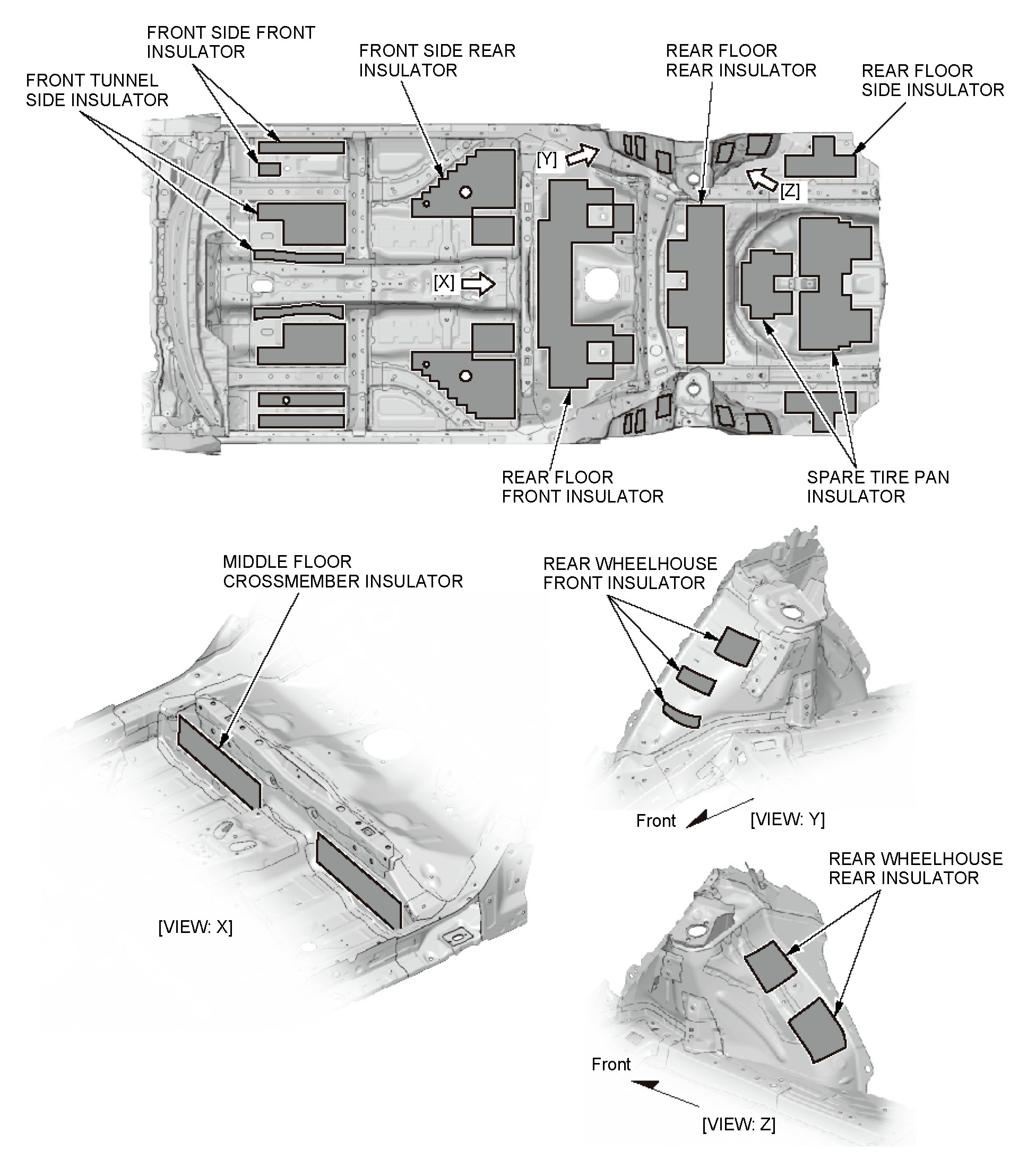

Floor Insulator Locations

4-door, Japan-produced model

Cut new insulators, and apply them in areas indicated in this illustration.

NOTE: Before applying, clean and degrease the floor.







4-door, USA-produced model

Apply sealer which has soundproof and vibration-proof properties in areas indicated in this illustration.

NOTE: Before applying, clean and degrease the floor.







2-door, USA-produced model

Apply sealer which has soundproof and vibration-proof properties in areas indicated in this illustration.

NOTE: Before applying, clean and degrease the floor.

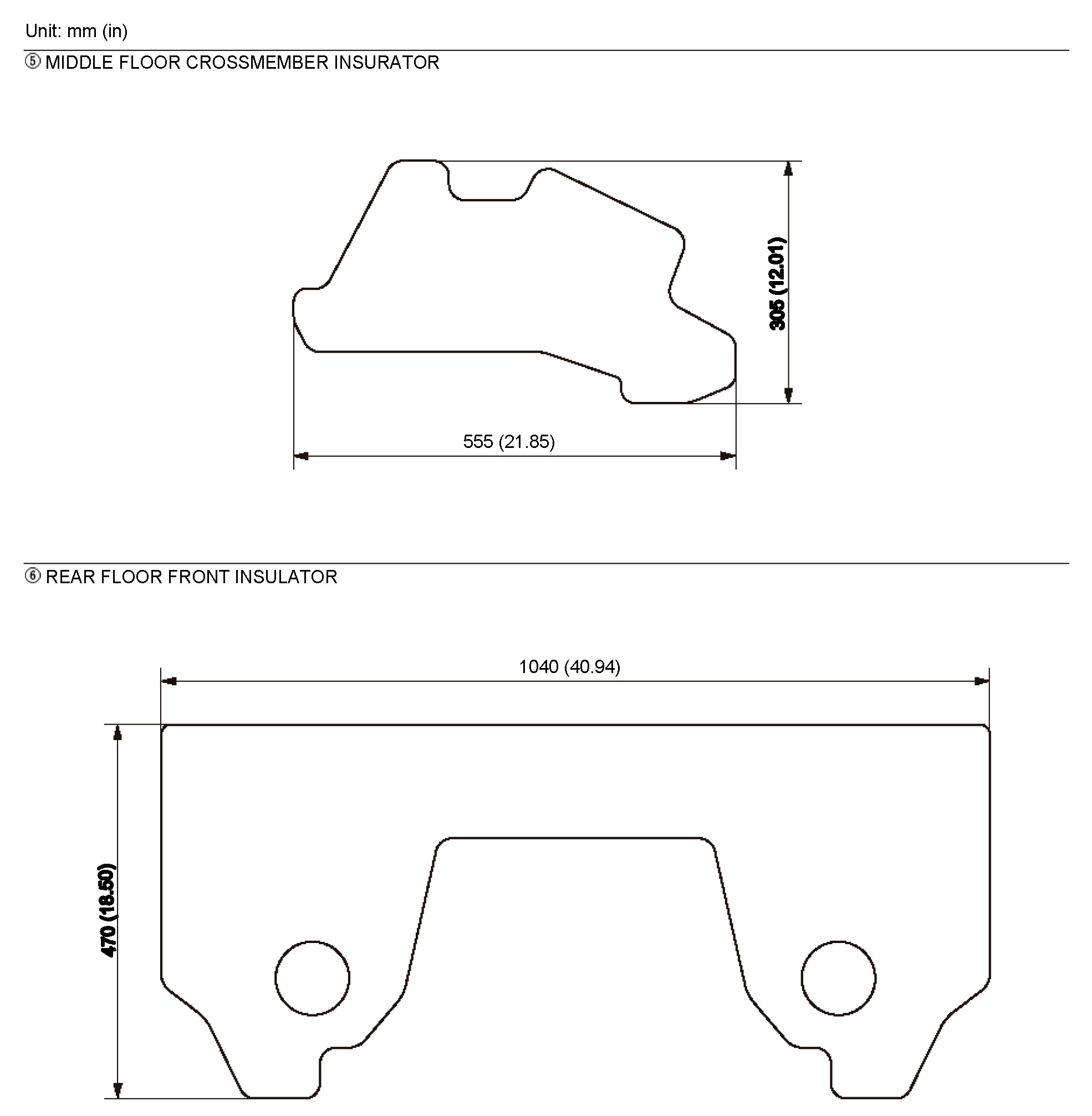

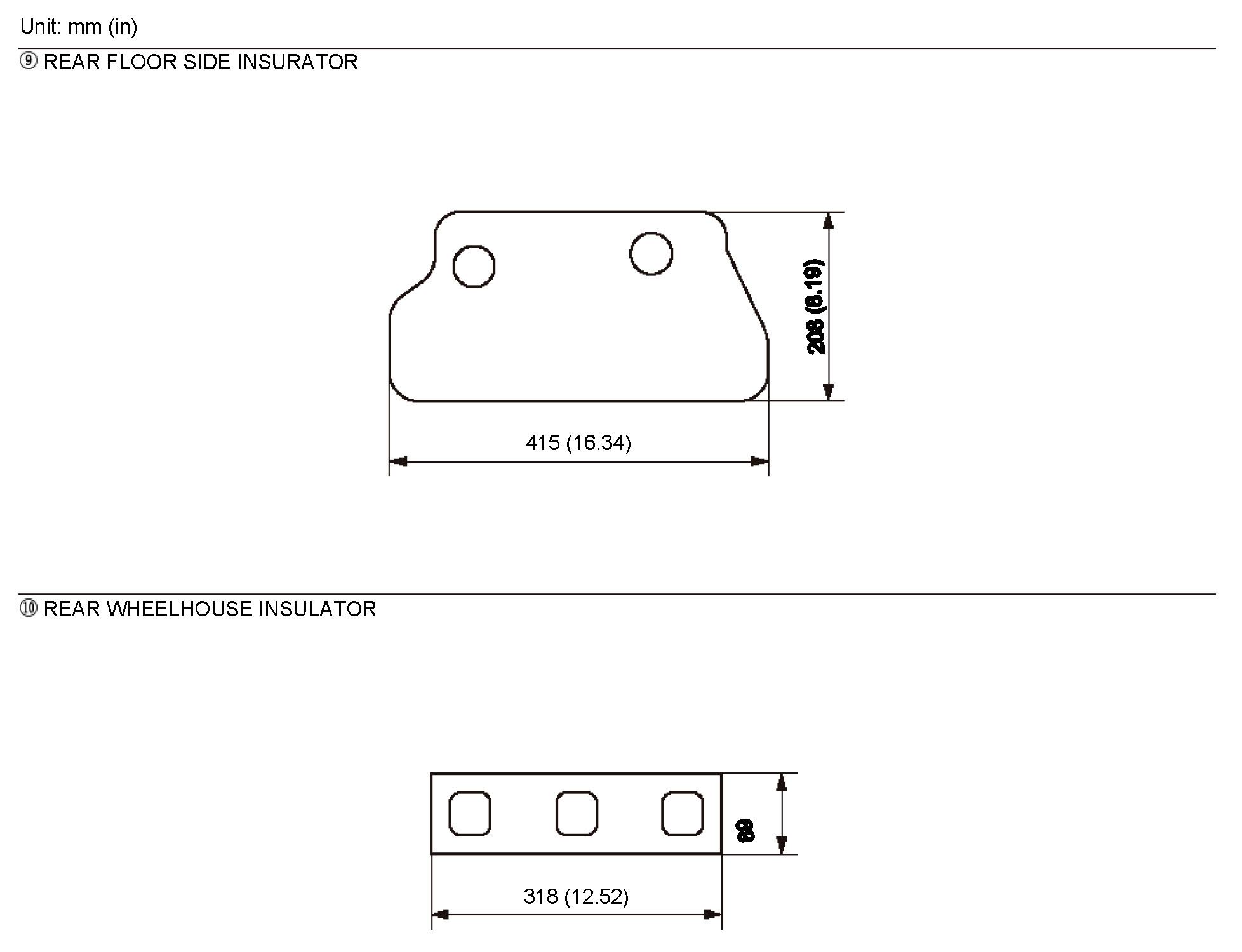

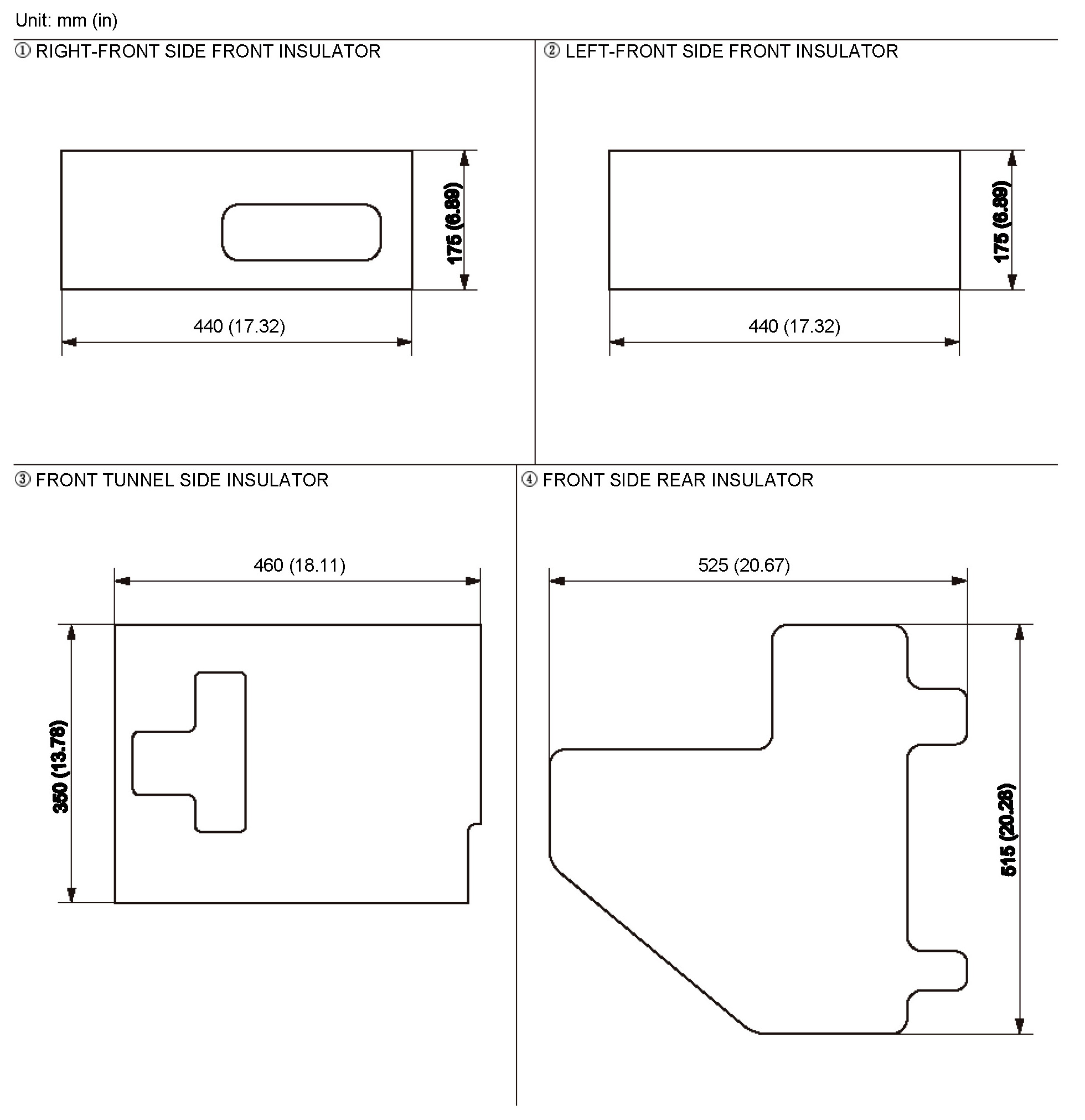

Floor Insulator Sizes
