Exhaust System - MIL ON, DTC P0420 Set

13-023

April 17, 2013

Applies To:
2013 Accord 2-door L4 - From VIN 1HGCT1...DA000001 thru 1HGCT1...DA000230
2013 Accord 4-door L4 - From VIN 1HGCR2...DA000001 thru 1HGCR2...DA033667

MIL Comes On With DTC P0420

SYMPTOM

The MIL comes on with DTC P0420 (catalyst system efficiency below threshold).

POSSIBLE CAUSE

The gasket between the catalyst and exhaust pipe A may be damaged.

CORRECTIVE ACTION

Replace the gasket and the three self-locking nuts.

PARTS INFORMATION

NOTE:
To help clarify where new parts are used in the REPAIR PROCEDURE, the new part is listed in the applicable step with a ">" symbol.

Pipe Gasket:
P/N 18302-SP0-003

Self-Locking Nut (three required):
P/N 90212-SA5-003

WARRANTY CLAIM INFORMATION

The normal warranty applies.

Operation Number: 3111T8

Flat Rate Time: 0.3 hour

Failed Part: 18302-SP0-003

Defect Code: 00401

Symptom Code: 03203

Skill Level: Repair Technician

REPAIR PROCEDURE

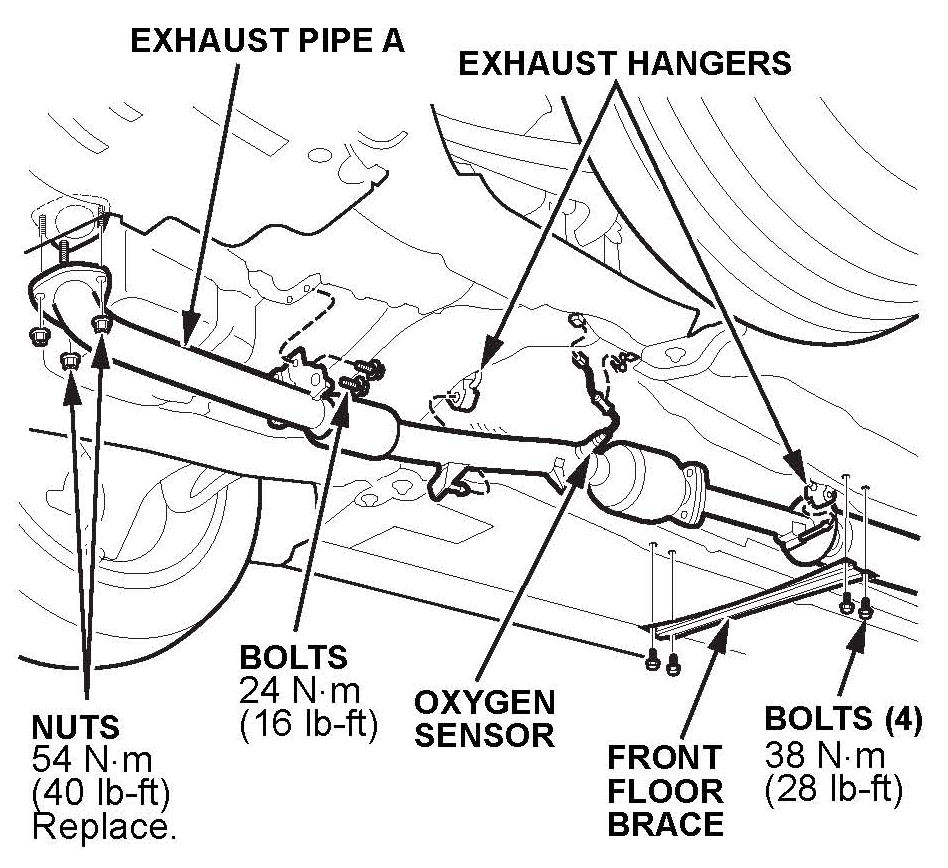

1. Remove the three nuts on exhaust pipe A:





NOTE:
The current procedure currently shown on ISIS is for the incorrect type of exhaust (one that uses a long bolt and spring mechanism). The 2013 Accord uses studs and nuts.

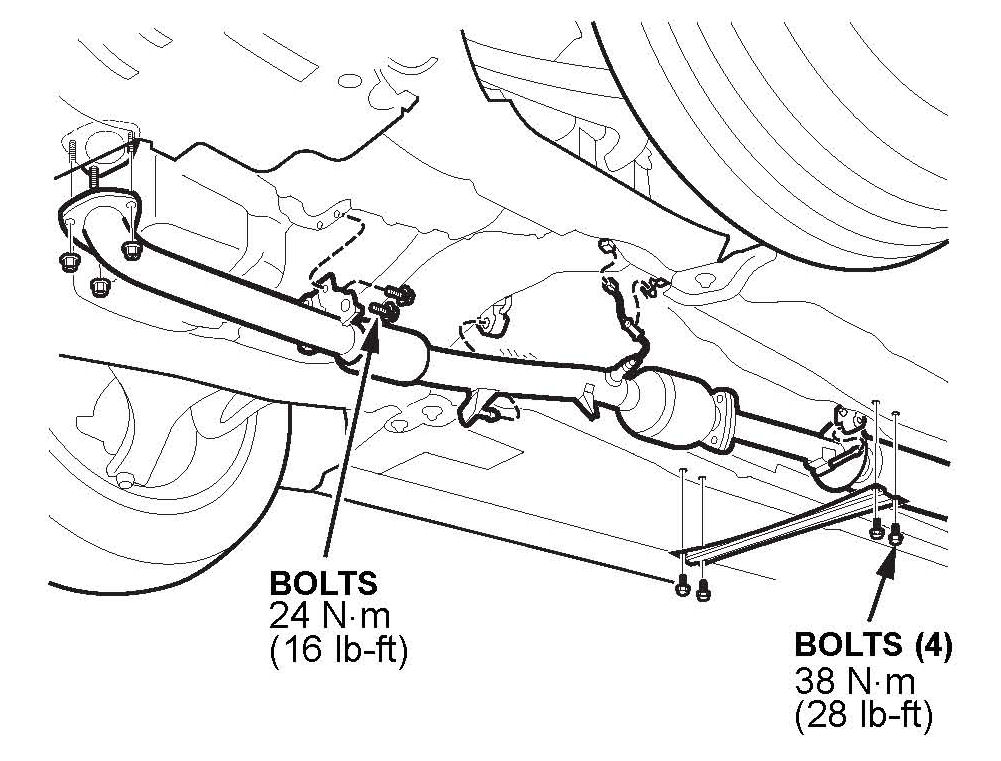

2. Remove the two bolts that mount the bracket to exhaust pipe A.

3. Disconnect the rubber exhaust hangers.

4. Disconnect the oxygen sensor clip and the connector.

5. Remove the four bolts from the front floor brace.

6. Pull down exhaust pipe A to access the exhaust pipe A gasket.

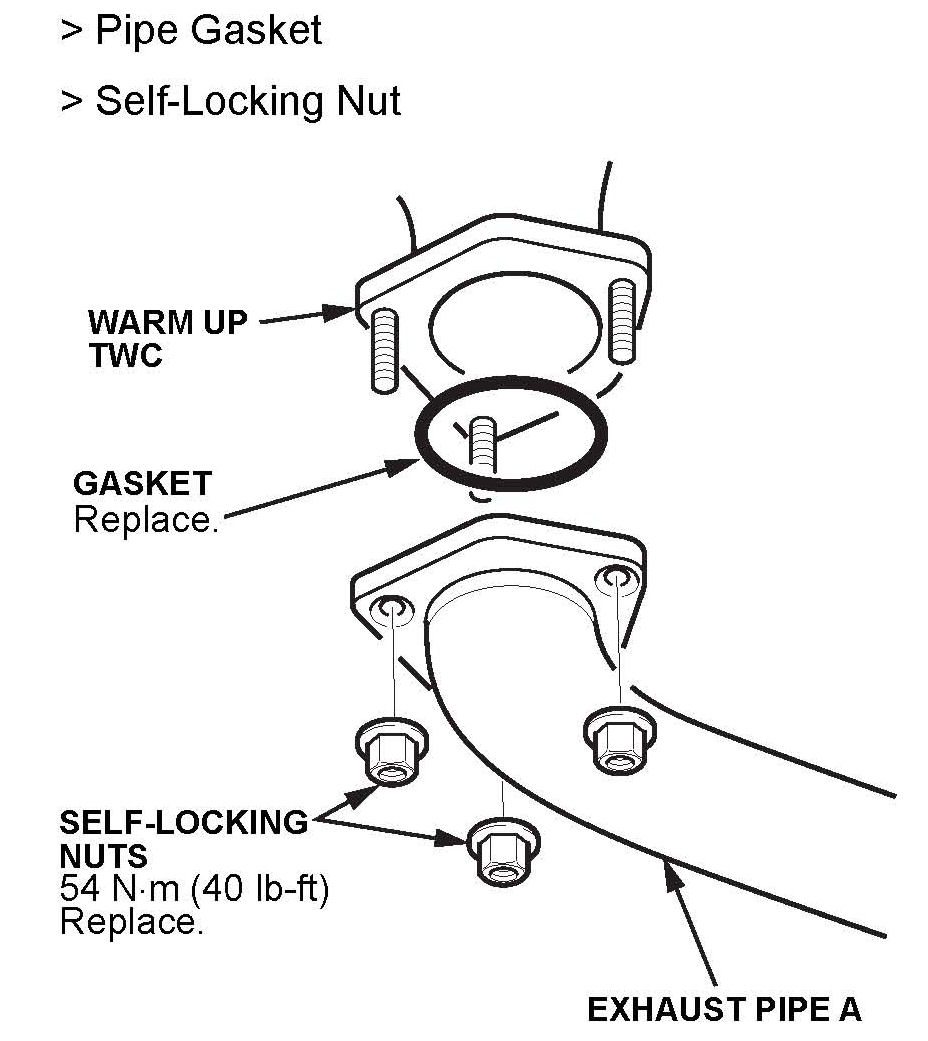

7. Install a new gasket and three self-locking nuts. Torque the nuts to 54 N.m (40 lb-ft).





8. Install the parts in the reverse order of removal.
