Sound Proofing / Insulation: Locations

Rust-Preventive Treatments

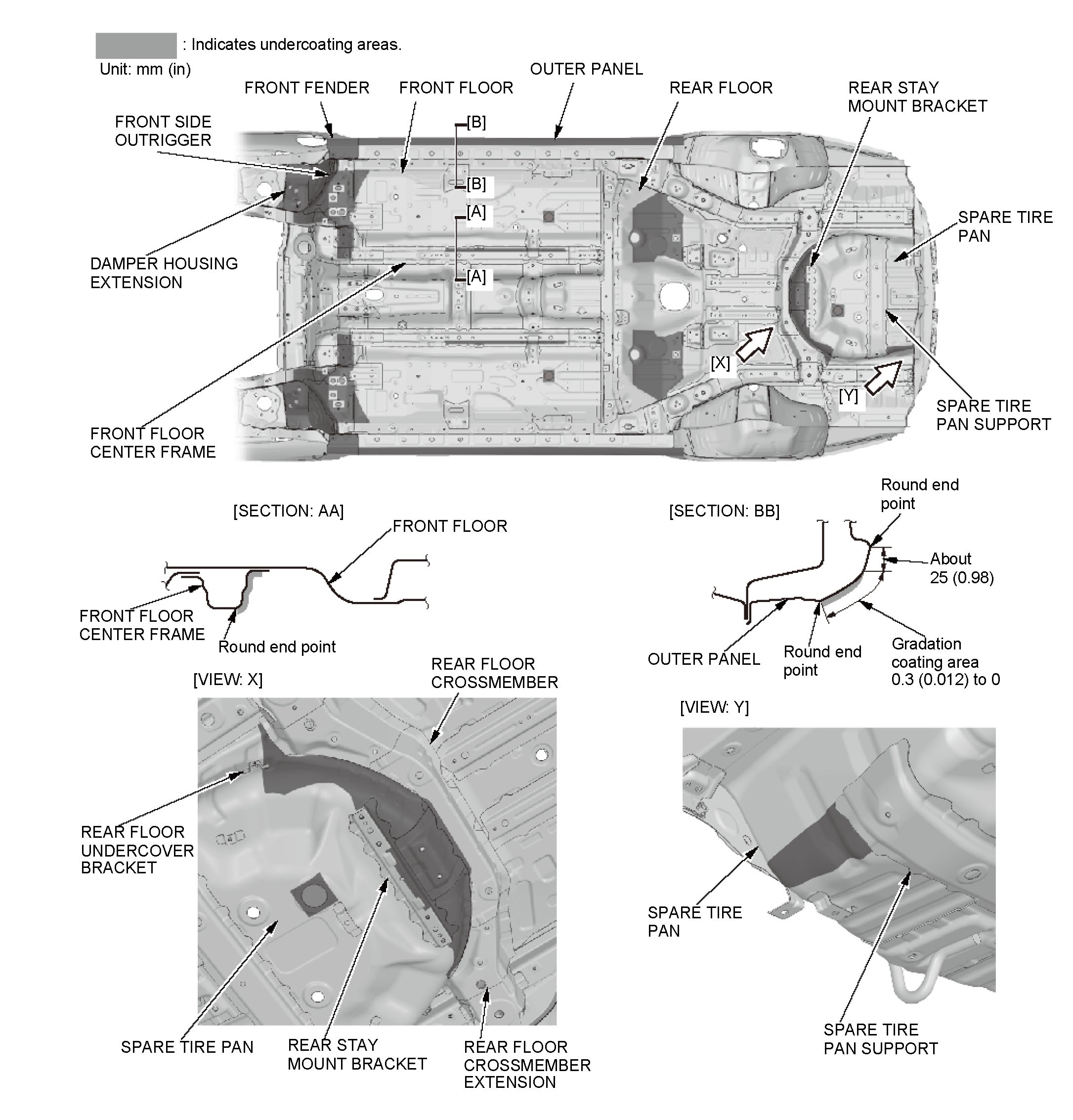

Undercoating Areas

1.Apply the undercoat to the areas shown.

NOTE:

^ Coating thickness: 0.4 mm (0.016 in) mm.

^ Front wheelhouse and dashboard lower coating thickness 0.5 mm (0.020 in).










2. Spray the soundproof coating on the areas shown. NOTE: Coating thickness: Wet 1.3 mm (0.051 in) mm.
