Exterior Parts Removal / Installation

Exterior Parts

Removal / Installation

NOTE:

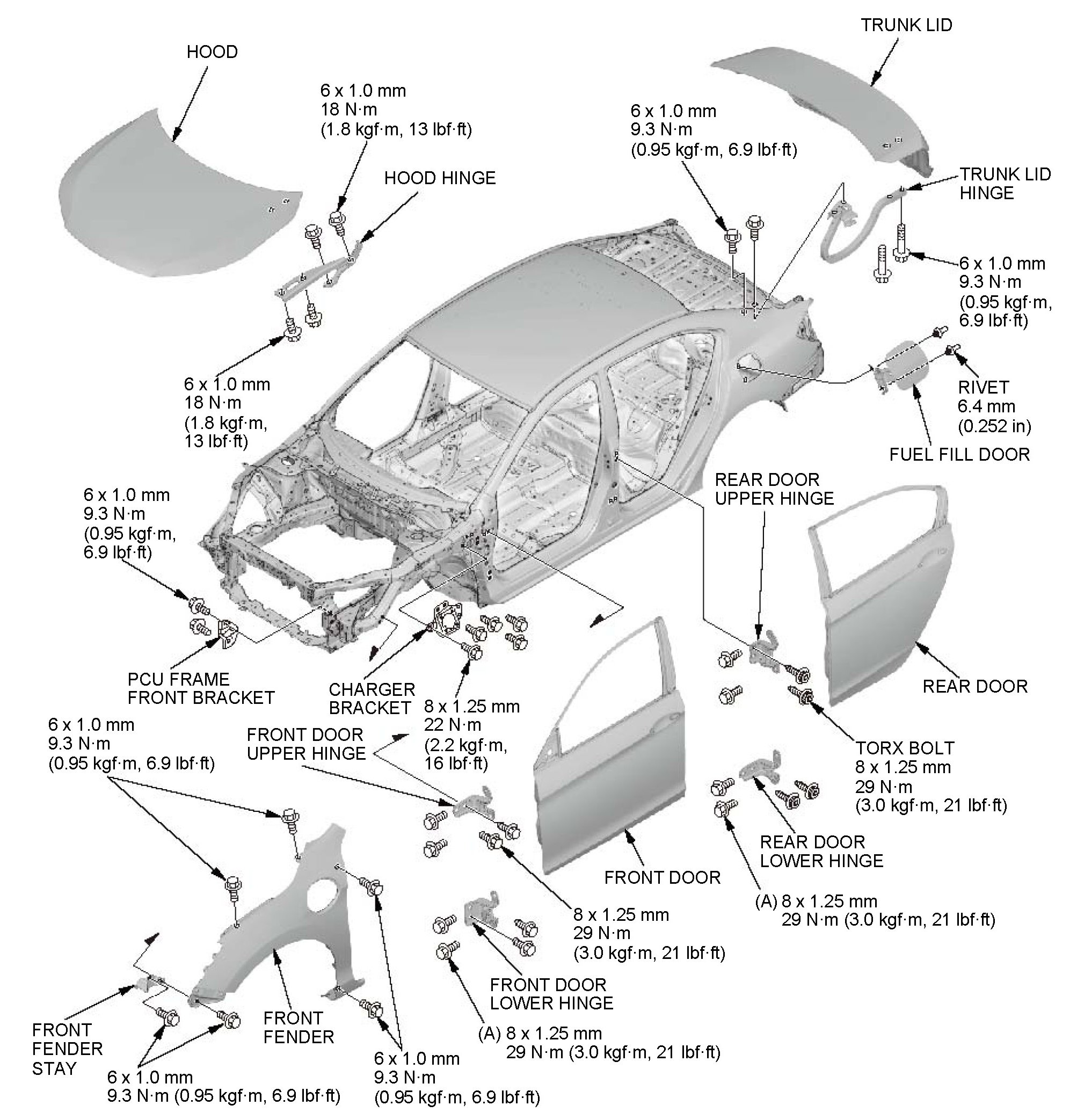

^ To adjust the doors in or out, replace the mounting bolts (A) with adjusting bolts; refer to the appropriate Parts Catalog for the necessary adjusting bolts.

^ Apply spot sealer to the mating surfaces, then install the hood, the front fenders, the doors, the fuel fill door, the trunk lid, and the hinges.

^ Check the hood, the front fenders, the doors, and the trunk lid positions.
