Battery: Service and Repair



12 Volt Battery Terminal Disconnection and Reconnection

Disconnection

After turning the vehicle to the OFF (LOCK) mode do not disconnect and isolate the negative cable connected to the battery at least 3 minute.

1. Make sure the vehicle is in the OFF (LOCK) mode.

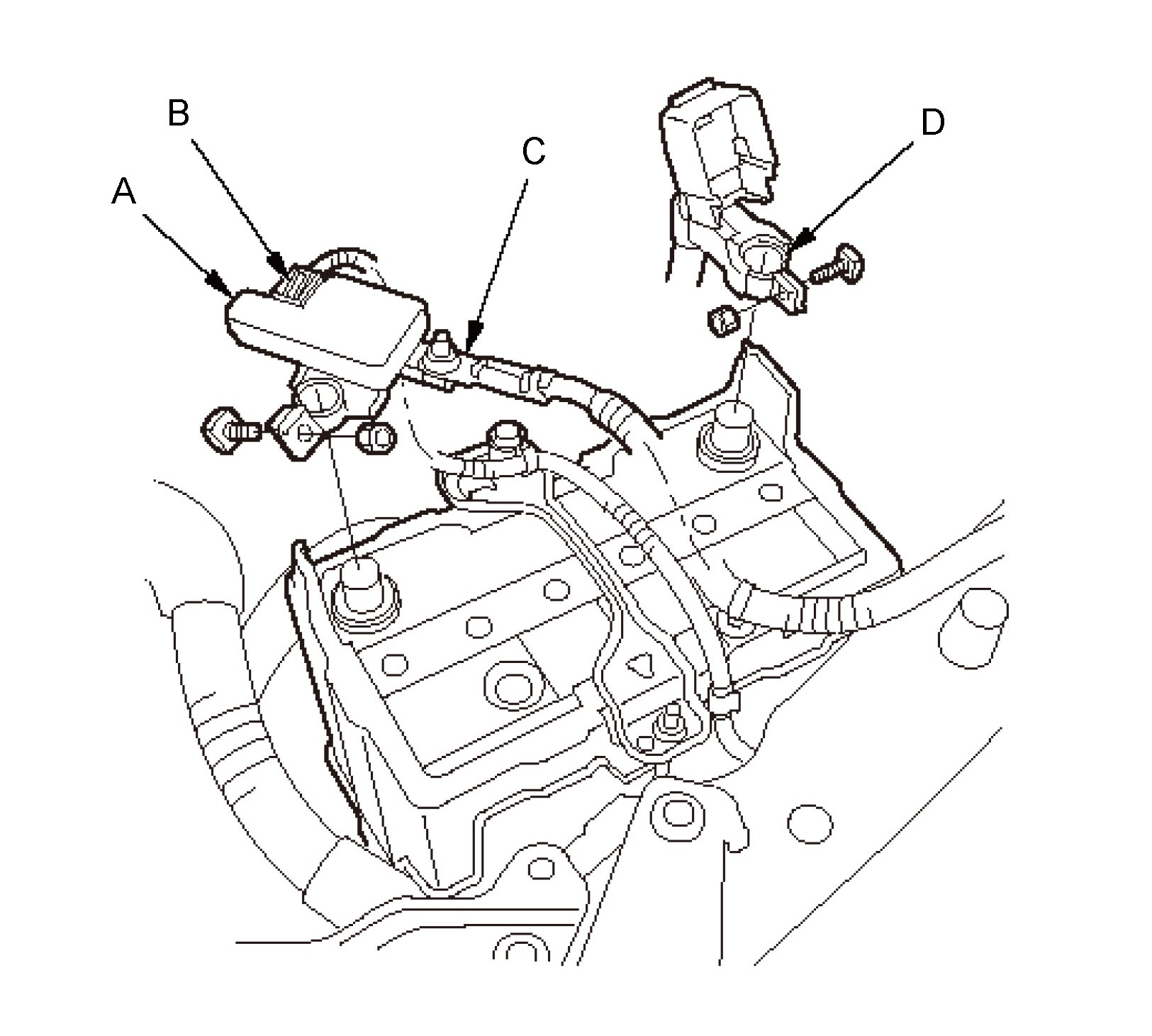

2. Disconnect and isolate the negative cable with the battery sensor (A) from the battery.

NOTE:

^ Always disconnect the negative side first.

^ To protect the battery sensor connector (B) from damage, do not hold it when removing the negative terminal.

^ Do not disconnect the battery sensor from the negative terminal (C).






3. Disconnect the positive cable and the battery terminal (0) from the battery.

Reconnection

NOTE: If the battery performs abnormally test the 12 volt battery; refer to the appropriate Accord Plug In Hybrid Electric Vehicle (PHEV) Service Manual.

1. Clean the battery terminals.

2. Connect the positive cable and the battery terminal (A) to the battery. NOTE: Always connect the positive side first.






3. Connect the negative cable and the battery sensor (B) to the battery.

NOTE: To protect the battery sensor connector (C) from damage do not hold it when installing the negative terminal.

4. Apply multipurpose grease to the terminals to prevent corrosion.
