Console Replacement

Console Replacement

Removal Procedure





1. Remove the cup holder. Refer to Cupholder Replacement (Removal and Replacement) .




2. Remove the console storage bin. Refer to Console Storage Bin Replacement (Console Storage Bin Replacement) .

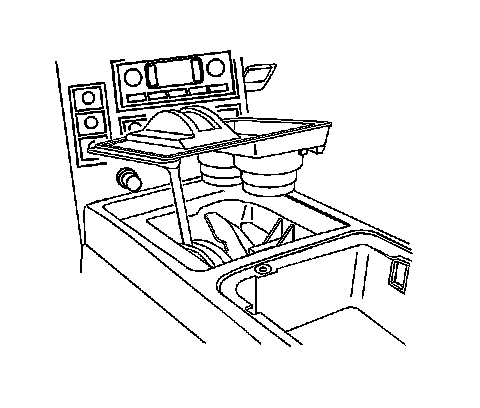

3. Remove top panel from center console.




4. Unplug electrical connectors and remove top panel from center console.




5. Remove the center console end panel. Refer to Center Console End Panel Replacement (Center Console End Panel Replacement) .
6. Disconnect the console electrical connector.




7. Remove screws holding center console to center console bracket.




8. Remove center console.



Installation Procedure






Important: Make sure HVAC duct is aligned with center console.


1. Align center console to center console bracket and route the electrical wiring through console.
2. Connect the console electrical connector.





Notice: Refer to Fastener Notice Service Precautions in Cautions and Notices.

3. Fasten center console to center console bracket.

Tighten the screws to 9 Nm (80 lb in).





4. Attach top panel to center console.

Tighten the screws to 1.6 Nm (14 lb in).





5. Connect the electrical connectors to the top panel.
6. Install the center console end panel. Refer to Center Console End Panel Replacement (Center Console End Panel Replacement) .

Tighten the screws to 1.6 Nm (14 lb in).





7. Install to center console upper trim plate.




8. Install the center console storage bin. Refer to Cupholder Replacement (Removal and Replacement) .
