Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hummer
>>
2003
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C900 - C999
C900 - C999

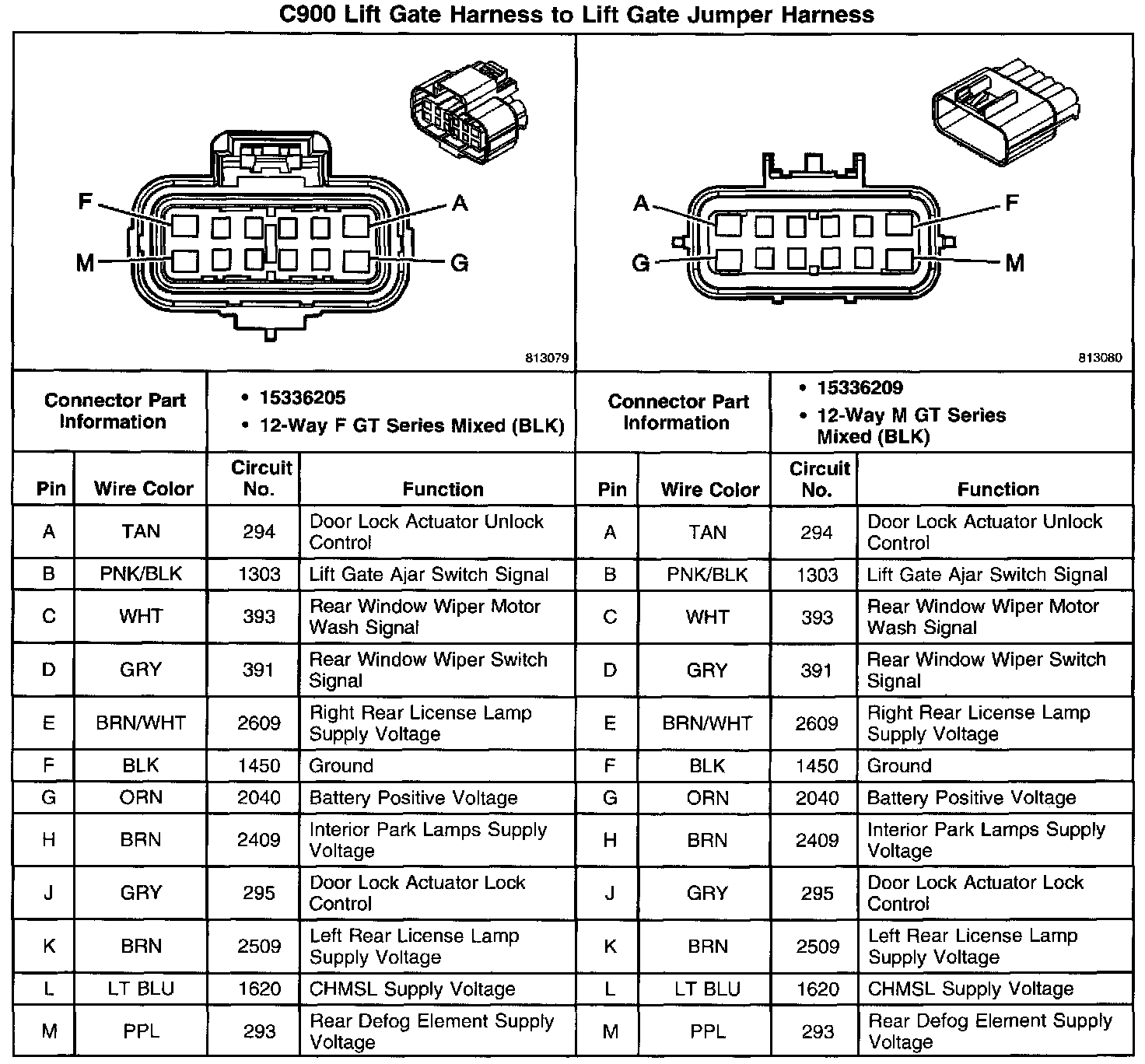

C900 Lift Gate Harness To Lift Gate Jumper Harness:
