Front Door Latch
Front Door Latch

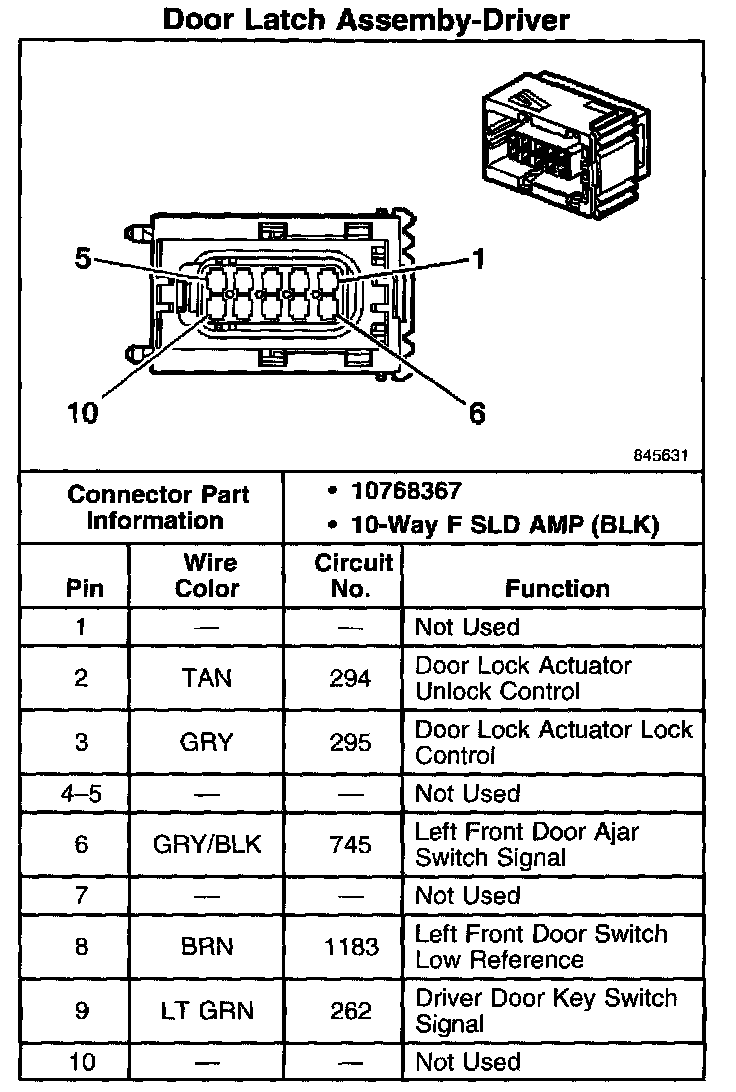

Door Latch Assembly - Driver:

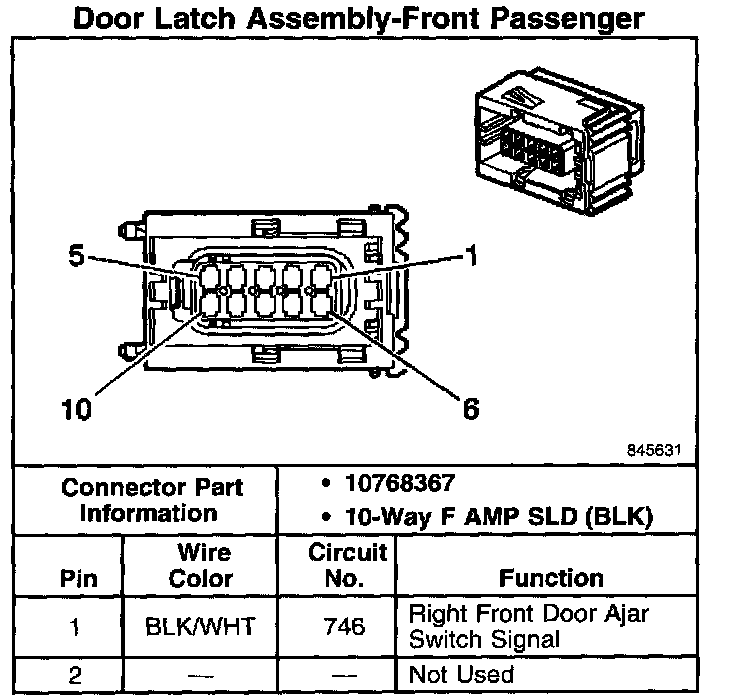

Door Latch Assembly - Front Passenger Part 1:
Door Latch Assembly - Front Passenger Part 2:
