C451 Chassis Harness to Air Suspension Harness

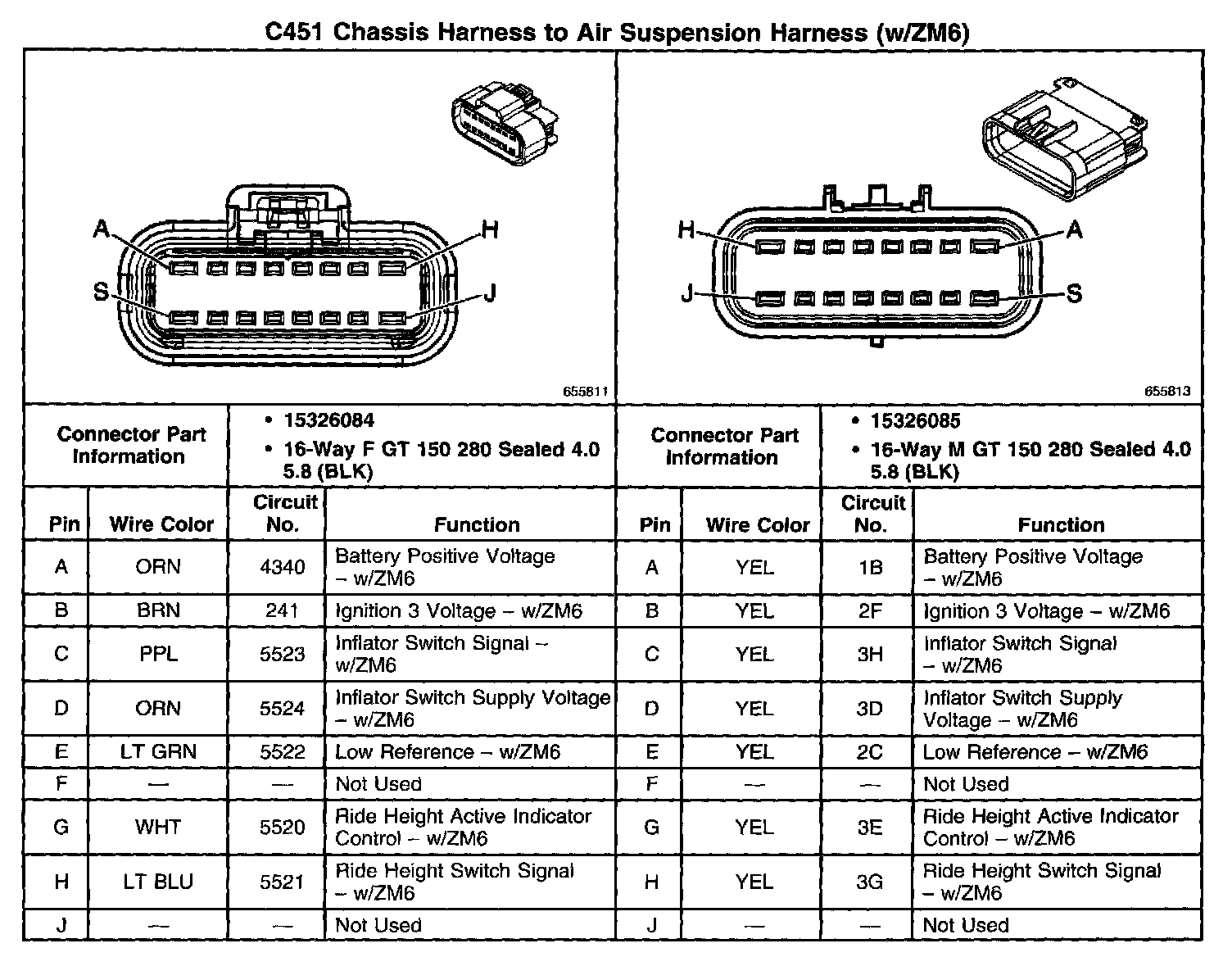

C451 Chassis Harness To Air Suspension Harness With RPO Code ZM6 Part 1:



C451 Chassis Harness To Air Suspension Harness With RPO Code ZM6 Part 2:
