24. Timing Chain and Sprocket Removal
TIMING CHAIN AND SPROCKETS REMOVALTOOLS REQUIRED
- J 8433-1 Two Jaw Puller
- J 41558 Crankshaft Sprocket Remover
- J 41816-2 Crankshaft End Protector
NOTE: Do not turn the crankshaft assembly after the timing chain has been removed in order to prevent damage to the piston assemblies or the valves.

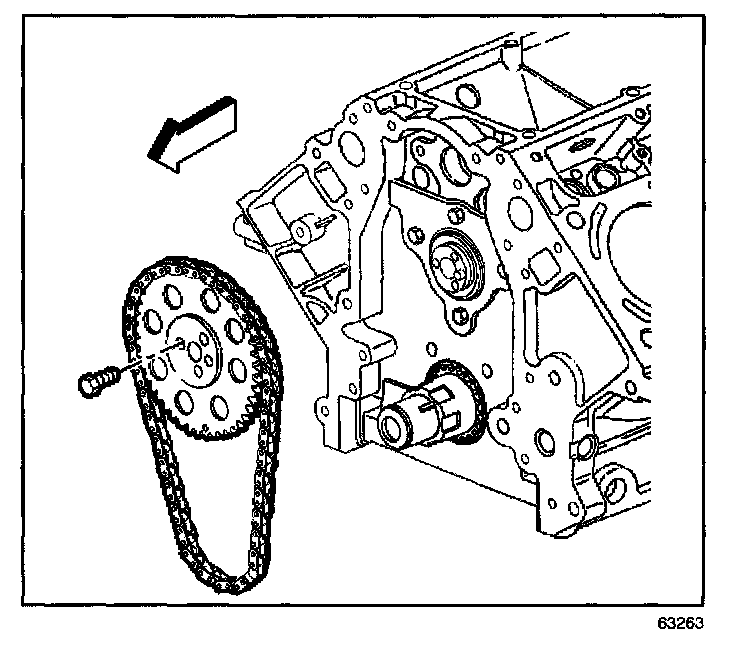

1. Remove the camshaft sprocket bolts.
2. Remove the camshaft sprocket and timing chain.
3. Use the J 8433-1, the J 41816-2, and the J 41558 in order to remove the crankshaft sprocket.
4. Remove the crankshaft sprocket.
5. Remove the crankshaft sprocket key, if required.
