A/C Diagnostics - Pressure Zone B
A/C Diagnostics - Pressure Zone B

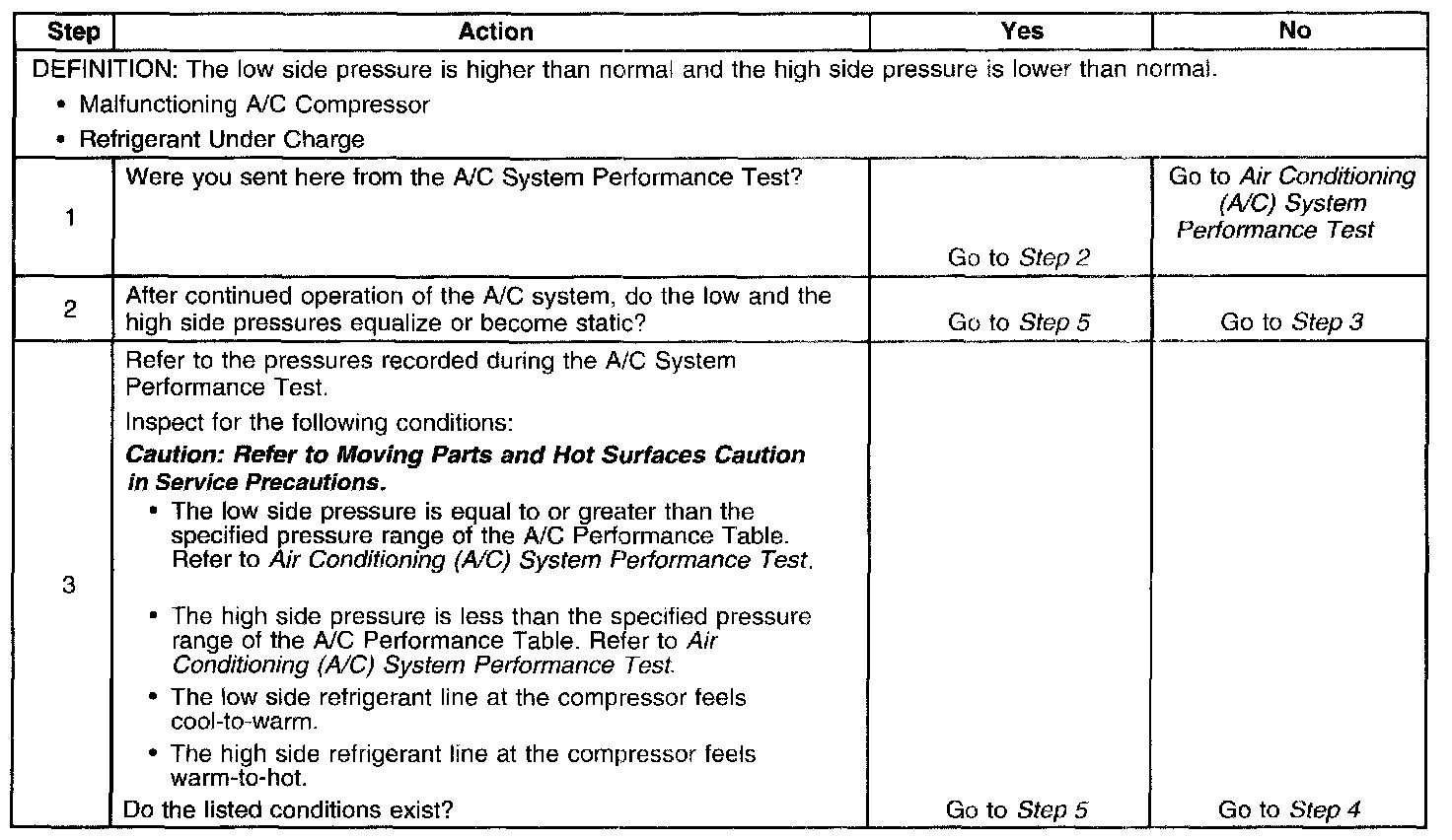

Steps 1-3:
Steps 4-10:
Steps 11-13:
