Ashtray Replacement

ASHTRAY REPLACEMENT

REMOVAL PROCEDURE

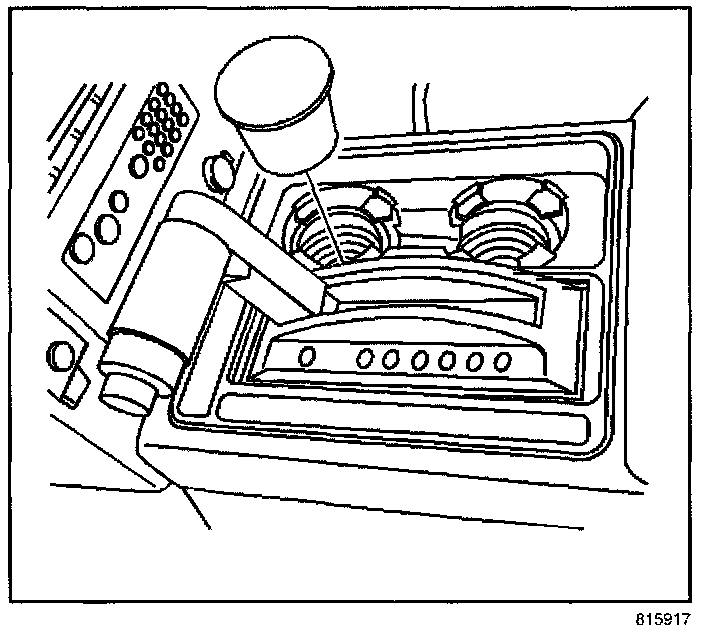

1. Remove ashtray from center console by lifting ashtray assembly from cup holder socket.
2. Remove ashtray from console.

INSTALLATION PROCEDURE

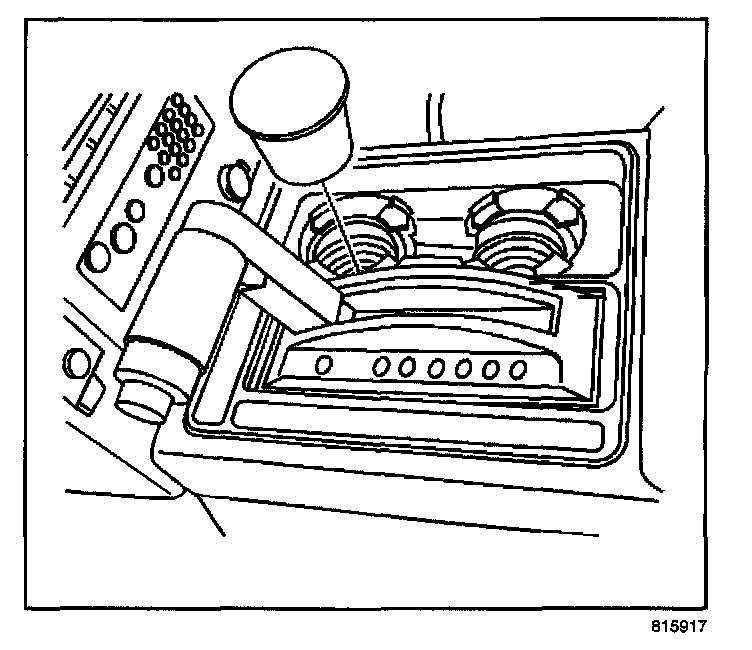

1. Align ashtray assembly to cupholder socket in center console.
2. Install ashtray to either cupholder socket.
