Bracket Replacement - Instrument Panel (I/P) Center Support
BRACKET REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER SUPPORTREMOVAL PROCEDURE
1. Remove the center console from the center console bracket.
2. Remove the extention panel from the I/P.

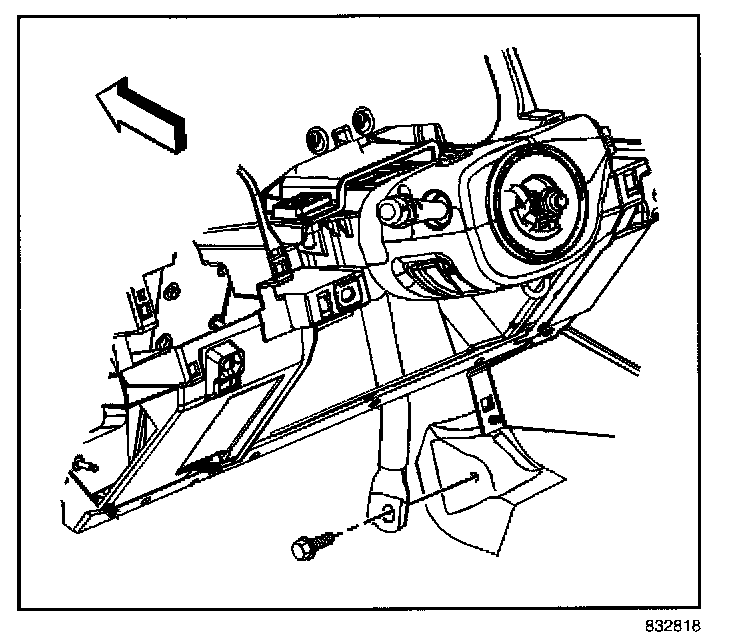

3. Remove the bolt holding the bracket assembly-I/P center.
4. Remove the bracket from the I/P and floor.
INSTALLATION PROCEDURE
NOTE: Refer to Fastener Notice in Service Precautions.
1. Align the center bracket with the I/P and floor, then bolt the bracket in place.
Tighten
Tighten the bolt to 25 N.m (18 lb in).
2. Install the extention panel the I/P.
3. Install the center console to the center console bracket.
