Center Console End Panel Replacement
CENTER CONSOLE END PANEL REPLACEMENTREMOVAL PROCEDURE

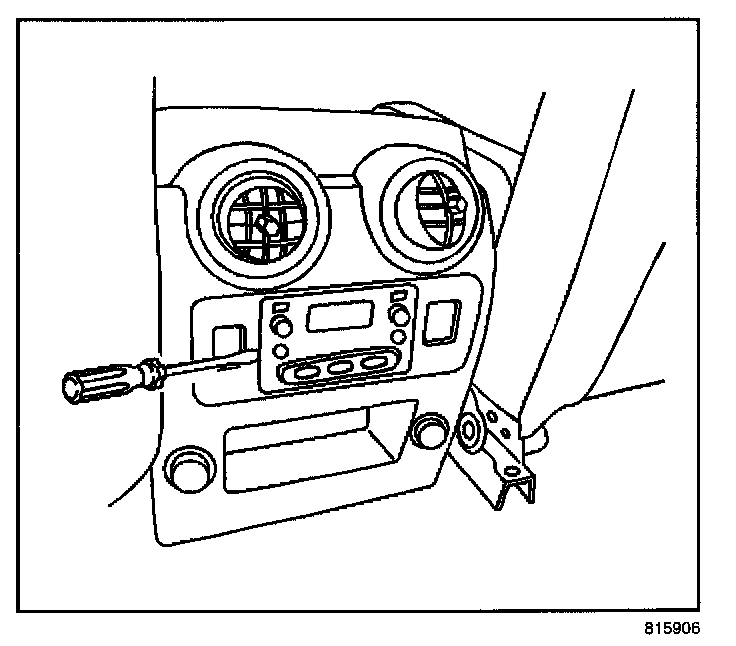

1. Remove screws that hold end panel to center console.
2. Disconnect electrical connectors to end panel.
3. Remove console end panel.
INSTALLATION PROCEDURE
1. Connect electrical connectors to console end panel.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install screws that attach console end panel to center console.
Tighten
Tighten the screws to 1.6 N.m (14 lb in).
3. Check front end panel.
