Door Replacement - Console Compartment Center

DOOR REPLACEMENT - CONSOLE COMPARTMENT CENTER

REMOVAL PROCEDURE




1. Lift compartment door to gain access to window assembly.

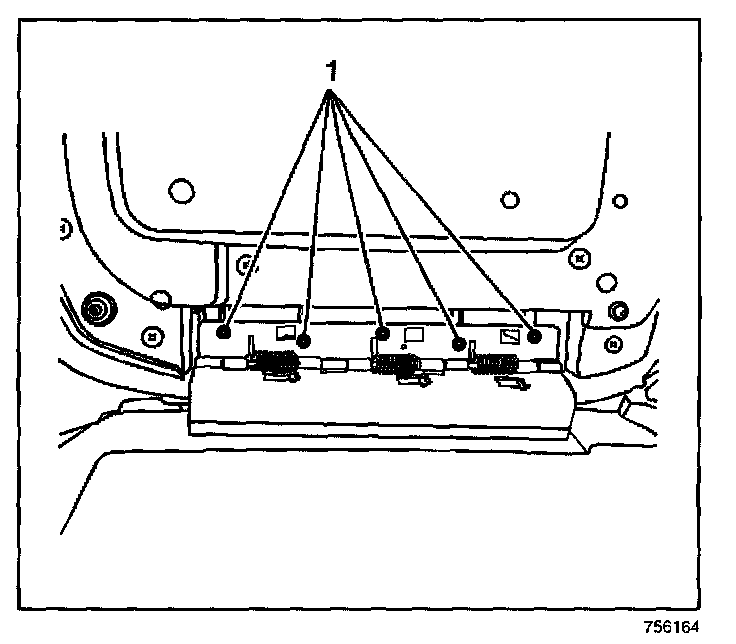

2. Remove screws (1) holding compartment door to center console.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Align window assembly on compartment door to center console and screw into place (1).

Tighten
Tighten the screws to 2 N.m (18 lb in).

2. Close compartment door and check alignment for latch assembly.
