Instrument Panel (I/P) Assist Handle Replacement

INSTRUMENT PANEL (I/P) ASSIST HANDLE REPLACEMENT

REMOVAL PROCEDURE




1. Remove compartment replacement-I/P.

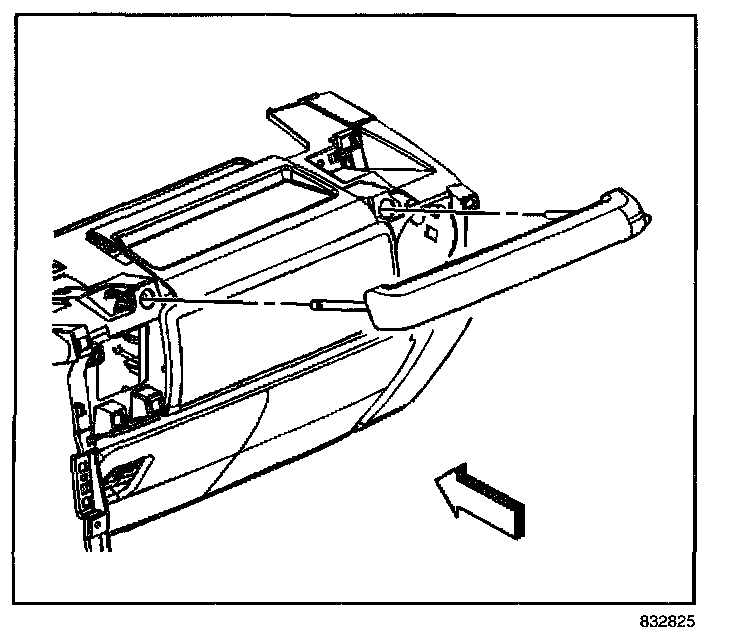

2. Reach under I/P and pinch release clips to release I/P assist handle from I/P.

INSTALLATION PROCEDURE




1. Install compartment replacement-I/P.
2. Line assist handle with holes in I/P and push I/P assist handle into I/P until I/P assist handle clicks into place.
