Evaporative Emission Control Canister: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER REPLACEMENT

REMOVAL PROCEDURE




1. Raise the vehicle. Refer to Vehicle Lifting.
2. Disconnect EVAP solenoid electrical connector.

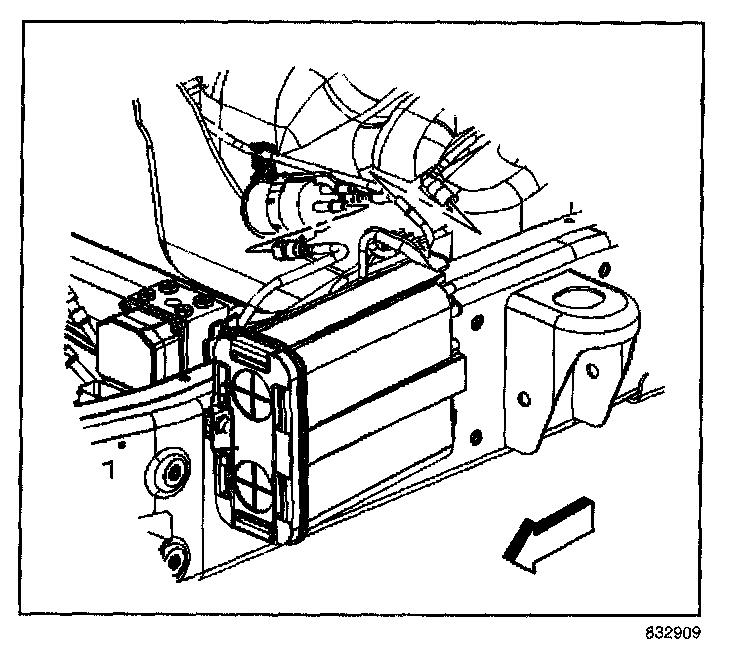

3. Remove the evaporative emission (EVAP) canister mount bolts.




4. Disconnect the pipes at the EVAP canister.
5. Remove the EVAP canister from the vehicle.

INSTALLATION PROCEDURE




1. Install the EVAP canister to the vehicle.
2. Connect EVAP solenoid electrical connector.

NOTE: Refer to Fastener Notice in Service Precautions.




3. Install the EVAP canister mounting bolts.

Tighten
Tighten the bolts to 25 N.m (18 lb ft).

4. Connect the pipes to the EVAP canister.
5. Lower the vehicle.
