Transmission Fluid Cooler Hose/Pipe Replacement
TRANSMISSION FLUID COOLER HOSE/PIPE REPLACEMENTREMOVAL PROCEDURE
1. Remove the air cleaner resonator outlet duct.

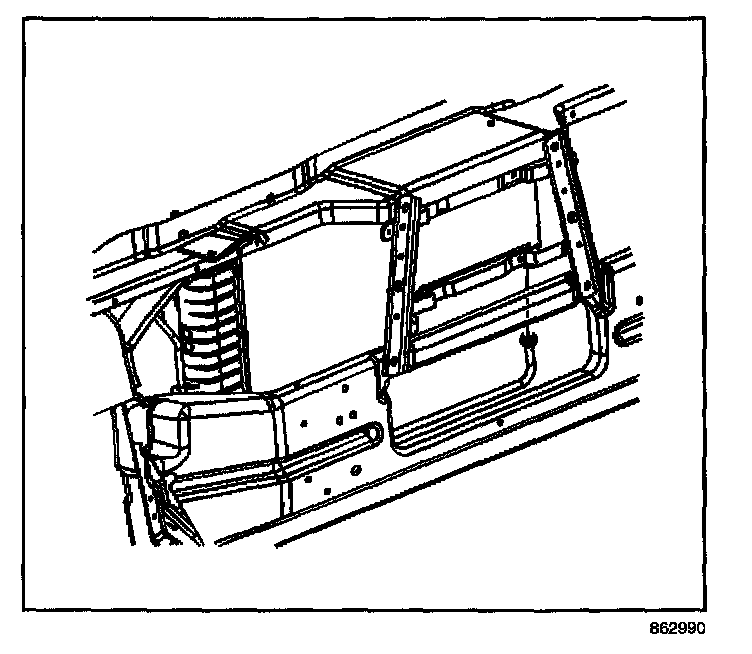

2. Remove the transmission fluid cooler hoses from the transmission fluid Auxiliary cooler.
3. Remove the transmission fluid cooler hose from the auxiliary transmission fluid cooler.
4. Remove the transmission fluid cooler hoses from the radiator.
5. Raise and support the vehicle. Refer to Vehicle Lifting.
6. Remove the bolts from the transmission fluid cooler hose insulator.
7. Remove the transmission fluid cooler hose insulator from the transmission.
8. Remove the cooling lines from the clips.
9. Remove the transmission fluid cooler hoses from the transmission.
INSTALLATION PROCEDURE
1. Install the transmission fluid cooler hoses to the transmission.
2. Install the cooling lines to the clips.
3. Install the transmission fluid cooler hose insulator to the transmission.
NOTE: Refer to Fastener Notice in Service Precautions.
4. Install the bolts to the transmission fluid cooler hose insulator.
Tighten
Tighten the bolts to 17 N-m (12 lb ft)
5. Lower the vehicle.
6. Install the transmission fluid cooler hoses to the radiator.
7. Install the transmission fluid cooler hose to the auxiliary transmission fluid cooler.
8. Install the transmission fluid cooler hoses to the transmission fluid Auxiliary cooler.
9. Install the air cleaner resonator outlet duct.
