22. Case Bushing

CASE BUSHING

REMOVAL PROCEDURE

TOOLS REQUIRED
- J 8092 Driver Handle
- J 34196-B Transmission Bushing Service Set

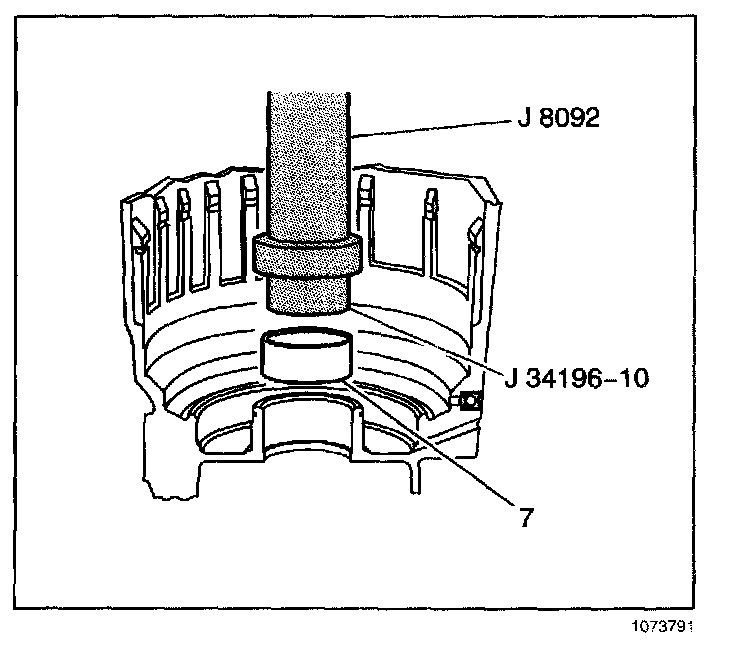

Remove the case bushing (7) using J 8092 and J 34196-10 which is part of kit J 34196-B.

INSTALLATION PROCEDURE




Install a case bushing (7) using J 8092 and J 34196-10 which is part of kit J 34196-B.
