33. Reaction Carrier Shaft Replacement
REACTION CARRIER SHAFT REPLACEMENTREMOVAL PROCEDURE
TOOLS REQUIRED
- J 23907 Universal Remover with Bearing Adapter
- J 25019-14 Bushing Remover
- J 29369-2 Bushing and Universal Remover
- J 7004-1 Universal Remover
1. Remove the reaction carrier shaft/internal gear retainer (668) and the reaction carrier shaft (666) from the input internal gear (664)
2. Inspect the reaction carrier shaft (666) and the input internal gear (664) for the following defects:
- Scoring
- Cracking
- Damaged or worn bushings
- A cracked shaft
- A damaged spline
- Damaged gear teeth
3. Using J 29369-2 with J 23907, remove the reaction carrier shaft front bushing (665).

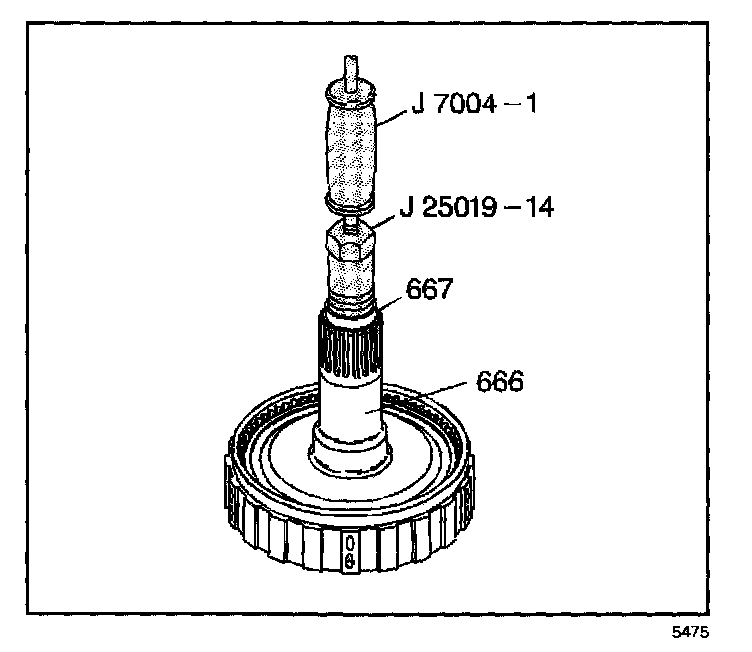

4. Using J 25019-14 with J 7004-1, remove the reaction carrier shaft rear bushing (667).
INSTALLATION PROCEDURE
TOOLS REQUIRED
- J 34196-B Transmission Bushing Service Set
- J 8092 Driver Handle
1. Using J 34196-3 which is part of kit J 34196-B with J 8092, install a new reaction carrier shaft front bushing (665).
2. Using J 34196-3 which is part of kit J 34196-B with J 8092, install a reaction carrier shaft rear bushing (667).
