68. Oil Pump Assembly Installation
OIL PUMP ASSEMBLY INSTALLATIONTOOLS REQUIRED
- J 25025-1 Alignment Pins
- J 39855 Stator Shaft Seal Installer

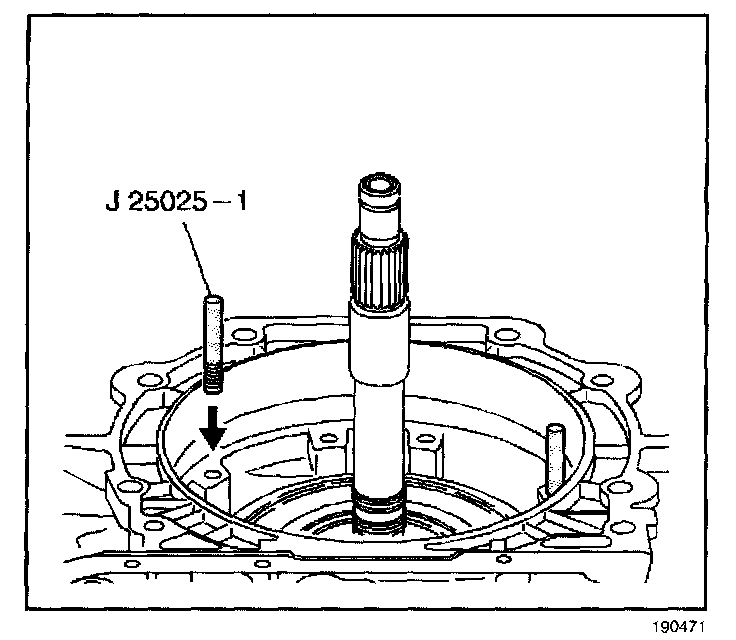

1. Install the J 25025-1.
2. Remove the J 39855-2 which is part of kit J39855.
3. Install the pump to drum thrust washer (601).
4. Use J 36850 or equivalent to retain the washer to the pump.
5. Install the oil pump to case seal (5) on the oil pump assembly (4).
6. Install the pump cover to case gasket (6).
7. Install the oil pump assembly (4) into the case and align all holes properly.
NOTE: Refer to Fastener Notice in Service Precautions.
IMPORTANT: The pump to case bolt O-ring seals (3) must be replaced.
8. Install the pump to case bolts (2) with new O-ring seals (3).
Tighten
Tighten the bolts to 29 N-m (21 lb ft).
9. Remove the J 25025-1.
10. Install the remaining pump to case bolts (2) and O-ring seals (3), in the holes where the J 25025-1 were.
Tighten
Tighten the bolts to 29 N-m (21 lb ft).
