70. Converter Housing Installation

CONVERTER HOUSING INSTALLATION

TOOLS REQUIRED
J 41510 50 mm Torx(R) Plus Bit

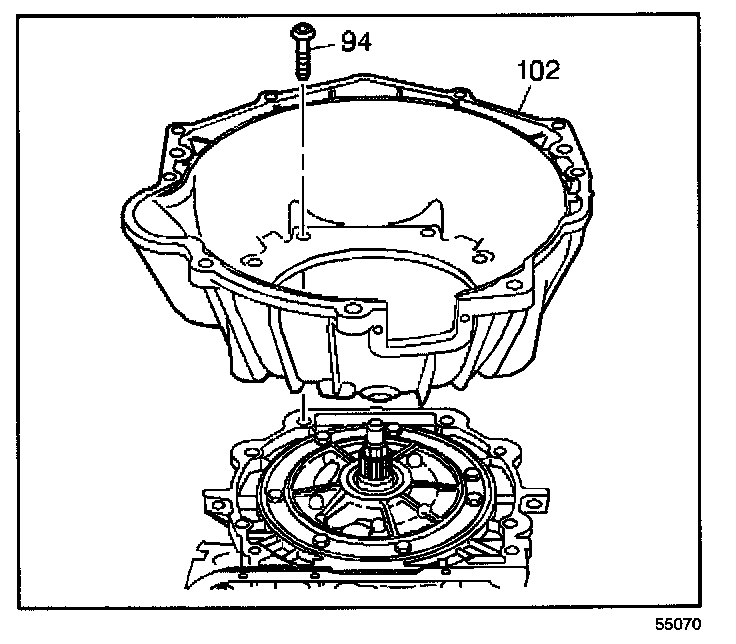

1. Install the converter housing (102).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the converter housing bolts (94) to the transmission case. Use the J 41510.

Tighten
Tighten the converter housing bolts (94) to 65-75 N-m (48-55 lb ft).
