Radio Replacement

RADIO REPLACEMENT

REMOVAL PROCEDURE

IMPORTANT: Record the lock code before removal, if equipped.




1. Loosen and move the center console reward for access to the center trim panel. Refer to Console Replacement in Instrument Panel, Gages and Console.
2. Remove the screws that hold the trim plate-Instrument panel center from instrument panel.
3. Remove the bolts that hold the radio to the instrument panel center stack.




4. Disconnect the electrical connectors and the antenna connections from the rear of the radio.

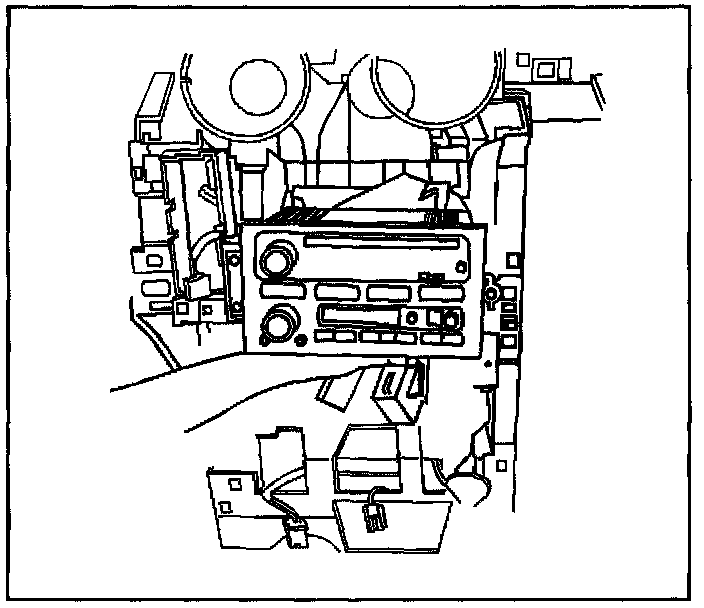

5. Remove the radio.

INSTALLATION PROCEDURE




1. Align the radio with the center steak and mounting holes.




2. Connect the electrical connectors and the antenna connectors from the rear of the radio.




3. Install the bolts that hold the radio to the instrument panel center stack.
4. Align the trim panel instrument panel center to instrument panel. Refer to Trim Panel Replacement Instrument Panel (I/P) Center in Instrument Panel, Gages arid Console.
5. Align and move the forward center console in place with the center console bracket. Refer to Console Replacement in Instrument Panel, Gages and Console.
6. Calibrate the new radio assembly. Refer to Service Programming System (SPS) in Programming.
