Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Front Door Latch

Front Door Latch

Door Latch Assembly - Driver:

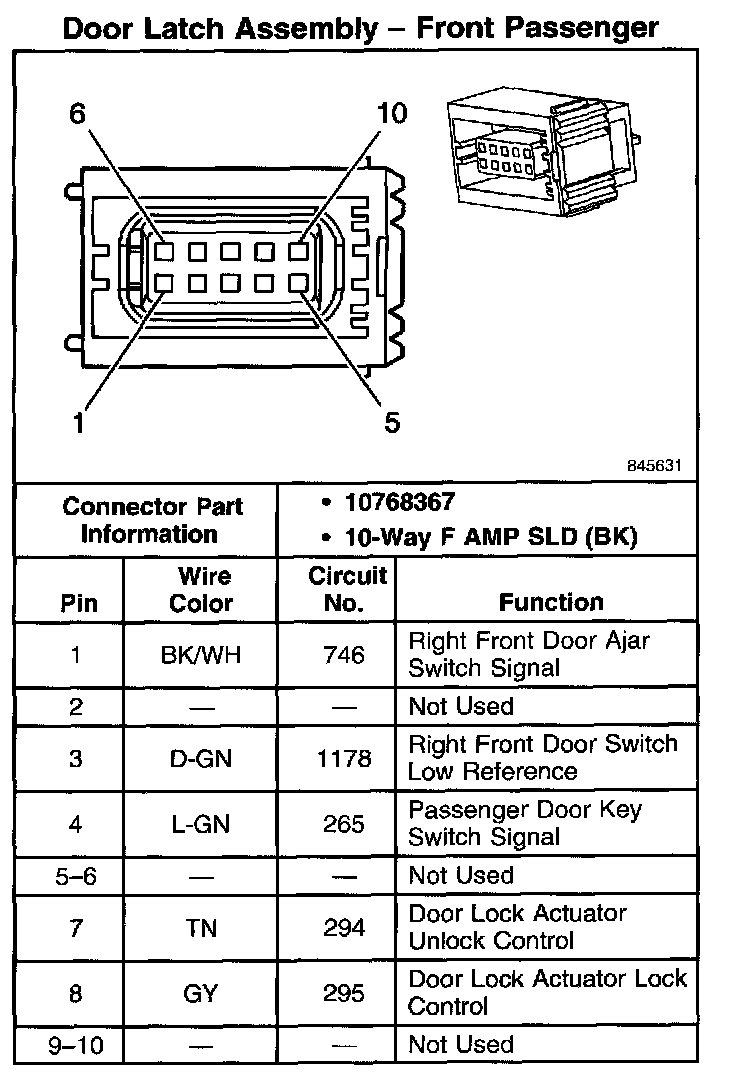

Door Latch Assembly - Front Passenger:
