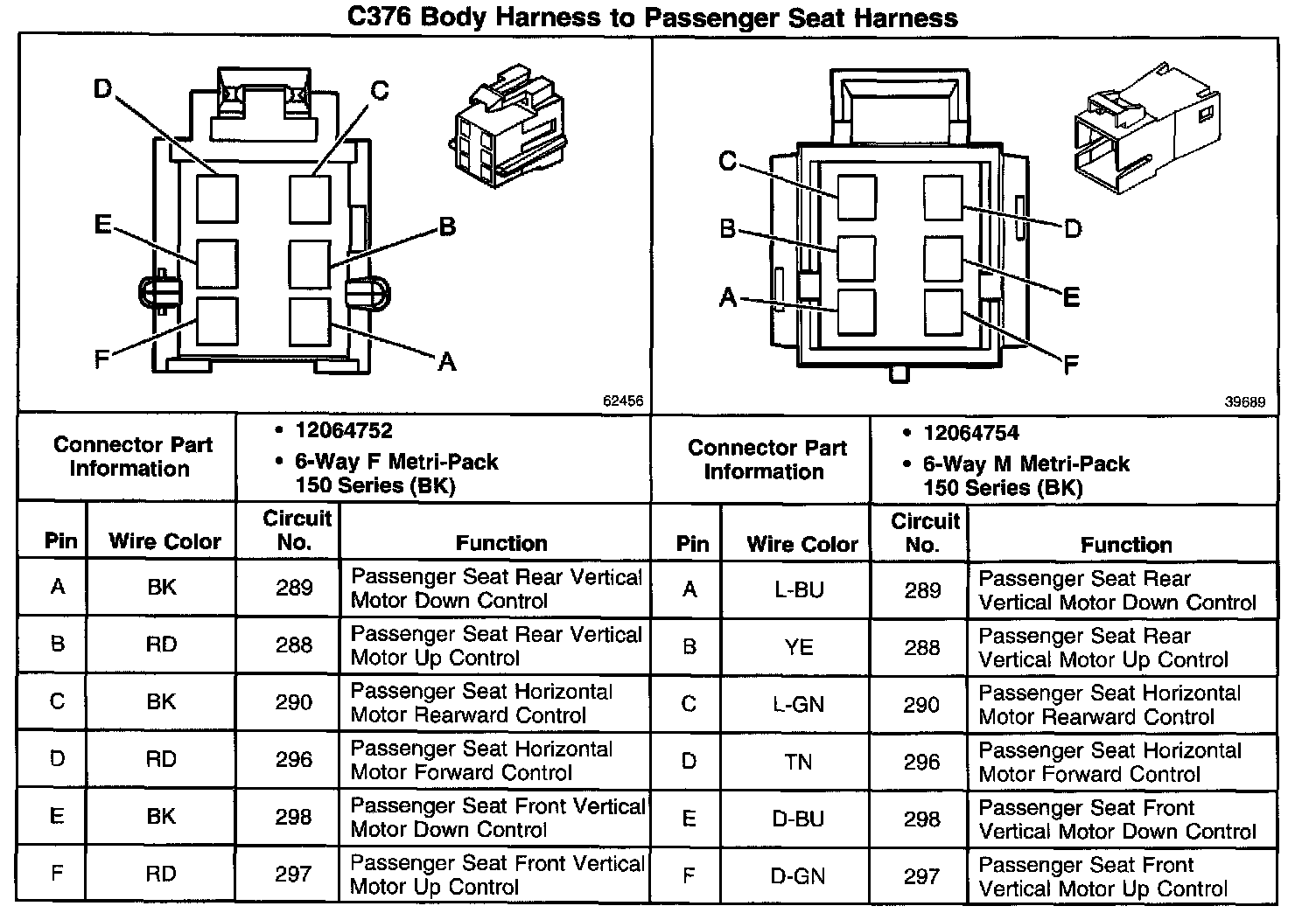

C376 Body Harness to Passenger Seat Harness
C376 Body Harness to Passenger Seat Harness
C376 Body Harness To Passenger Seat Harness:
