Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning

Heating and Air Conditioning

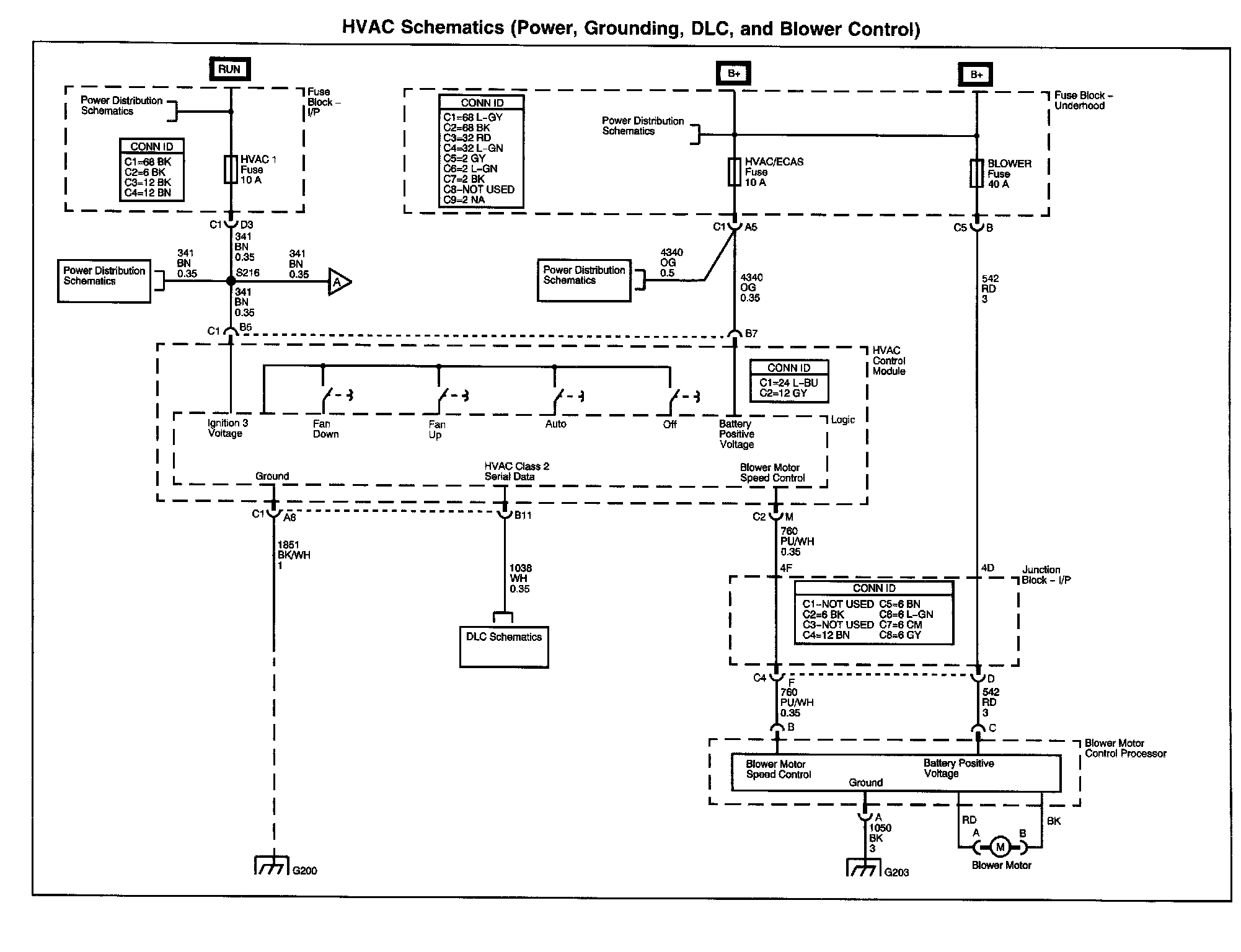

HVAC Diagram 1:




HVAC Diagram 2:




HVAC Diagram 3:




HVAC Diagram 4:




HVAC Diagram 5:
