Map Light: Service and Repair
READING LAMP AND BULB REPLACE - OVERHEAD CONSOLEREMOVAL PROCEDURE
1. Use a flat bladed tool and pop the reading lamp lens from the forward console.
2. Turn the bulb 1/4 turn and remove the bulb from the reading lamp socket.
3. Remove the overhead console.

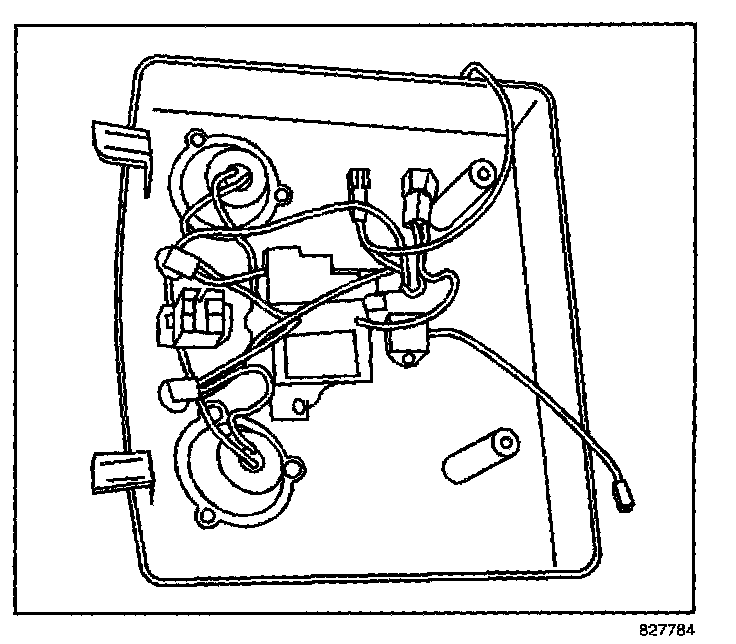

4. Disconnect the electrical connector from the reading lamp.

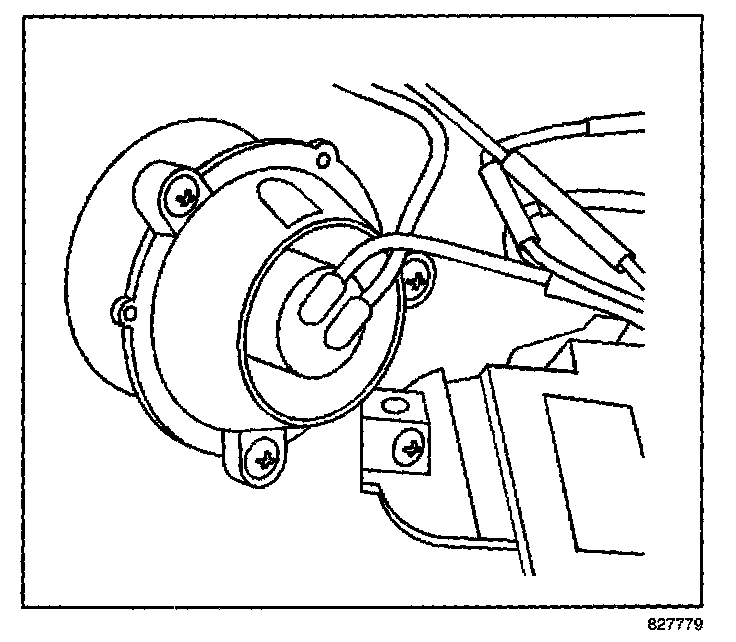

5. Remove the lamp socket assembly from the overhead console.
INSTALLATION PROCEDURE
NOTE: Refer to Fastener Notice in Service Precautions.
1. Fasten the new lamp socket to the overhead console.
Tighten
Tighten the screws to 2 N.m (18 lb in).
2. Connect the electrical connectors to the reading lamp.
3. Attach the overhead console to the headliner.
Tighten
Tighten the screws to 2 N.m (18 lb in).
4. Install the new bulb assembly to the overhead console.
5. Snap the lens for the reading lamp into place in the overhead console.
