Headlamps Inoperative - Low and High Beams (W/Front Wipers On)
Headlamps Inoperative - Low and High Beams (W/Front Wipers On)
Steps 1-3:

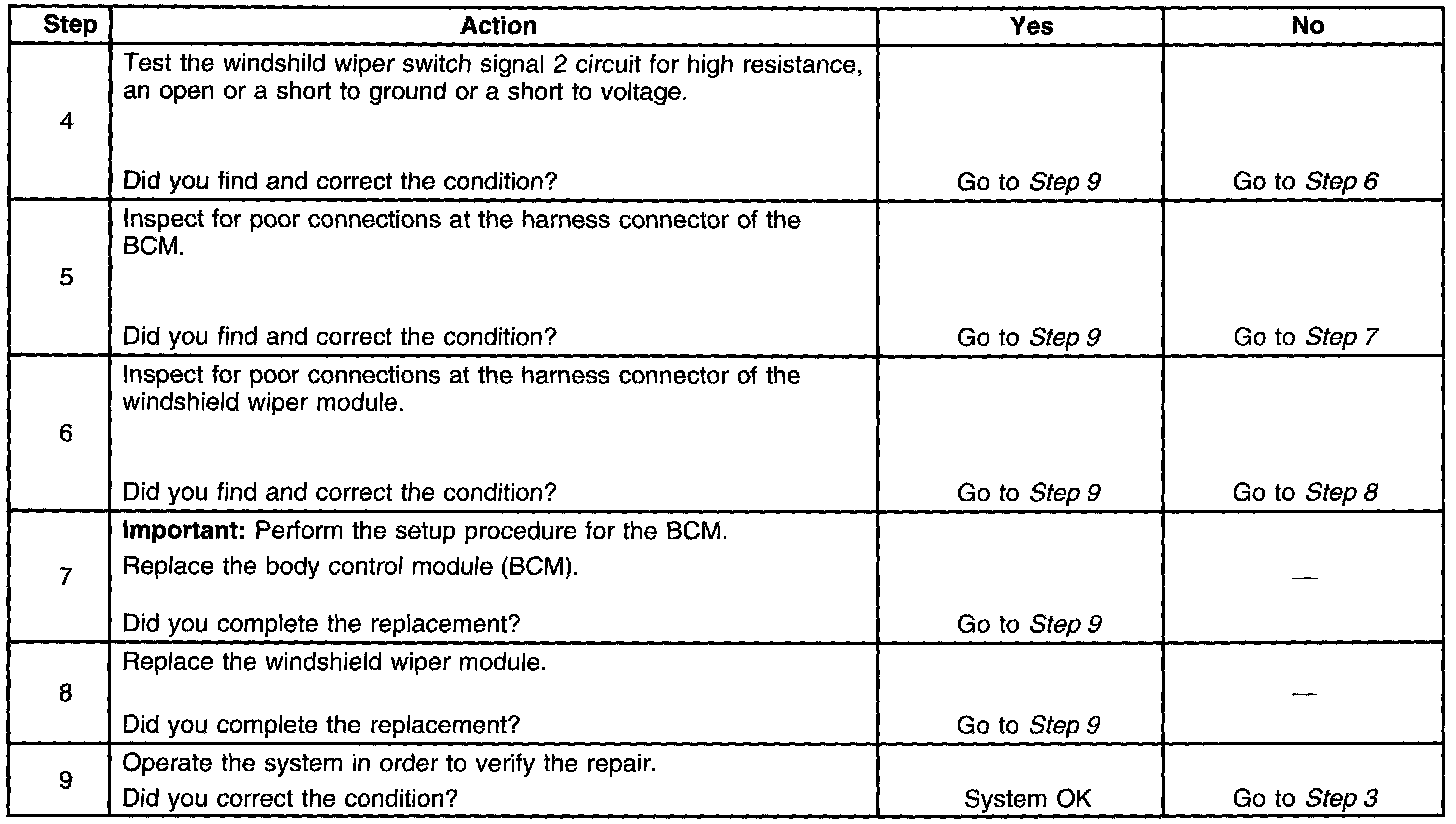

Steps 4-9:
