17. Low and Reverse Clutch Piston Removal

LOW AND REVERSE CLUTCH PISTON REMOVAL

TOOLS REQUIRED
- J 23327-1 Forward Clutch Spring Compressor (Bridge)
- J 34627 Snap Ring Remover and Installer
- J 42628 Disc

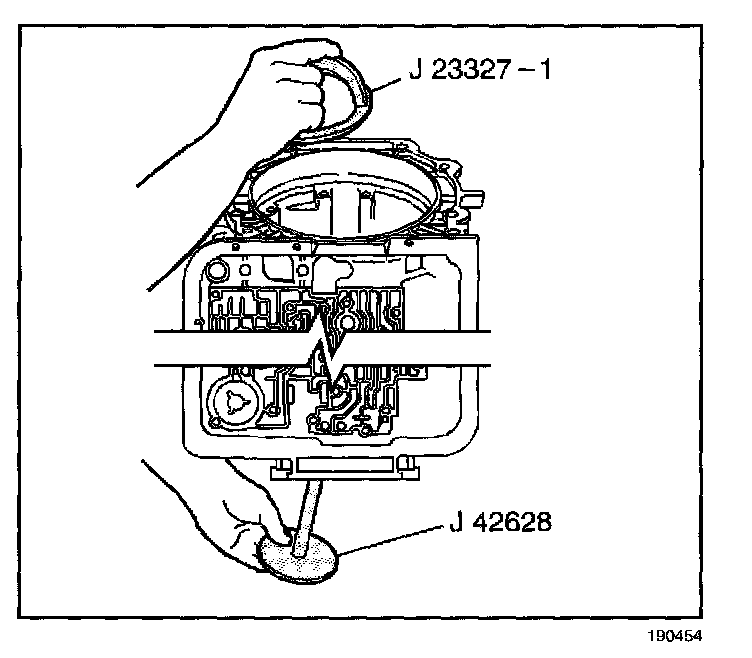

1. Install the J 23327-1 and the J 4262&




2. Tighten the J 23327-1.
3. Remove the low and reverse clutch retainer ring (693) using the J 34627
4. Remove the low and reverse clutch spring assembly (694).




5. Blow compressed air into the case passage to remove the low and reverse clutch piston (695).
- (1) LO Feed Passage
- (2) REV Feed Passage
