31. Reaction Carrier Shaft Replacement
REACTION CARRIER SHAFT REPLACEMENTREMOVAL PROCEDURE
TOOLS REQUIRED
- J 23907 Slide Hammer with Bearing Adapter
- J 25019-14 Stator Pump Bushing Remover
- J 29369-2 Bushing and Bearing Remover 2-3 in
- J 7004-1 Universal Remover
1. Remove the reaction carrier shaft/internal gear retainer (668) and the reaction carrier shaft (666) from the input internal gear (664).
2. Inspect the reaction carrier shaft (666) and the input internal gear (664) for the following defects:
- Scoring
- Cracking
- Damaged or worn bushings
- A cracked shaft
- A damaged spline
- Damaged gear teeth
3. Using J29369-2 with J23907, remove the reaction carrier shaft front bushing (665).

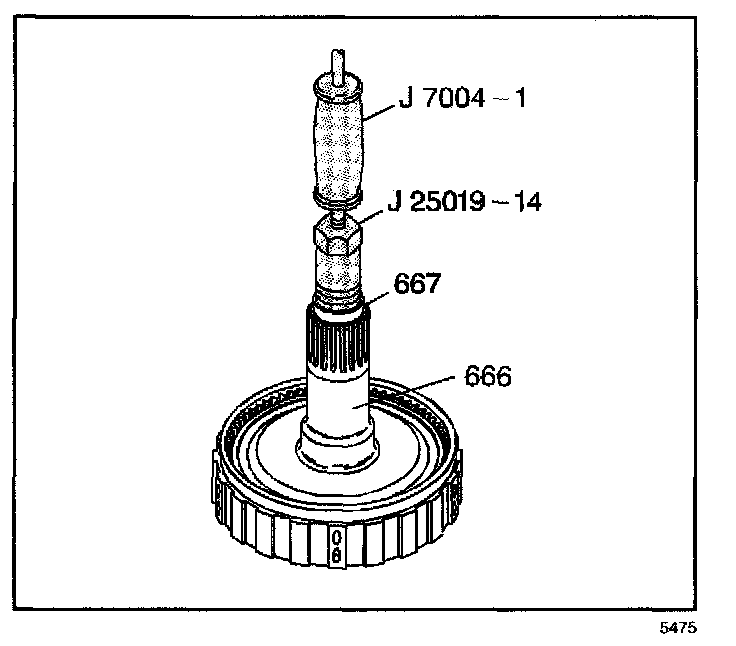

4. Using J25019-14 with J 7004-1, remove the reaction carrier shaft rear bushing (667).
INSTALLATION PROCEDURE
TOOLS REQUIRED
- J 34196-B Transmission Bushing Service Set
- J 8092 Universal Driver Handle - 3/4 in - 10
1. Using J 34196-3 which is part of kit J 34196-B with J 8092, install a new reaction carrier shaft front bushing (665).
2. Using J 34196-3 which is part of kit J 34196-B with J 8092, install a reaction carrier shaft rear bushing (667).
