Bracket Replacement - Cargo Tie Down Loop

Bracket Replacement - Cargo Tie Down Loop

Removal Procedure

1. Open the spare tire carrier.
2. Open the endgate.
3. Cycle the midgate window to the full down/open position.
4. Open the midgate.
5. Release the midgate weatherstrip from the front edge of the cargo floor liner.




6. Remove the bolts (1) securing the cargo box loops and liner to the floor.
7. Remove the cargo liner from the vehicle.
8. Invert the cargo floor liner.

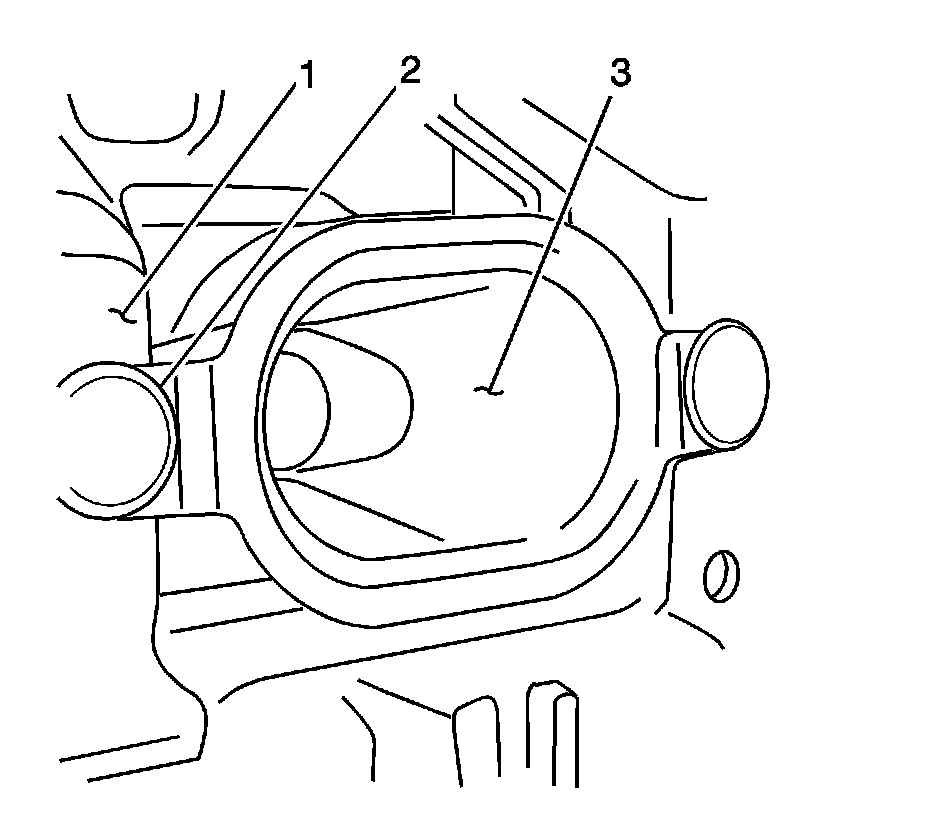

9. Remove the push-in retainers (2) from the bracket (3) and discard.
10. Remove the bracket (3) from the floor liner (1).



Installation Procedure





1. Install the bracket (3) to the floor liner (1).
2. Install the new push-in retainers (2).




3. Position the cargo box liner to the floor.
4. Install the cargo tie down loops (2).

Notice: Refer toFastener Notice in Cautions and Notices.

5. Install the bolts (1).

Tighten the bolts to 10 Nm (89 lb in).

6. Reposition the midgate weatherstrip to the front edge of the cargo floor liner.
7. Close the midgate.
8. Cycle the window to the closed position.
9. Close the endgate.
10. Latch and secure the spare tire carrier.
