C105

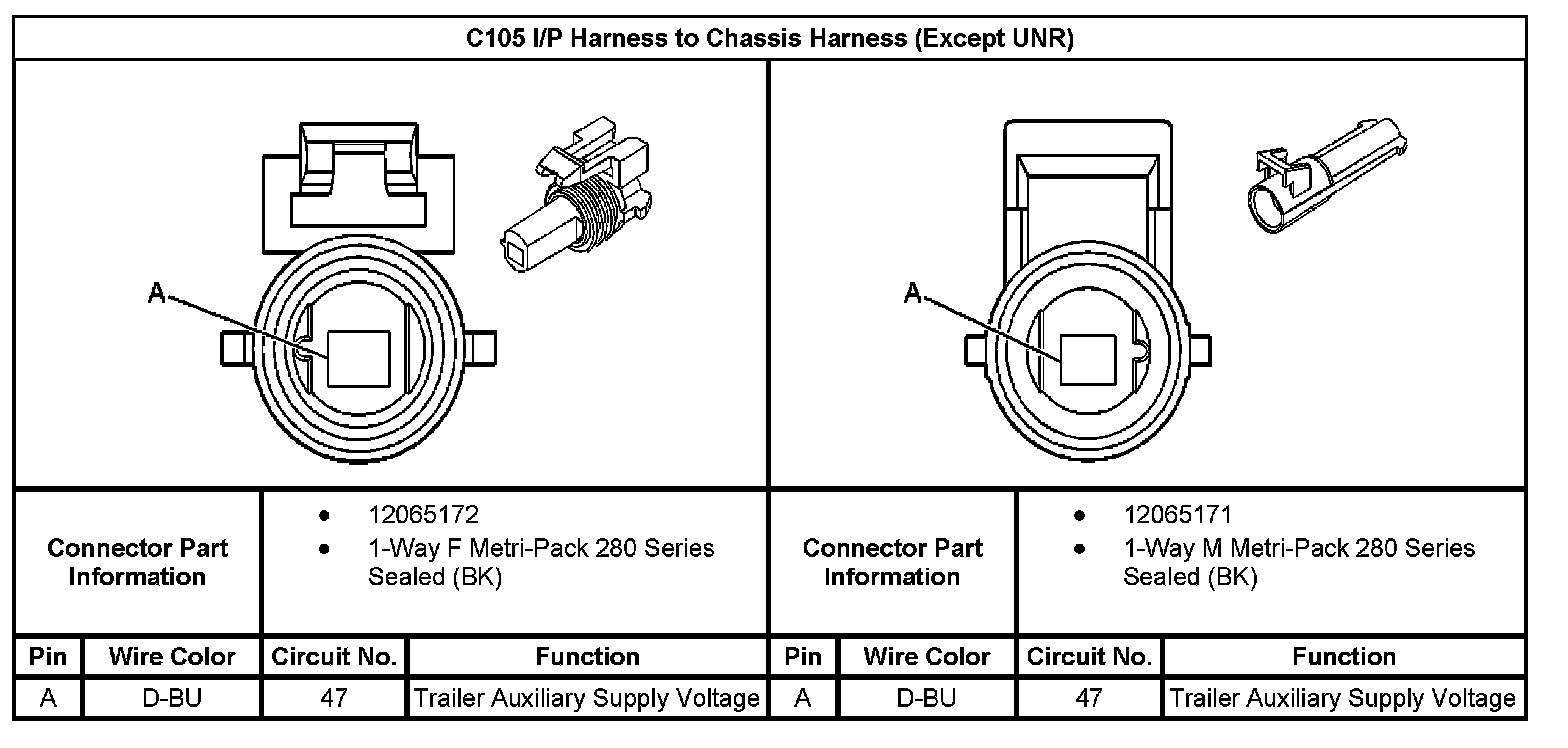

C105 I/P Harness To Chassis Harness (Except RPO Code UNR):
C105 I/P Harness To Grille Brushguard Lamp Harness (With RPO Code UNR):
