Ignition Coil



Ignition Coil #1:




Ignition Coil #2:




Ignition Coil #3:




Ignition Coil #4:




Ignition Coil #5:




Ignition Coil #6:




Ignition Coil #7:

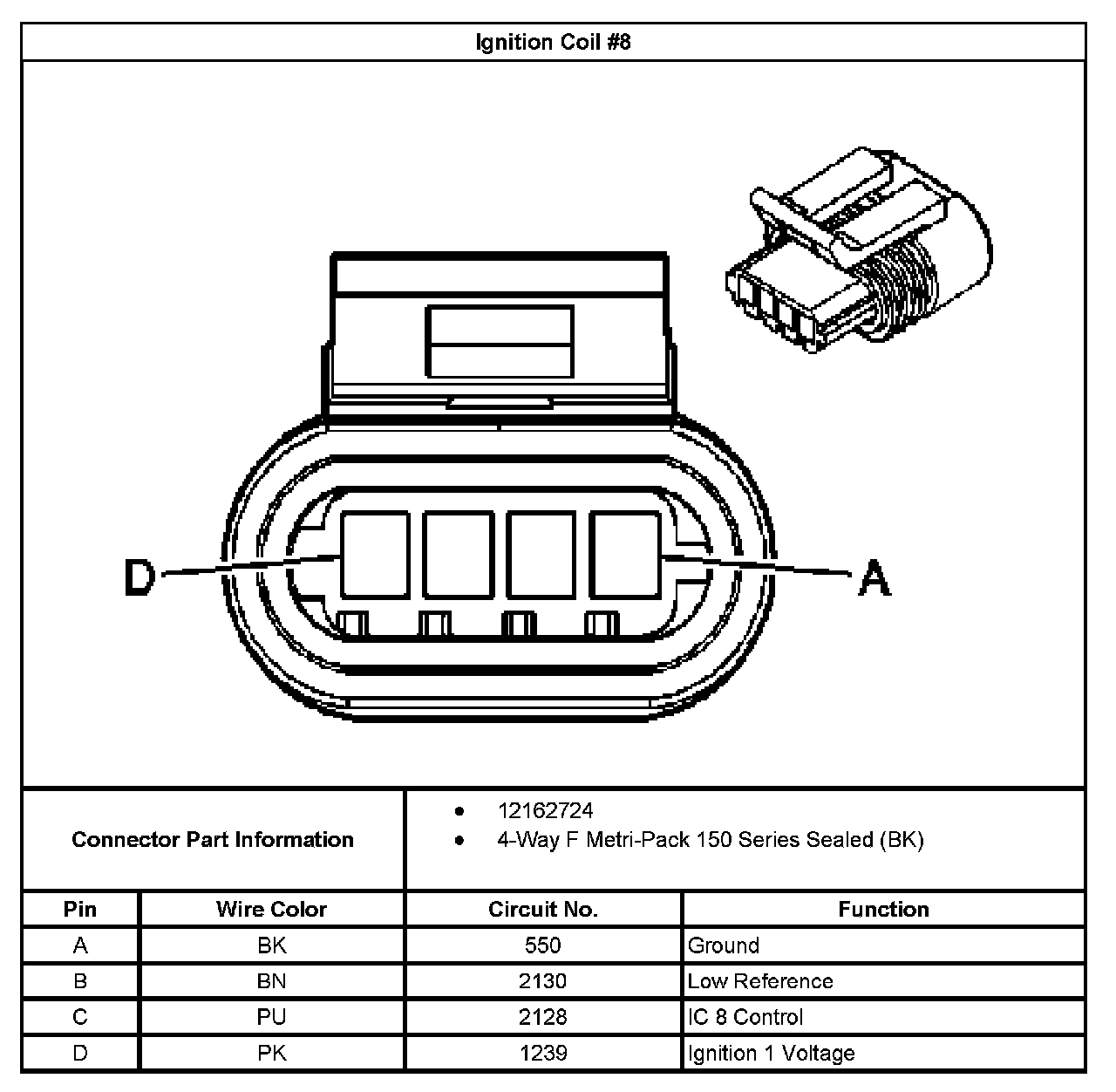

Ignition Coil #8:
