Home
>>
Hummer
>>
2005
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Mode Switch, A/T
Transmission Mode Switch, A/T

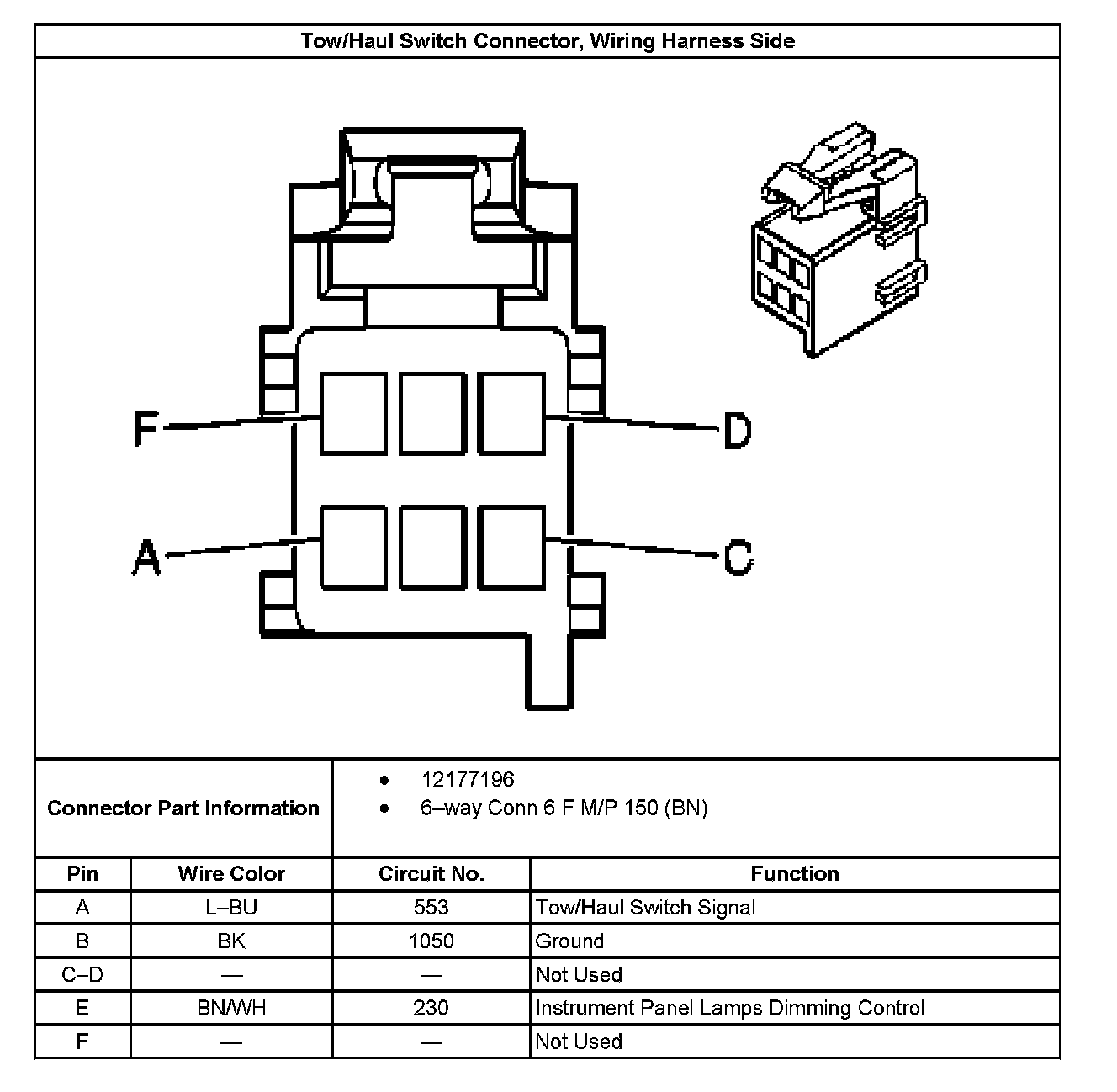

Tow/Haul Switch Connector, Wiring Harness Side:
