Door Replacement - Console Compartment Center

DOOR REPLACEMENT - CONSOLE COMPARTMENT CENTER

REMOVAL PROCEDURE
1. Lift compartment door.
2. Remove the console storage bin.

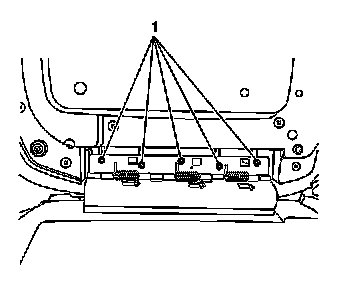

3. Remove the screws (1) holding compartment door to center console.

INSTALLATION PROCEDURE




1. Align compartment door to center console.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the compartment door hinge screws (1).

Tighten the screws to 2 N.m (18 lb in).

3. Install the storage bin.
4. Close compartment door and check alignment for latch assembly.
