Underhood Lamp: Service and Repair

UNDERHOOD LAMP REPLACEMENT

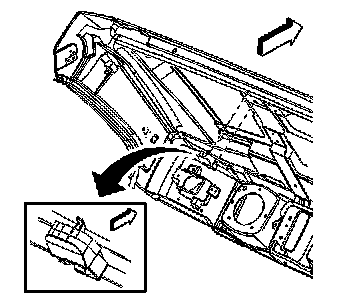

REMOVAL PROCEDURE
1. Open the hood.




2. Disconnect the electrical connector.
3. Depress the locking tab at the bottom of the lamp to disengage.
4. Tilt the lamp to disengage the top hook from the hood.
5. Remove the lamp from the hood.

INSTALLATION PROCEDURE
1. Position the lamp to the hood.




2. Tilt the lamp to engage the top hook to the hood.
3. Apply light pressure at the bottom of the lamp to engage the retaining clip.
4. Connect the electrical connector.
5. Close the hood.
